High Quality Self-supporting Bow-type FTTH Drop Cable for Fiber Solution

Detailed Product Description

1. Design for FTTX use,  2. FRP/Steel strength member  3. Flame retardant LSZH cable jacket

Applications

1. Used as access building cable;

2. Used in indoor cabling, especially used for FTTH.

Features

1. Good mechanical and environmental characteristics;

2. Flame retardant characteristics meet the requirements of relevant standards;

3. The mechanical characteristics of jacket meet the requirements of relevant standards;

4. Soft, flexible, easy to lay and splice, and with big capacity data transmission;

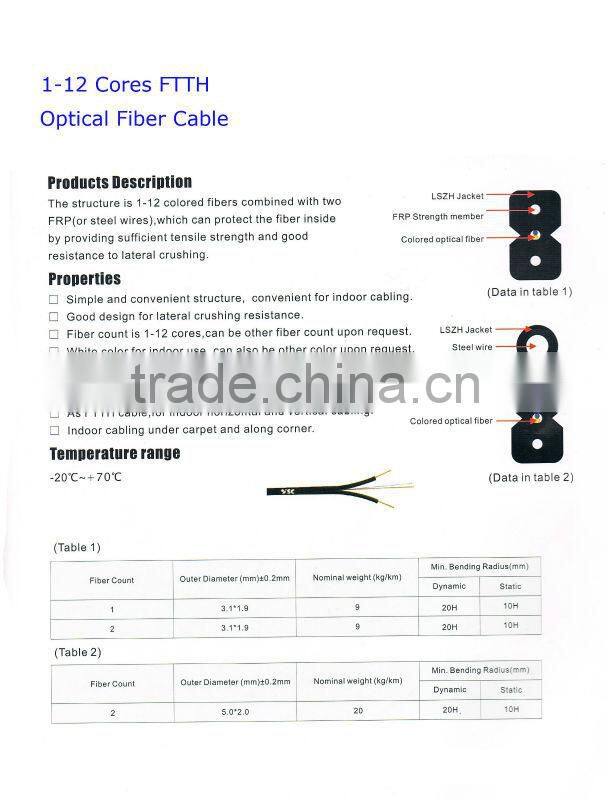

Cable Parameters

Note: 1. All the values in the table, which are for reference only, are subject to change without notice;

          2. The cable core use the colored coating fiber of 250μm;

          3. H is height of the flat cable;

         4. The tensile and crush of the cable are accordance with the values in the table when the strength member of FRP and Steel are used;

          5. The minimum bend radius (static) is 5H when G657 fiber is used.

Options

1. Fiber Type: G652, G655 or G657 single-mode fiber, A1a or A1b multi-mode fiber, or other types of fiber;

2. Jacket Material: Environmental flame-retardant polyvinyl chloride (PVC), environmental low smoke zero halogen flame retardant polyolefin (LSZH), or other contracted material;

3. Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;

4. Cable Dimension: The nominal cable dimension, or other contracted dimension;
