Splitter Distribution Box Optical Mini Node
US$ 16.3 - 21.3
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HYG
Model Number:
HYG-01
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4 Ports Fiber Terminal Box Plstic Terminal BoxUS$ 4.5 - 25MOQ: 1 Piece -
sc fc st lc 4 Ports Fiber Terminal BoxUS$ 2 - 3MOQ: 100 Pieces
-
Mini 4 Ports Ftth Terminal Box for Indoor UseUS$ 2 - 3MOQ: 100 Pieces
-
Ftth Termination Box for TelicomUS$ 15 - 22MOQ: 10 Pieces
-
Ftth Outdoor Terminal Box for TelicomUS$ 15 - 22MOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
HYG
Model Number
HYG-01
Type
Other, indoor and outdoor
Specifications
optical mini node1.340mm*255mm*100mm
2.SC
3.indoor or outdoor
4.IP55

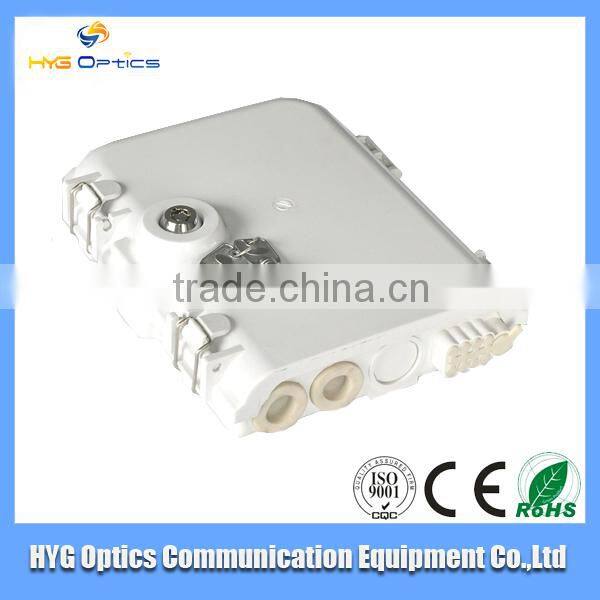

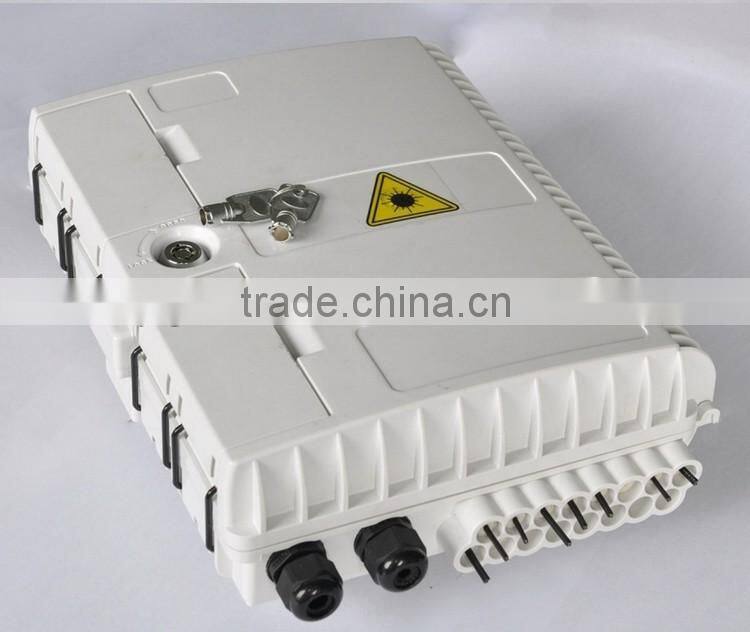

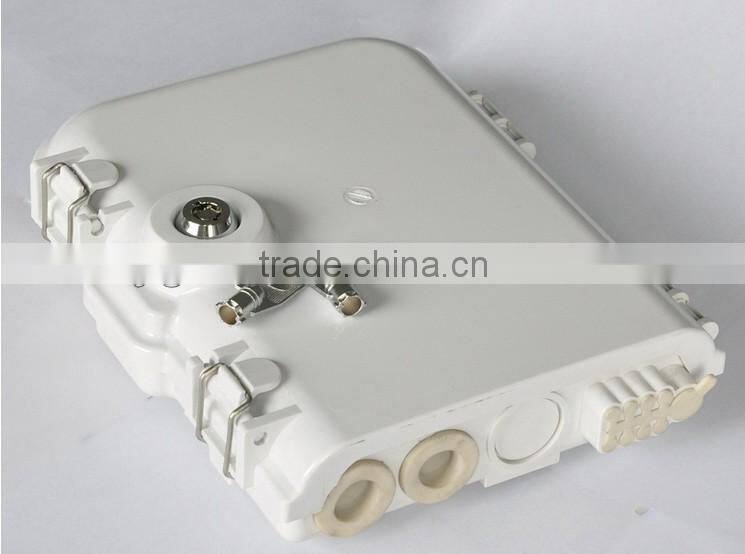

Splitter distribution box optical mini node
Application
HYG-01 is used for connecting optical cable with various equipments in FTTX optical access network node. In FTTH application, it is applied to the second stage splitter point of optical fiber network. Optical cable can be connected by fusion or mechanical jointing method after introduction into the box. It is possible to realize cable termination, splitting and distribution function conveniently.
Feature
- Optical fiber distribution and splitting box is composed by cabinet body, splicing tray, splitting module and accessories.
- The body is made of cold-rolled steel, electrostatic spraying surface with small size, light weight and good-looking appearance
- The box has two layers. The outer layer is composed with mounting unit for splitter and cable management parts. The inner layer is equipped by splicing tray and cable storage unit for pass-though riser cable.
- Modularized structure without jumping fiber, It may expanse capacity flexibly by increasing splitter installed module.
- The module with different ports capacity is universal used and interchangeable. In addition, it is equipped splicing tray, used for riser cable termination and cable branch connection
- Operating condition: temperature -40°C~+60°C;Relative humidity ≤95%(+40°C)
Dimension and capacity
Type |
Dimension (mm) |
Slot number |
Splitter
|
HYG-01 |
H350×W340×D100 |
2 |
2pieces of 1×4 splitter /or 2pieces of 1×8splitter Or 1 piece of 1×16splitter |
HYG-02 |
H480×W350×D100 |
4 |
4 pieces of 1×4splitter /or 4 pieces of 1×8 splitter Or 2 pieces of 1×16splitter/or 1 pieces of 1×32splitter |
