Home > Products > Optical termical box > 4 Ports Fiber Terminal Box Plstic Terminal Box
4 Ports Fiber Terminal Box Plstic Terminal Box
- shenzhen
- T/T Money Gram Credit Card
You May Like
-
sc fc st lc 4 Ports Fiber Terminal Box
-
Mini 4 Ports Ftth Terminal Box for Indoor Use
-
Ftth Termination Box for Telicom
-
Ftth Outdoor Terminal Box for Telicom
-
6 Port Fiber Optic Patch Panel ,6 Port Fiber Optic Terminal Box With sc Adapter
-
Supply the Fiber Optic 6 Core Terminal Box ,8 Port Terminal Box With sc Adapter
Product Details
| Place of Origin | Guangdong, China | Brand Name | HYG | |
| Model Number | HYG FOCS-24 |
1 pcs in a ctn
Product Description
Features :
Wall installation,space saving,easily installation
Light weight,high intensity,Good crashworthiness and dustproof
Clear management for the patch cord and easily find
Sufficient space can be ensure the fiber bending rate
Performance Index :
Maximum capacity 4 cores
SC,FC,LC,Suitable adaptor inte
1.5mm Material thickness
Size:150*110*30mm
Weight:0.2kg
Material:PC
Using temperature: -40-+75°C
Tensile strength: >50 N
Installing PLC Splitter Optical Characteristic
Common Splitter Specification
Parameter | Common Specification |
Wavelength Range(nm) | 1260-1650 |
Port Wavelength Range( nm) | 1310±20/1490±10/1550±25 |
Fiber Cable | Corning SMF-28e |
Return Loss(dB) | >=50 |
Directivity(dB) | >= 55 |
Max.Optical power input level(mW) | 500 |
Operation Temperature(°C) | -45C-85°C |
Storage Temperature(°C) | -45°C-85°C |
Port Display | Mark label |

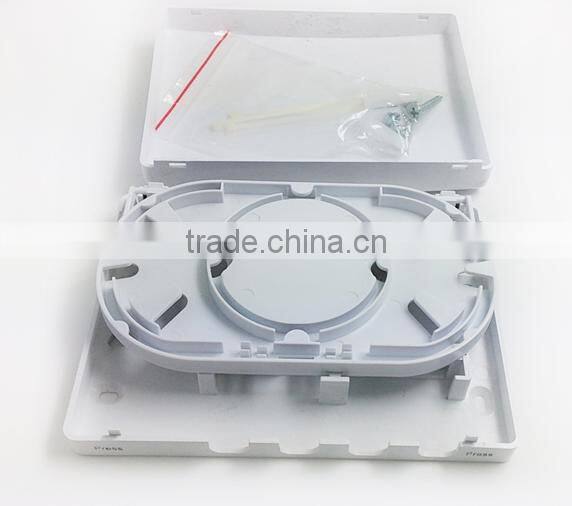

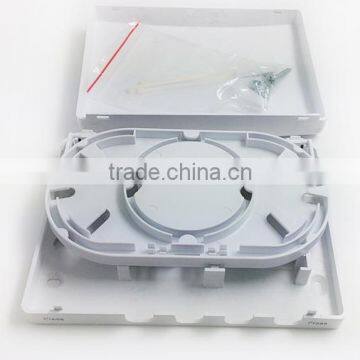

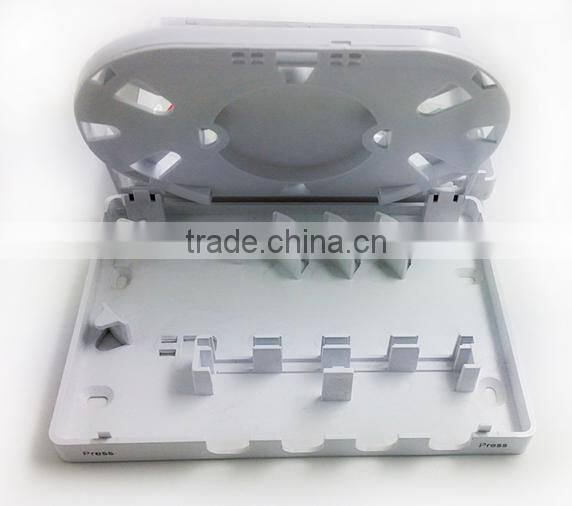

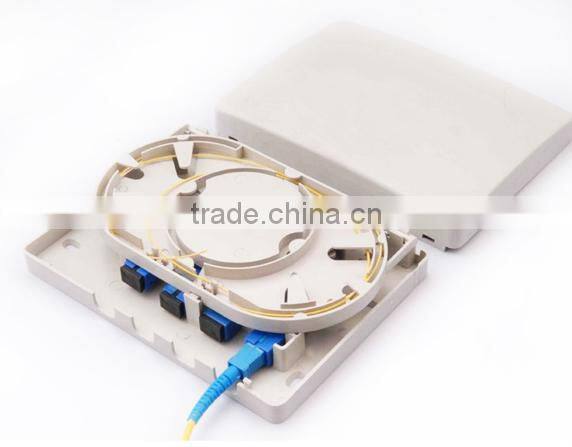

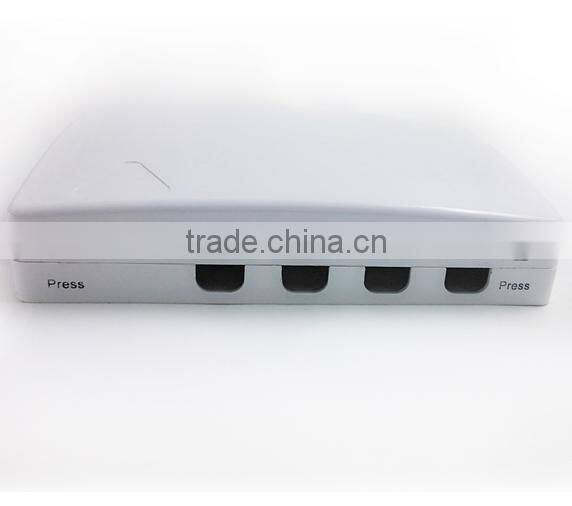

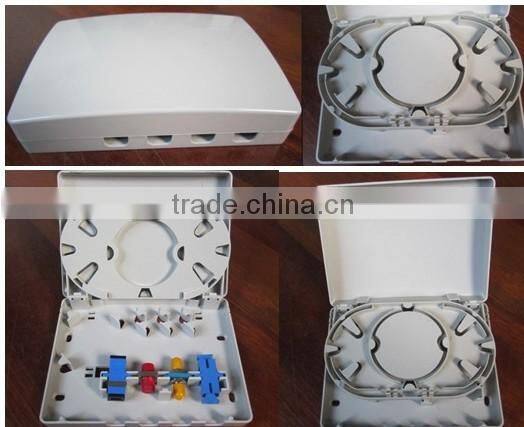

Product showing:
Company Profile
About HYG Optics The Haiyu Optics, founded in 2000, is focus on design and manufactured fiber optic communication products. It has developed a range of products including Indoor and outdoor optical cables, fiber optic jumpers, pigtails, connectors and adapters, network solution equipment like optic media converters, attenuators, tranceivers, optical models and other accessories. Widely used in telecom communication, mobile communication, network solution, radio and television, etc. HYG Quality Assurance Our ISO9001:2008 certified quality management systems have been refined for flexibility and efficiency, and produce a high quality, high reliability, low cost and diverse product range. Other quality system we complying with ISO14001, CE, Rohs and 5S system. Advanced high precision test equipment: Insertion and return loss tester, 3D Interferometer. The location The company is located in Shenzhen, near by Hongkong, enjoying the convenient transportation. Our products are exported to USA, Germany, France, Russia, the UAE, Indonesia and so on. For our long-term development, our company cooperates with Corning, OFS, YFOC, CCTC, etc. Our mission QUALITY TO SURVIVE, INNOVATION FOR DEVELOPMENT.
