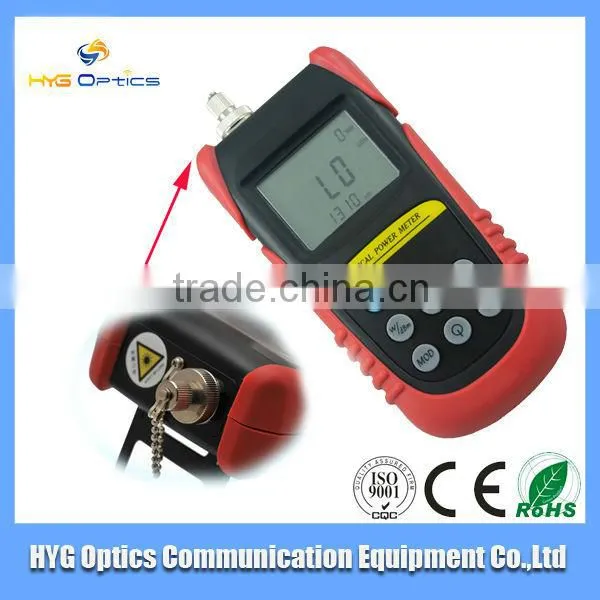

Handheld Fiber Power Meter Sing Mode and Multi Mode for Fiber TestingUS$ 2,400 - 2,800MOQ: 1 Piece
high quality otdr test cord for fiber testing for fiber testing .
It's mainly used to make up for the OTDR test blind area, central optical fiber without any weld joints, small volume, light weight, easy to carry.
Single mode and multimode (62.5/125)
A length of 500 m, 1 km, 2 km... 5 km (custom)
inster Loss is ≤0.5 dBm/km
Has excellent sealing performance, waterproof antifouling explosion-proof
Pulse suppressors, launch box, delay line, installation/testing, training, calibration
Positive sealing and easy open composite latch lock function
Non-metallic building not weaken, corrosion, or help to power
Water and dust proof, and allow the unit will be in almost any environment
Case can hold 2000 m fiber
Changes in altitude and temperature automatic flush valve
specification
Length x Width x Height |
9.37" x 5.56" x 2.62" |
Material |
SR Polypropylene |
Color |
Black/Yellow |
Weight |
0.75 kg (without fiber) |
Operating temperature |
-40° to +55°C |
Typical Loss |
< 0.5dB @ 1310nm for 1000 meters |
Order information
HYG-[A]-[B]-[C]-[D]
A = Input connector |
B = Output connector |
C = Fiber |
D = Length(km) |
FC |
FC |
S – Single mode fiber |
|
ST |
ST |
M6 – Multi mode fiber (62.5/125) |
|
SC |
SC |
M5 – Multi mode fiber (50/125) |
|
FCA – FC/APC |
FCA – FC/APC |
|
|
SCA – SC/APC |
SCA – SC/APC |
|
|
D4 |
D4 |
|
|
LC |
LC |
|
|
MU |
MU |
|
|
Pls contact me if you have anydemand.My skype id : sophiahyg.
