Specifications
otdr test line1.single mode and multi mode
2.500 m, 1 km, 2 km... 5 km
3.inster Loss less than 0.5 dBm/km
4.waterproof

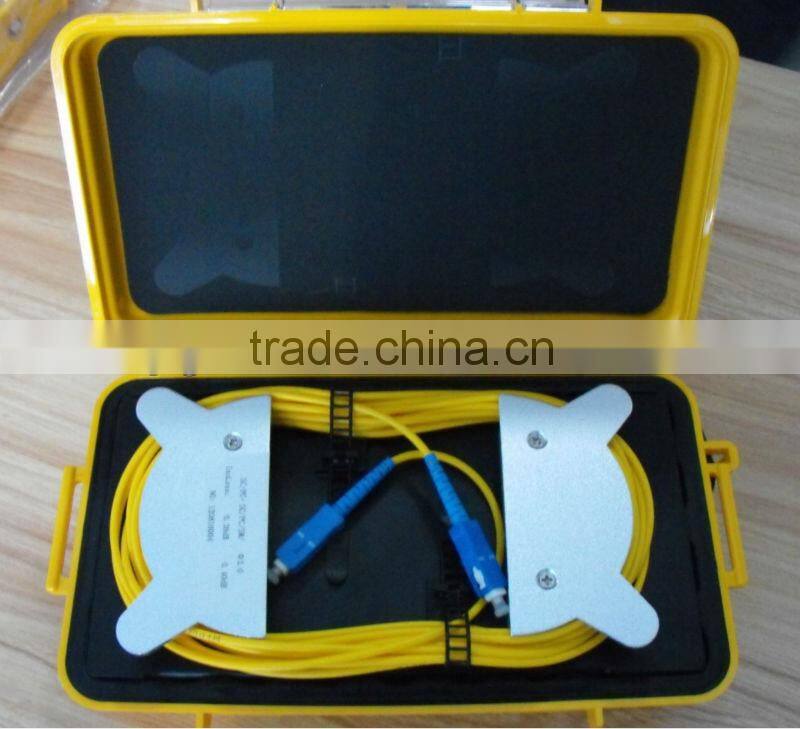

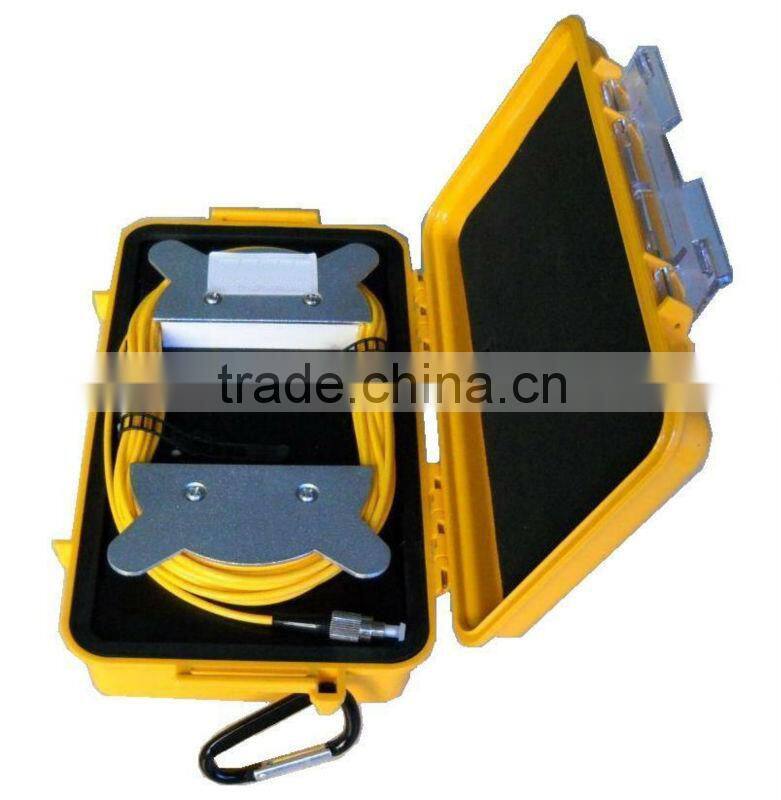

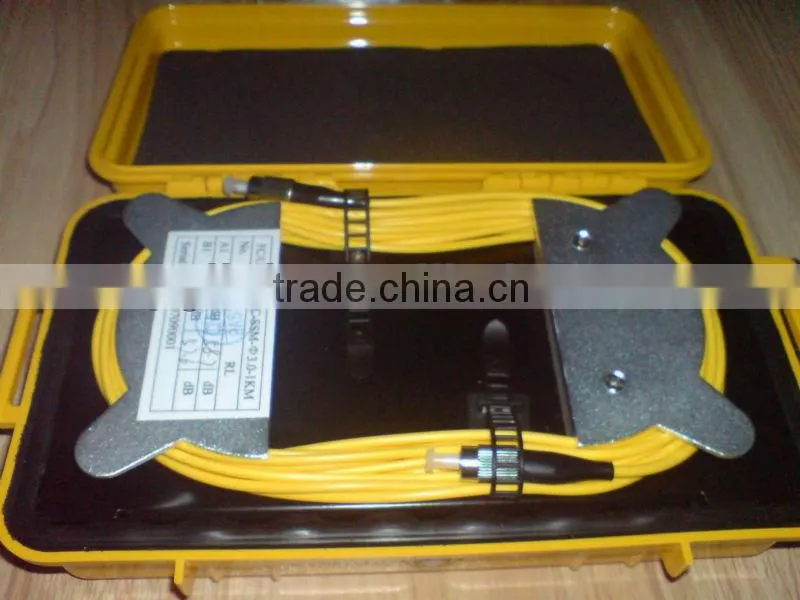

high quality otdr test line for fiber testing
It's mainly used to make up for the OTDR test blind area, central optical fiber without any weld joints, small volume, light weight, easy to carry.
Single mode and multimode (62.5/125)
A length of 500 m, 1 km, 2 km... 5 km (custom)
inster Loss is ≤0.5 dBm/km
Has excellent sealing performance, waterproof antifouling explosion-proof
Pulse suppressors, launch box, delay line, installation/testing, training, calibration
Positive sealing and easy open composite latch lock function
Non-metallic building not weaken, corrosion, or help to power
Water and dust proof, and allow the unit will be in almost any environment
Case can hold 2000 m fiber
Changes in altitude and temperature automatic flush valve
specification
Length x Width x Height | 9.37" x 5.56" x 2.62" |
Material | SR Polypropylene |
Color | Black/Yellow |
Weight | 0.75 kg (without fiber) |
Operating temperature | -40° to +55°C |
Typical Loss | < 0.5dB @ 1310nm for 1000 meters |
Order information
HYG-[A]-[B]-[C]-[D]
A = Input connector | B = Output connector | C = Fiber | D = Length(km) |
FC | FC | S – Single mode fiber |
|
ST | ST | M6 – Multi mode fiber (62.5/125) |
|
SC | SC | M5 – Multi mode fiber (50/125) |
|
FCA – FC/APC | FCA – FC/APC |
|
|
SCA – SC/APC | SCA – SC/APC |
|
|
D4 | D4 |
|
|
LC | LC |
|
|
MU | MU |
|
|
