Best Security H.264 CCTV IP Camera 720P 4CH Kit NVR Poe

Best Security H.264 CCTV IP Camera 720P 4CH Kit NVR Poe thumbnail-1
Best Security H.264 CCTV IP Camera 720P 4CH Kit NVR Poe photo-1
US$ 240 - 250 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
joney
Model Number:
NVR-Kits02 poe, NVR-Kits02 poe
Contact Supplier Request Quote Chat Now
Shenzhen Joney Security Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name joney
Model Number NVR-Kits02 poe, NVR-Kits02 poe

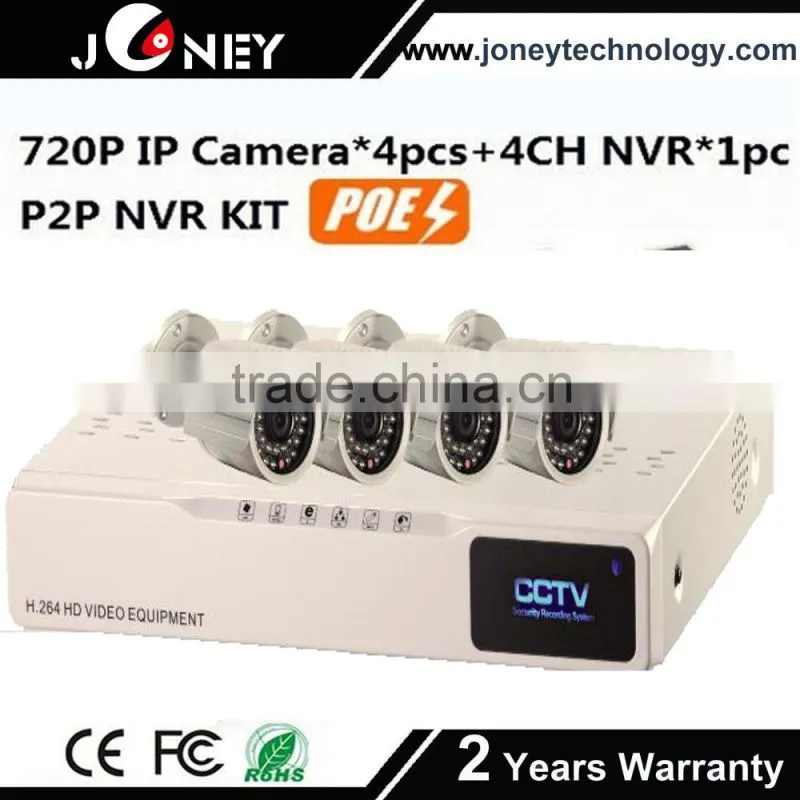

Best Security H.264 CCTV IP Camera 720P 4CH  Kit NVR poe





Product Description



 IP Camera:Hi 3518C+ OV9712

1) Dual stream encoding / H.264 compression mode

2) 1/4"-inch OV9712 CMOS, 4mm fixed lens
3) Night vision :20m(36pcs leds)
4) 1MP:1280*720 D1:640*480 CIF:320*240

NVR :Hi 3520A

1) Support 4CH 720P/2CH 1080P realtime viewing and recording;
2) Support 4CH 720P/1CH 1080P playback;
3) Support 1CH BNC/VGA/HDMI output;
4) Support 1CH audio/alarm output;
5) USB*2;
6) support 1 SATA HDD,max capacity 2T





Specification



  NVR Specification
  Video Compression H.264 Video Compression Format
  Video Input 4ch 720P(1.0Megapixel)

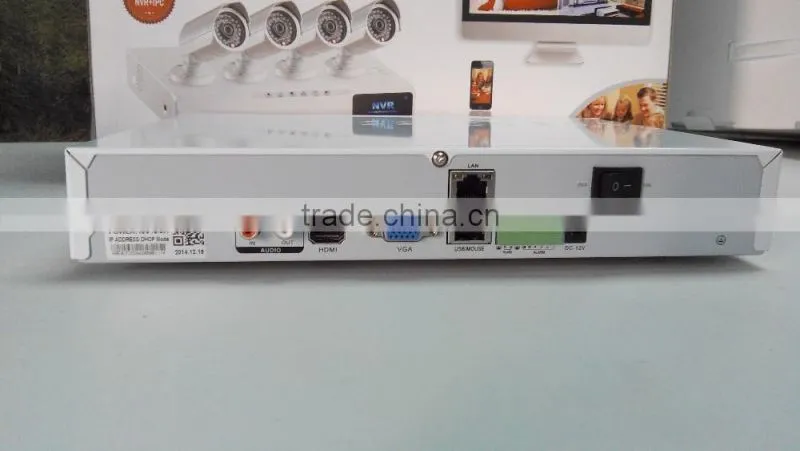

  Video output 1ch HDMI,1ch VGA,1ch CVBS
  VGA 1280x720,640x480
  HDMI 1920x1080P
  Display Mode Quad,Single Channels,Auto-switch and Hidden
  Live Display 720P: 1280*720 @ 30fps per Channel ; D1:640*480 @ 30fps per Channel
  Recording 720P: 1280*720 @ 30fps per Channel ; D1:640*480 @ 30fps per Channel
  Playback 720P: 1280*720 @ 30fps per Channel ; D1:640*480 @ 30fps per Channel
  Record Modes Motion Activated,Continuous and Time Schedule,Alarm
  Support HDD 1*3TB Hard Disk
  Backup USB2.0 Video Backup
  Alarm 4CH Input,1CH Output
  Audio In/Out 1CH RCA
  PTZ function Yes
  Controller & Mouse Yes

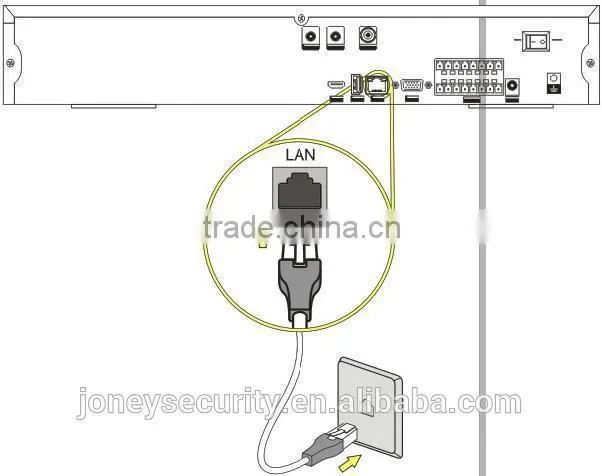

  Network Interface RJ45,10M/100M
  Network Protocol TCP/UDP/DHCP/DDNS/PPPOE/UPNP/ONVIF
  Operatin System PC / MAC /Smart Phones
  Browser IE 7/8/9/10,Firefox
  Operation Temperature 40°F--75°F
  Power Supply DC 12V/2A
  Dimensions(L*W*H) 315*274*45mm(L*W*H)

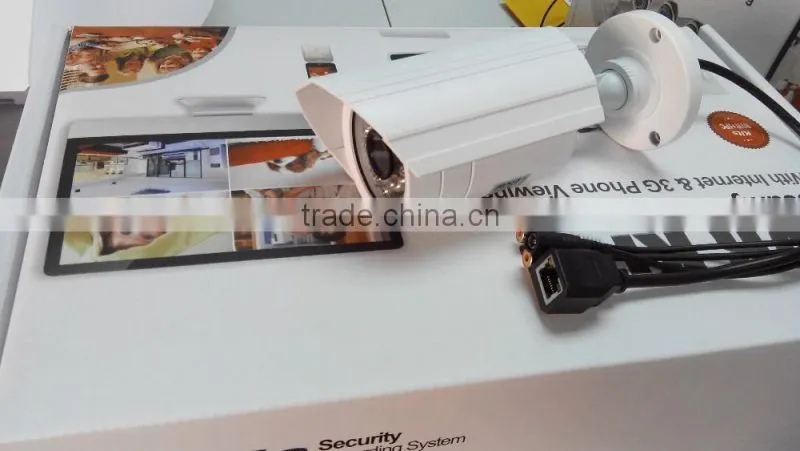

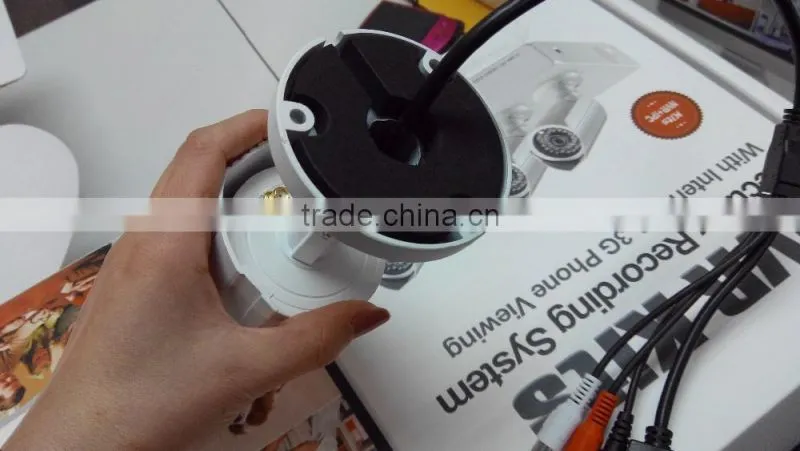

  Camera Specification
  Image Sensor 1/4 CMOS
  Resolution 1280*720(1MP)
  Number of LEDs 36 pcs IR lights
  Length of Night Vision 20M View Distance
  Lens Type 3.6mm Fixed Lens
  Weatherproof Rating IP67
  Length of Cable 810mm
  S/N Ration >50DB
  Minimum Illumination 0.5LUX
  Effective Pixels 1280*720(1.3MP)
  Power Supply DC 12V
  Operating Temperature -10°C-+60°C
  Dimensions 69*189mm(D*L)

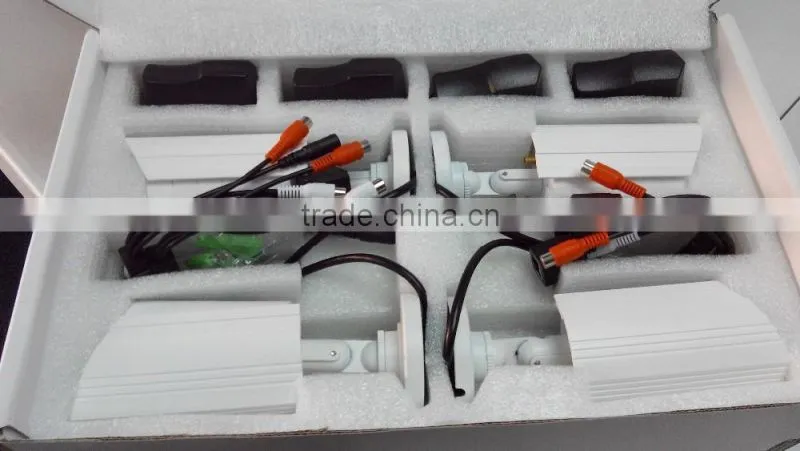

Photo shop

 Best Security H.264 CCTV IP Camera 720P 4CH Kit NVR poeBest Security H.264 CCTV IP Camera 720P 4CH Kit NVR poeBest Security H.264 CCTV IP Camera 720P 4CH Kit NVR poeBest Security H.264 CCTV IP Camera 720P 4CH Kit NVR poe

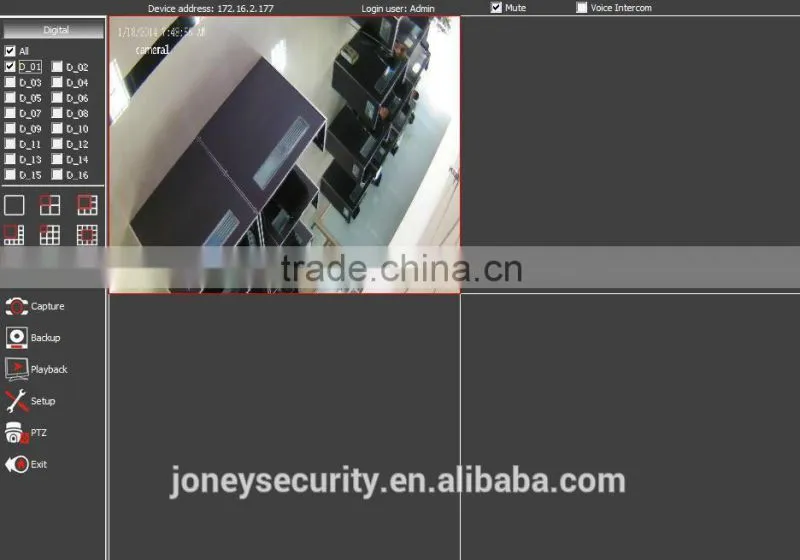

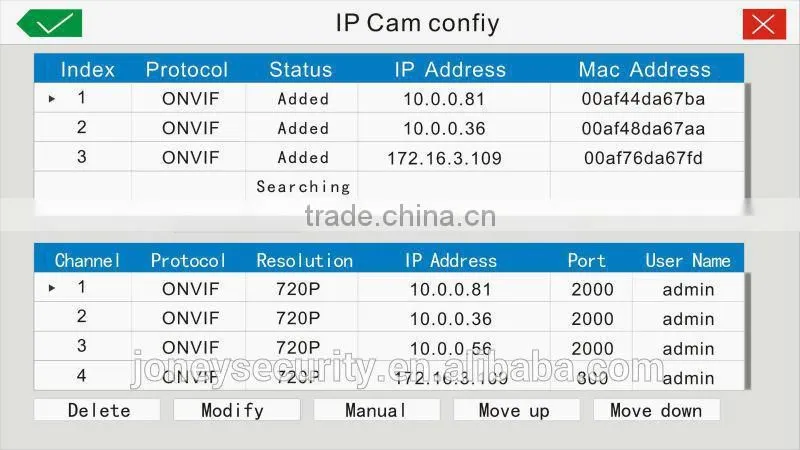

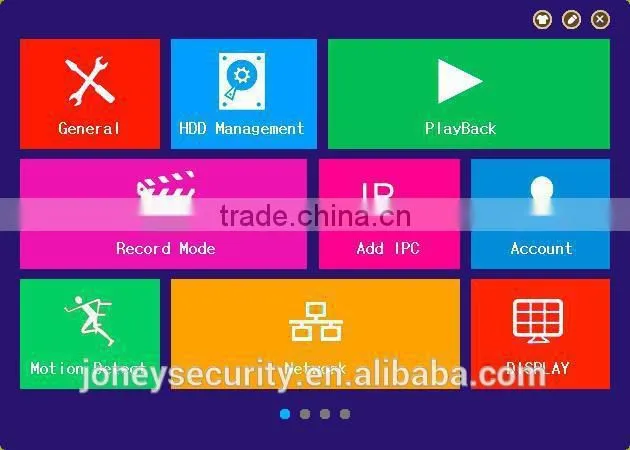

Software

 Best Security H.264 CCTV IP Camera 720P 4CH Kit NVR poe

 Best Security H.264 CCTV IP Camera 720P 4CH Kit NVR poeBest Security H.264 CCTV IP Camera 720P 4CH Kit NVR poeBest Security H.264 CCTV IP Camera 720P 4CH Kit NVR poe



Our Services

 Best Security H.264 CCTV IP Camera 720P 4CH Kit NVR poeBest Security H.264 CCTV IP Camera 720P 4CH Kit NVR poe





Trading Progress

 Best Security H.264 CCTV IP Camera 720P 4CH Kit NVR poe
