2015 Best Price H.264 720P 4ch Wifi Nvr Kit

2015 Best Price H.264 720P 4ch Wifi Nvr Kit thumbnail-1
2015 Best Price H.264 720P 4ch Wifi Nvr Kit thumbnail-2
2015 Best Price H.264 720P 4ch Wifi Nvr Kit thumbnail-3
2015 Best Price H.264 720P 4ch Wifi Nvr Kit thumbnail-4
2015 Best Price H.264 720P 4ch Wifi Nvr Kit thumbnail-5

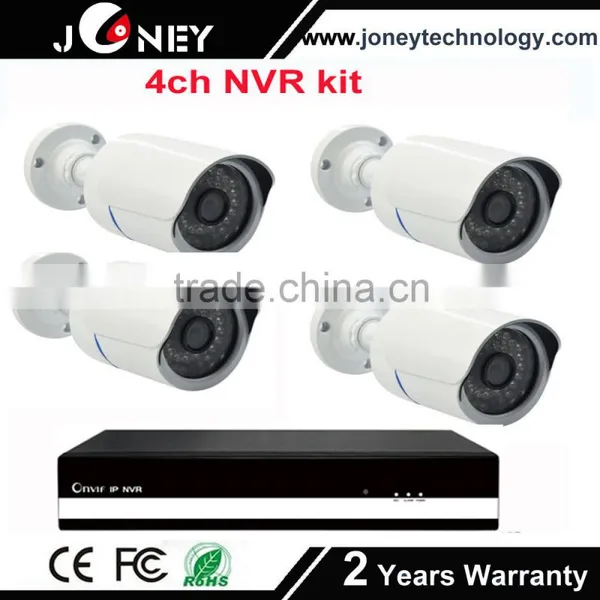

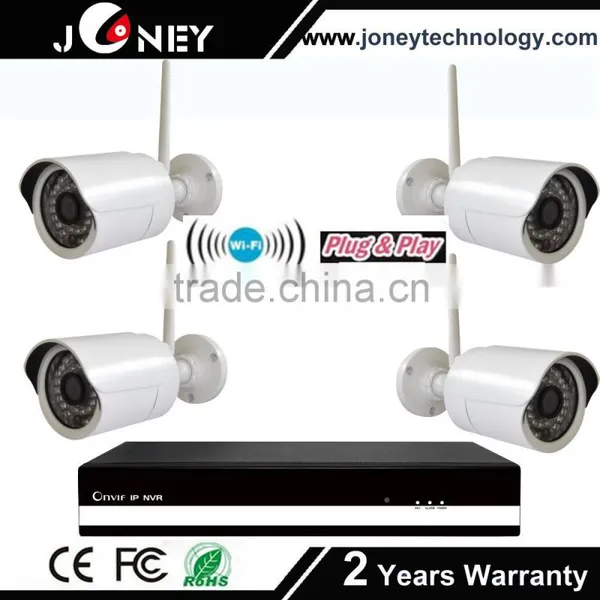

2015 Best Price H.264 720P 4ch Wifi Nvr Kit photo-1
2015 Best Price H.264 720P 4ch Wifi Nvr Kit photo-2
2015 Best Price H.264 720P 4ch Wifi Nvr Kit photo-3
2015 Best Price H.264 720P 4ch Wifi Nvr Kit photo-4
2015 Best Price H.264 720P 4ch Wifi Nvr Kit photo-5
US$ 200 - 210 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
joney
Model Number:
NVR-Kits01poe, NVR-Kits01wifi
Contact Supplier Request Quote Chat Now
Shenzhen Joney Security Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name joney
Model Number NVR-Kits01poe, NVR-Kits01wifi

      2015 best price h.264  720P 4ch wifi  nvr kit



Product Description



 IP Camera:Hi 3518C+ OV9712

1) Dual stream encoding / H.264 compression mode

2) 1/4"-inch OV9712 CMOS, 4mm fixed lens
3) Night vision :20m(36pcs leds)
4) 1MP:1280*720 D1:640*480 CIF:320*240

NVR :Hi 3520A

1) Support 4CH 720P/2CH 1080P realtime viewing and recording;
2) Support 4CH 720P/1CH 1080P playback;
3) Support 1CH BNC/VGA/HDMI output;
4) Support 1CH audio/alarm output;
5) USB*2;
6) support 1 SATA HDD,max capacity 2T





Specification



Camera
Image Sensor 1/4" Progressive Scan CMOS OV9712
Effective Pixels 1280(H)x720(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/10000s
Min. Illumination Color: 0. 1Lux, B/W: 0.01Lux ; 0Lux(IR on)
S/N Ratio >50dB
Camera Features
Max. IR LEDs Length Φ5 24pcs IR Led , IR Range 15m
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC
White Balance Auto
Gain Control Auto/Manual
Noise Reduction 2D
Privacy Masking N/A
Lens
Focal Length 3.6mm (6mm optional)
Max Aperture F1.6
Angle of View 62.2°
Mount Type MTV mount (Interchangeable Lens)
Video
Compression H.264 / MJPEG
Frame Rate Main Stream HD 720P (1280*720) 25fps
Sub Stream VGA 640*360 25FPS
Bit Rate 32-4096Kbps,Supports CBR/VBR
Network
Ethernet RJ-45 (10/100Base-T)
Protocol TCP/IP , UDP , RTP , RTSP , RTCP , HTTP , DNS , DDNS , DHCP , NTP , PPPOE , SMTP , UPNP
ONVIF ONVIF Ver. 2.0
Max. User Access 10 users
Smart Phone iPhone, iPad, Android
Auxiliary Interface
Memory Slot TF Card slot for optional, upto 32G
General
Power Supply DC12V
Power Consumption <6W
Working Environment -10°C~+60°C, 10%~90%
Ingress Protection IP66
Dimension 165 mm (L) * 60 mm (W) * 60mm (H) )
Weight 0.36 KG
Package Dimension 190 * 120 * 100mm
Package Weight 0.7 KG
Approvals CE FCC RoHS







ystem Model NVR-6004POE
Main processor High performance embedded microprocessor-20A
Operating system Embedded LINUX OS
Video spec Video compression format H.264
Display Image Resolution 720P@30fps;960P@30fps;1080P@30fps
Playback Image Resolution 720P@30fps;
Motion Detection can setup 192(16×12)pcs motion detection area
each channeland multi-level sensitivity(1-6 levels adjustable)
Privacy Masking Depends on ipc
Audio spec
Audio compression format adpcm
Two-way audio 1ch
Recording Recording Mode Manual Recording, Motion Detection Recording, Time Recording, Alarm Recording,
Recording storage HDD,Network
Frame rate 30 fps
Recording Playback Max suport 4ch960P or 2ch 1080P synchronously playback
Backup Mode Support HDD,USB Flash Disk store & backup
Video Network Video Input 4ch
Video output 1ch CVBS(BNC), 1ch VGA and 1ch HDMI
Audio Audio Input 4ch IPC Composite Audio
Audio Output 1ch(support two-way audio)
Alarm Alarm Input 4ch Alarm Input
Alarm Output 1ch Alarm Output
Other Network 1x10/100Mbps,RJ45 port
RS485 Standard 485 port,support half-duplex, green terminal port
USB 2 USB 2.0 ports
HDD support 2pcs SATA HDD inside
Power DC +12V /4A
Power consumption 16W-18W(not include HDD and PoE)
Operation temperature 0°C-+55°C
Operation humidity 10%-90%
Demension 335MM*252MM*50mm(1U height)
Weight 2.0--2.12KG(not include HDD)
