Home > Products > NVR Recorder > H.264 compression mode 720p 4ch kit nvr wifi

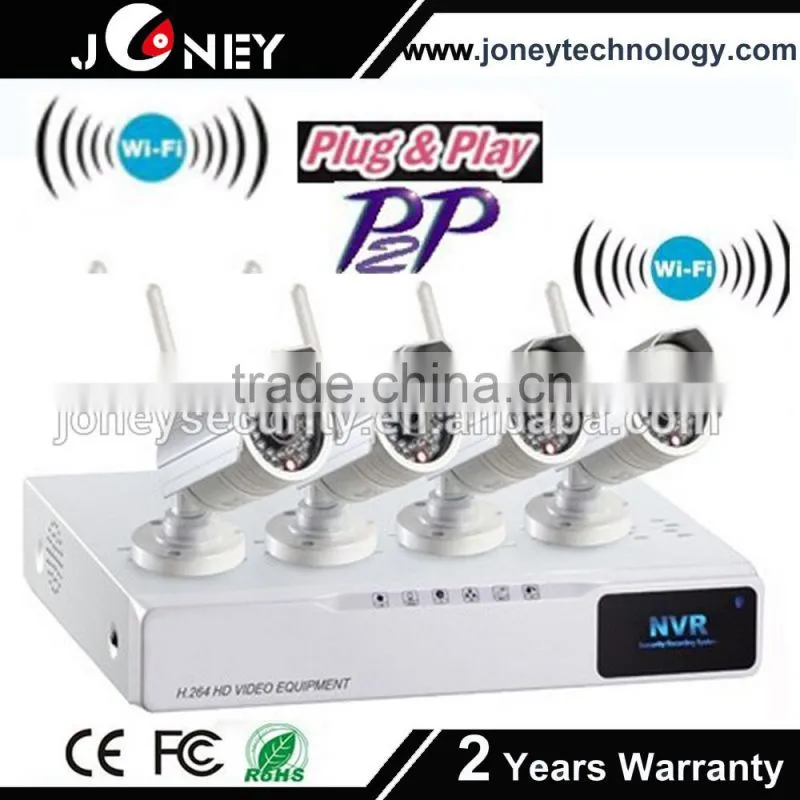

H.264 compression mode 720p 4ch kit nvr wifi
US$ 220 - 230
/ Set
1 Set(Min. Order)
- shenzhen port
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | joney | |
| Model Number | NVR-Kits02, NVR-Kits02w |
Product Description
H.264 compression mode 720p 4ch kit nvr wifi
Product Description
IP Camera:Hi 3518C+ OV9712
1) Dual stream encoding / H.264 compression mode
2) 1/4"-inch OV9712 CMOS, 4mm fixed lens
3) Night vision :20m(36pcs leds)
4) 1MP:1280*720 D1:640*480 CIF:320*240
NVR :Hi 3520A
1) Support 4CH 720P/2CH 1080P realtime viewing and recording;
2) Support 4CH 720P/1CH 1080P playback;
3) Support 1CH BNC/VGA/HDMI output;
4) Support 1CH audio/alarm output;
5) USB*2;
6) support 1 SATA HDD,max capacity 2T
Specification
| NVR Specification | |
| Video Compression | H.264 Video Compression Format |
| Video Input | 4ch 720P(1.0Megapixel) |
| Video output | 1ch HDMI,1ch VGA,1ch CVBS |
| VGA | 1280x720,640x480 |
| HDMI | 1920x1080P |
| Display Mode | Quad,Single Channels,Auto-switch and Hidden |
| Live Display | 720P: 1280*720 @ 30fps per Channel ; D1:640*480 @ 30fps per Channel |
| Recording | 720P: 1280*720 @ 30fps per Channel ; D1:640*480 @ 30fps per Channel |
| Playback | 720P: 1280*720 @ 30fps per Channel ; D1:640*480 @ 30fps per Channel |
| Record Modes | Motion Activated,Continuous and Time Schedule,Alarm |
| Support HDD | 1*3TB Hard Disk |
| Backup | USB2.0 Video Backup |
| Alarm | 4CH Input,1CH Output |
| Audio In/Out | 1CH RCA |
| PTZ function | Yes |
| Controller & Mouse | Yes |
| Network Interface | RJ45,10M/100M |
| Network Protocol | TCP/UDP/DHCP/DDNS/PPPOE/UPNP/ONVIF |
| Operatin System | PC / MAC /Smart Phones |
| Browser | IE 7/8/9/10,Firefox |
| Operation Temperature | 40°F--75°F |
| Power Supply | DC 12V/2A |
| Dimensions(L*W*H) | 315*274*45mm(L*W*H) |
| Camera Specification | |
| Image Sensor | 1/4 CMOS |
| Resolution | 1280*720(1MP) |
| Number of LEDs | 36 pcs IR lights |
| Length of Night Vision | 20M View Distance |
| Lens Type | 3.6mm Fixed Lens |
| Weatherproof Rating | IP67 |
| Length of Cable | 810mm |
| S/N Ration | >50DB |
| Minimum Illumination | 0.5LUX |
| Effective Pixels | 1280*720(1.3MP) |
| Power Supply | DC 12V |
| Operating Temperature | -10°C-+60°C |
| Dimensions | 69*189mm(D*L) |
