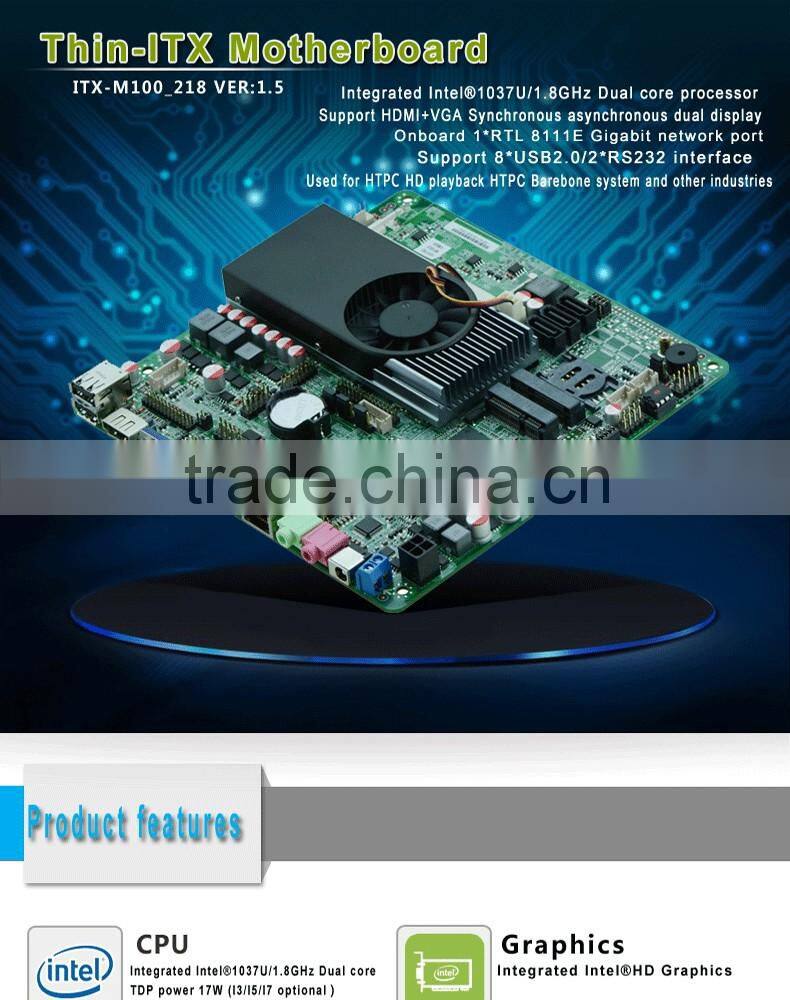

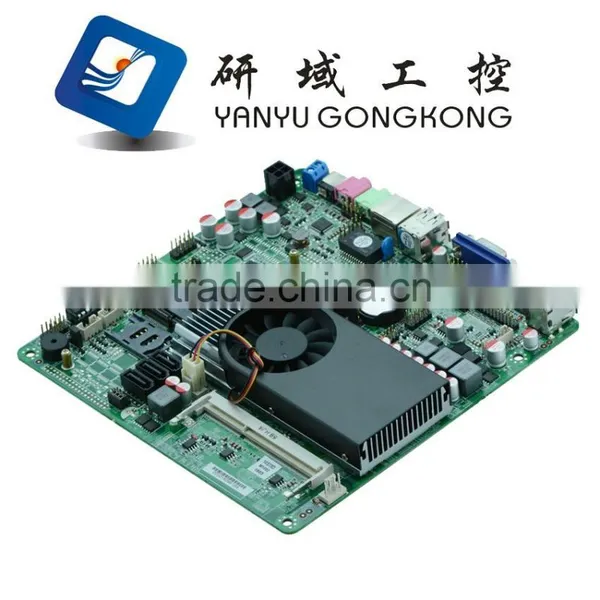

X86 Industryial Thin Motherboard 12v dc Mother Board With dc Power With Intel NM70 Chipset

Model NO.

ITX-M100_218 VER:1.2B

CPU

Intel® 1037U Dual-core 22nm Processor 1.8GHz  TDP 17W

Chipset

Intel® NM70 chipset

Memory

1*SO DDRIII slot,support 1600/1333MHz memory,max.up to 8GB

Graphics

Intel®HD Graphics

Support 1*VGA,2*HDMI,1*LVDS (support dual channel 24BIT)

VGA;HDMI;LVDS support synchronous/asynchronous display

LAN

1* RTL8111E Gigabit LAN controller, support Wake-on-LAN/PXE

Storage

2* SATAII , transfer rate up to 3Gbps

Audio

ALC662 6channel HD audio controller, support MIC/Line-out / amplifier

Recommend to use 3Ω2W speaker

Expansion Slots

1* Mini-PCIE slot, support WIFI/3G module (Jumper control function swap)

1* MSATA slot,support SSD/WIFI,SSD transfer rate up to 6Gbps (Jumper control function swap)

Rear I/O

4* USB2.0

1* HDMI

1* VGA

1* RJ-45

1* Line out (Green)

1* Mic (Red)

1* 12V DC_JACK input

Internal I/O

1* LVDS (2*15pin),support dual channel 24 BIT LCD display

1* LVDS INVERTER(1*6pin)

1* JHDMI(2*8Pin)

1* JVGA1 (2*5pin) , same signal with DB15

2* RS232 COM

1* TX-RXCOM RS485/422 connector,  2*5Pin

1* LPT header (2*13pin)

4* USB2.0 header (If Mini-PCIE slot for 3G module, only support 2*USB2.0)

1* PS/2, KB/MS connector  (1*6Pin)

1* AUDIO front panel audio connector (2*5pin)

1* SIM card socket

2*PWROUT (HDD power connector)

1* FP1 front panel function buttons and indicator connector (2*5pin)

1* ATX_12V

Fan Interface

1* CPUFAN 4pin; 1* SYSFAN 3pin

GPIO

1* GPIO (Support 4-way GPIO function)

BIOS

AMI 32MB Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power Input

DC_12V single power supply

Operating Temp.

-10°C~60°C

Storage Temp.

-20°C~70°C

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

170mm x 170mm

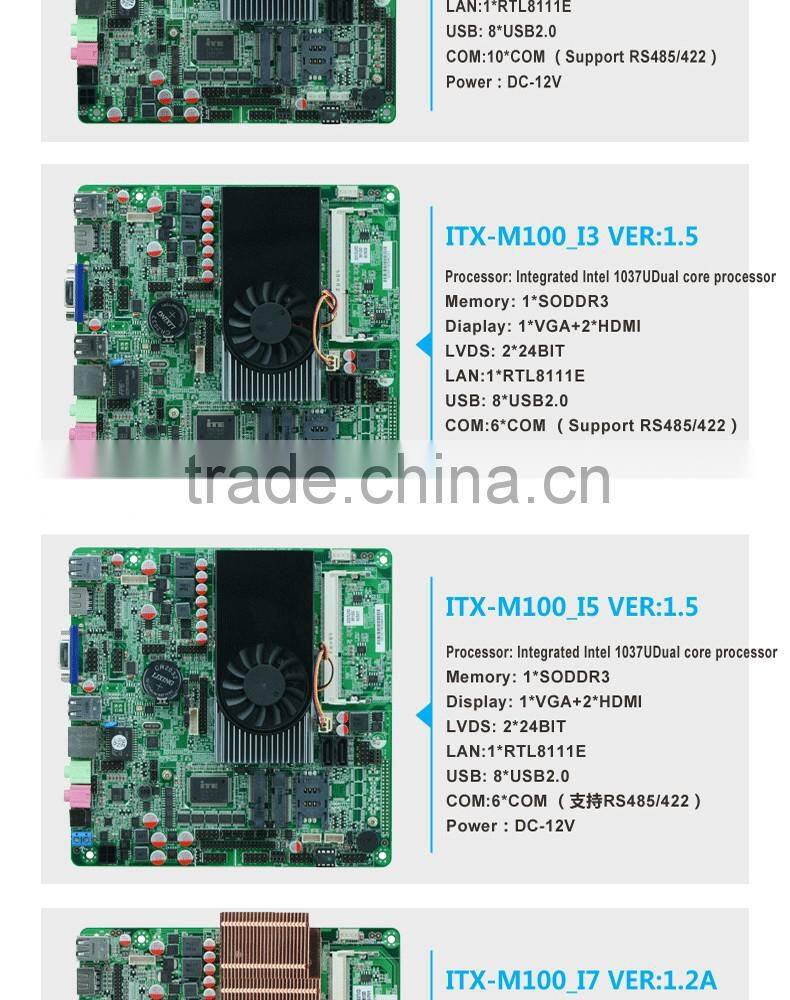

No.

Model No.

CPU

Memory

Display

LVDS

LAN

USB

COM

RS485/422

Power

1

ITX-M100_610 VER:1.2B

1037U/1.80G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111E

8

10

COM2/COM3

DC/12V

2

ITX-M100_218 VER:1.2B

1037U/1.80G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111E

8

2

X

DC/12V

3

ITX-M100_618 VER:1.2B

1037U/1.80G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111E

8

6

COM2/COM3

DC/12V

4

ITX-M100_I3 VER:1.2B

3217U/1.80G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111E

8

6

COM2/COM3

DC/12V

5

ITX-M100_I5 VER:1.2B

3317U/1.70G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111E

8

6

COM2/COM3

DC/12V

6

ITX-M100_I7 VER:1.2A

3537U/1.90G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111E

8

6

COM2/COM3

DC/12V
