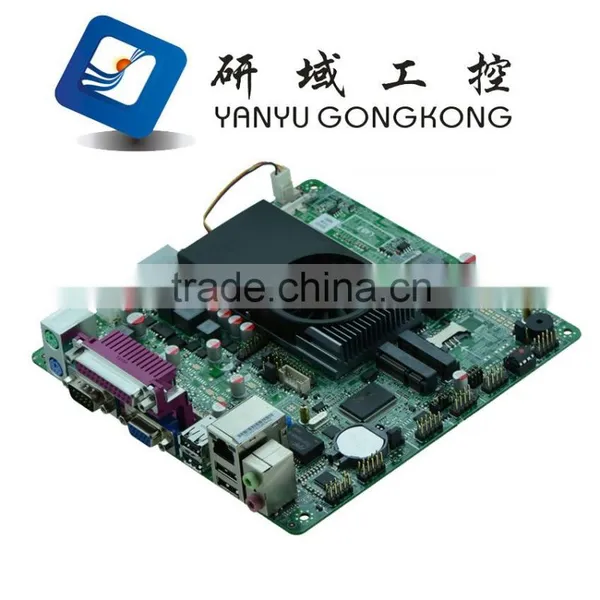

Low Power Computer Motherboard 1037u Network X86 Motherboard Manufacture Hot Selling

Low Power Computer Motherboard 1037u Network X86 Motherboard Manufacture Hot Selling thumbnail-1
Low Power Computer Motherboard 1037u Network X86 Motherboard Manufacture Hot Selling photo-1
US$ 1 - 99 MOQ: 2 Units
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Embedded Industrial Motherboard
Brand Name:
YANYU GONGKONG
Contact Supplier Request Quote Chat Now
Shenzhen Hanzsung Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Embedded Industrial Motherboard
Brand Name YANYU GONGKONG
Model Number ITX-M18_A2 M01
Place of Origin Guangdong, China

                                              Specification &Details

low power computer motherboard 1037u network x86 motherboard manufacture hot selling



Specifications:



Model NO.

ITX-M18_A2 VER:1.2A

CPU

Intel® 1037U Dual-core 22nm Processor 1.8GHz  TDP 17W

Chipset

Intel® NM70 chipset

Memory

1*SO DDRIII slot, support 1600/1333/1066MHz memory, max. up to 8GB

Graphics

Intel®HD Graphics

Support 1*VGA,1*LVDS ( support dual channel 24BIT)

VGA;LVDS support synchronous/asynchronous display

LAN

1* RTL8111E Gigabit LAN controller, support Wake-on-LAN/PXE

Storage

2* SATAII, transfer rate up to 6Gbps

Audio

ALC662 6channel HD audio controller, support MIC/Line-out

Expansion Slots

1* 52pin PCIEx1 slot, support WIFI /3G module

1* MSATA slot, support SSD,SSD transfer rate up to 6Gbps







Rear I/O

1* PS/2( KB&MS)

1* DB9 COM ( the 9th PIN with charged function)

1* VGA

1* LPT

4* USB2.0

1* RJ-45

1* Audio (Line out / MIC)









Internal I/O

1* LVDS (2*15pin),support dual channel 24 BIT LCD display

1* LVDS INVERTER(1*6pin)

1* JVGA1 (2*5pin) , same signal with DB15

1* COM port ,support RS232 ( 2*5pin )

4* USB2.0 (If Mini-PCIE slot for 3G module, only support 2*USB2.0)

1* PS/2 ,KB/MS connector (1*6Pin)

1* AUDIO front panel audio connector (2*5pin)

1* SIM card socket

1* FP1 front panel function buttons and indicator connector (2*5pin)

1* ATX_20P power socket

Fan Interface

1* CPUFAN 3pin; 1* SYSFAN 3pin

BIOS

AMI 32MB Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power Input

ATX power supply

Operating Temp.

-10°C~60°C

Storage Temp.

-20°C~70°C

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

170mm x 170mm



Images of product:

low power computer motherboard 1037u network x86 motherboard manufacture hot sellinglow power computer motherboard 1037u network x86 motherboard manufacture hot sellinglow power computer motherboard 1037u network x86 motherboard manufacture hot sellinglow power computer motherboard 1037u network x86 motherboard manufacture hot sellinglow power computer motherboard 1037u network x86 motherboard manufacture hot sellinglow power computer motherboard 1037u network x86 motherboard manufacture hot sellinglow power computer motherboard 1037u network x86 motherboard manufacture hot sellinglow power computer motherboard 1037u network x86 motherboard manufacture hot sellinglow power computer motherboard 1037u network x86 motherboard manufacture hot selling

Order Information:

No.

Model No.

CPU

Memory

Display

LVDS

LAN

USB

COM

RS485/422

Power

1

ITX-M18_A2 VER:1.2A

1037U/1.80G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111E

8

2

X

ATX

2

ITX-M18_A6 VER:1.2

1037U/1.80G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111E

8

6

COM3

ATX

3

ITX-M18_D2 VER:1.2A

1037U/1.80G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111E

8

2

X

DC12V

4

ITX-M18_D6 VER:1.2

1037U/1.80G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111E

8

6

COM3

DC12V

5

ITX-M18_D26 VER:1.2

1037U/1.80G

1*SODDR3

1*VGA

2*24BIT

2*RTL8111E

8

6

COM3

DC12V



Company information:

low power computer motherboard 1037u network x86 motherboard manufacture hot selling



low power computer motherboard 1037u network x86 motherboard manufacture hot selling



low power computer motherboard 1037u network x86 motherboard manufacture hot selling



Certification:

low power computer motherboard 1037u network x86 motherboard manufacture hot selling



Delivery method:

low power computer motherboard 1037u network x86 motherboard manufacture hot selling



We are an Intel IoT Solutions Alliance Affiliate Member

16 years' manufacturing experience | OEM/ODM services | Exporting to the US and Europe
