Products Status Stock
Type Embedded Industrial Motherboard
Brand Name YANYU GONGKONG
Model Number ITX-M18_A6 M01
Place of Origin Guangdong, China

                                              Specification &Details

Alibaba hot selling intel chipset motherboard ddr3 ram supported motherboard with 2*24BIT lvds, 8*usb,6*com,1* RTL8111E



Specifications:



Model NO.

ITX-M18_A6 VER:1.2

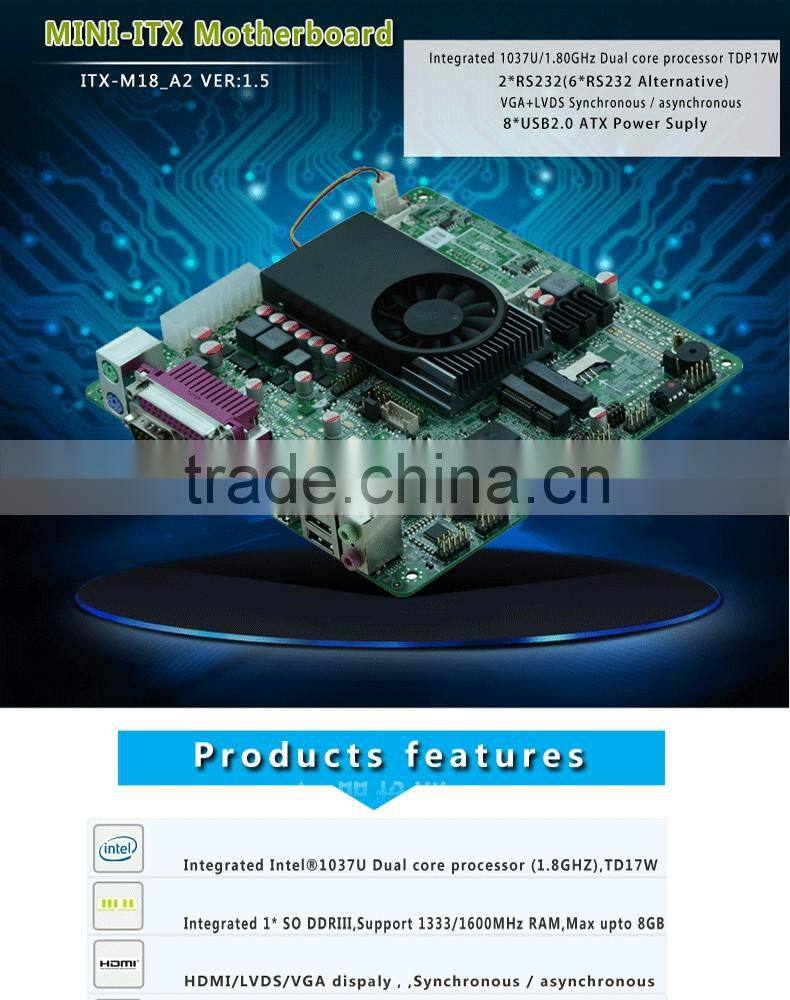

CPU

Intel® 1037U Dual-core 22nm Processor 1.8GHz  TDP 17W

Chipset

Intel® NM70 chipset

Memory

1*SO DDRIII slot, support 1600/1333/1066MHz memory, max. up to 8GB

Graphics

Intel®HD Graphics

Support 1*VGA,1*LVDS ( support dual channel 24BIT)

VGA;LVDS support synchronous/asynchronous display

LAN

1* RTL8111E Gigabit LAN controller, support Wake-on-LAN/PXE

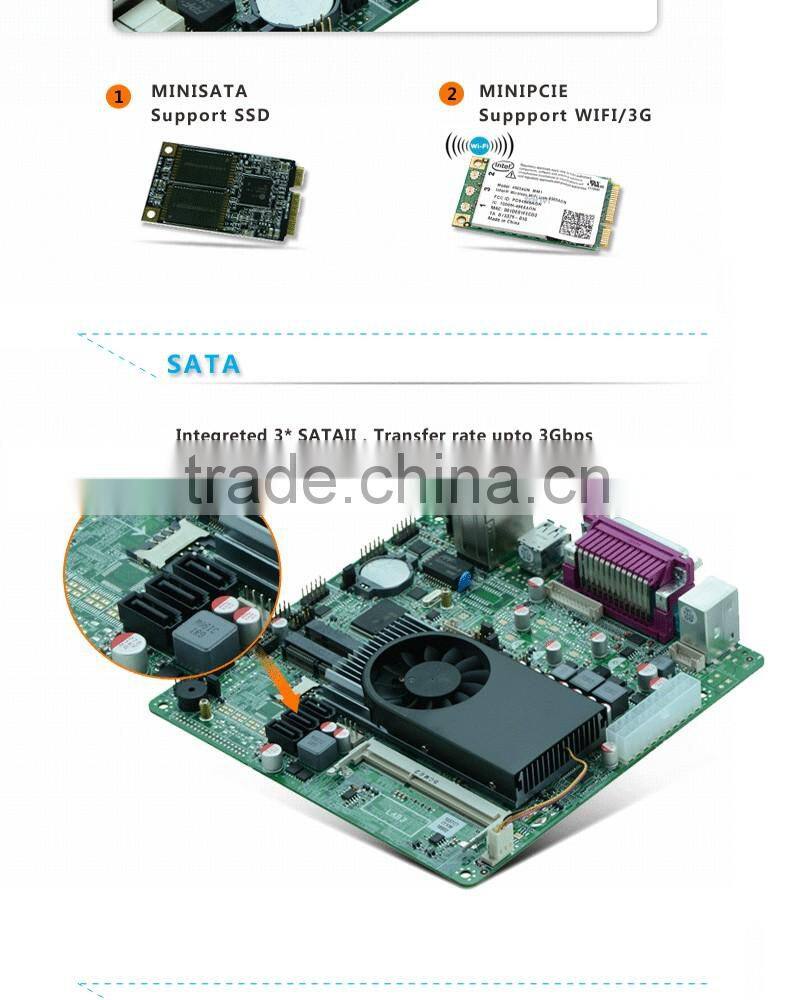

Storage

2* SATAII, transfer rate up to 6Gbps

Audio

ALC662 6channel HD audio controller, support MIC/Line-out

Expansion Slots

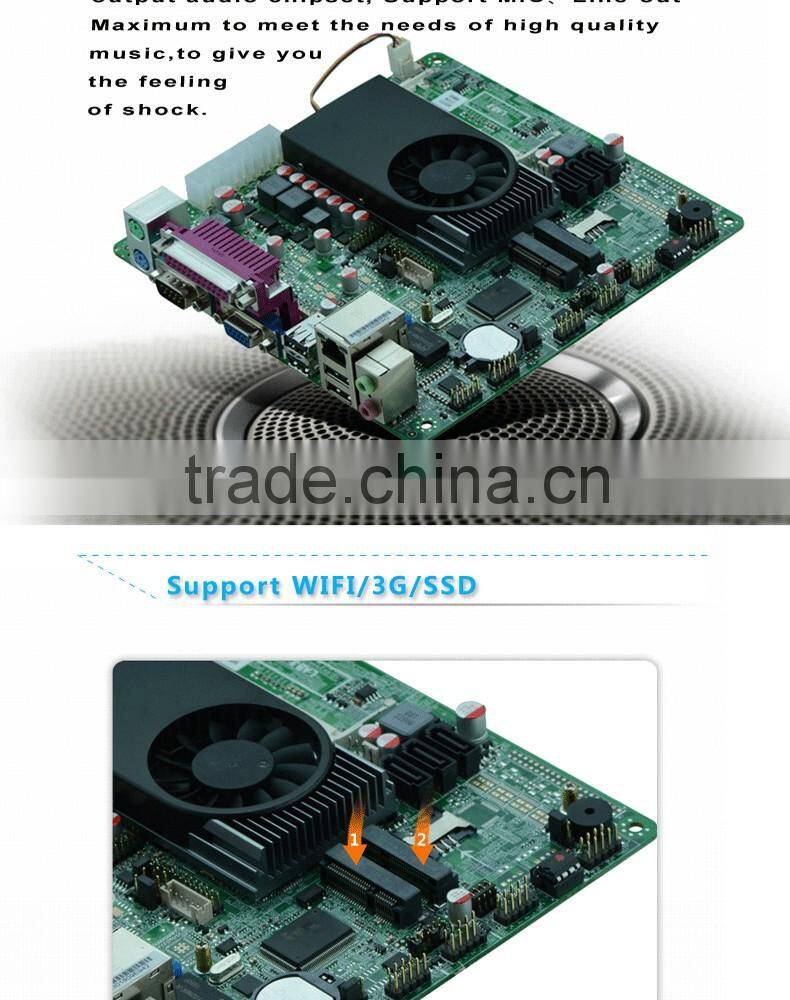

1* 52pin PCIEx1 slot, support WIFI /3G module

1* MSATA slot, support SSD,SSD transfer rate up to 6Gbps

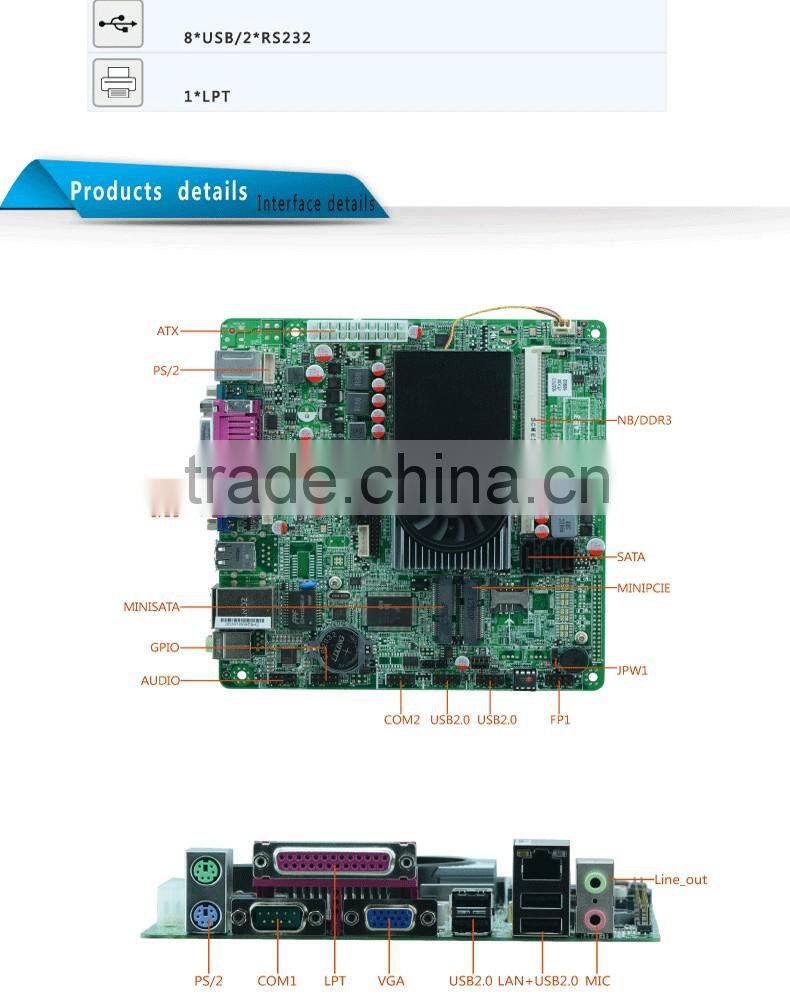

Rear I/O

1* PS/2( KB&MS)

1* DB9 COM ( the 9th PIN with charged function)

1* VGA

1* LPT

4* USB2.0

1* RJ-45

1* Audio (Line out / MIC)









Internal I/O

1* LVDS (2*15pin),support dual channel 24 BIT LCD display

1* LVDS INVERTER(1*6pin)

1* JVGA1 (2*5pin) , same signal with DB15

5* COM RS232 (COM2 connector is 2*5pin; COM3~6 connector is 2*20pin)

4* USB2.0 (If Mini-PCIE slot for 3G module, only support 2*USB2.0)

1* PS/2 ,KB/MS connector (1*6Pin)

1* AUDIO front panel audio connector (2*5pin)

1* SIM card socket

1* FP1 front panel function buttons and indicator connector (2*5pin)

1* ATX_20P power socket

Fan Interface

1* CPUFAN 3pin; 1* SYSFAN 3pin

BIOS

AMI 32MB Flash ROM

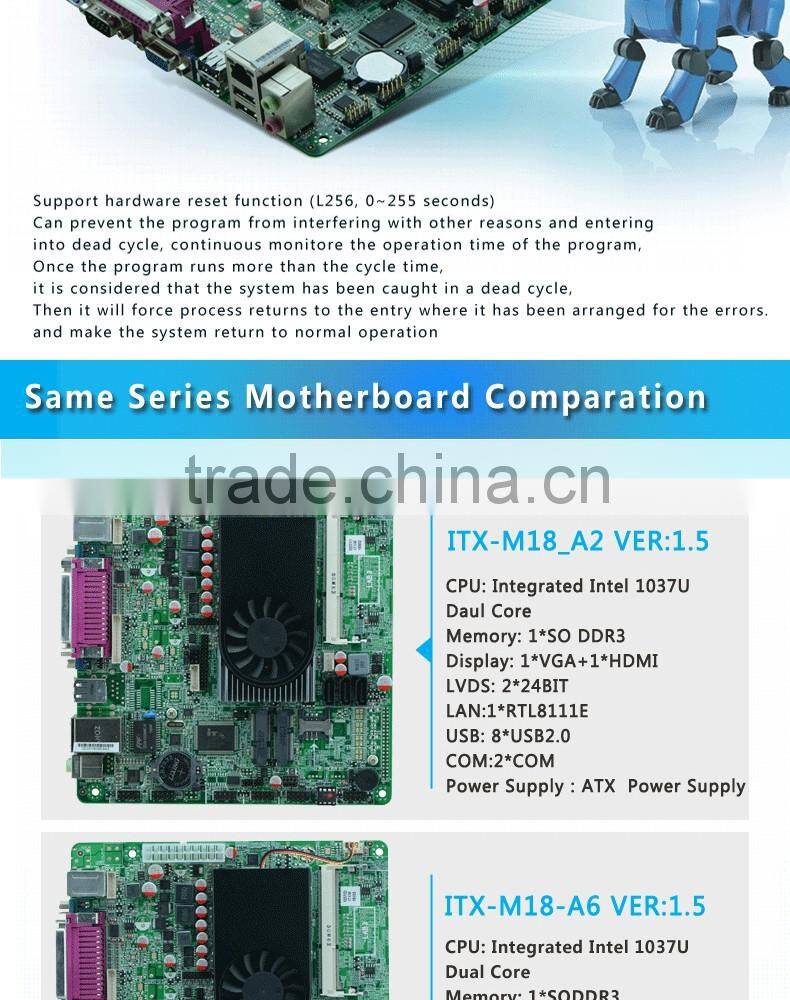

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power Input

ATX power supply

Operating Temp.

-10°C~60°C

Storage Temp.

-20°C~70°C

Humidity

5%-95% (relative humidity; non-condensing)

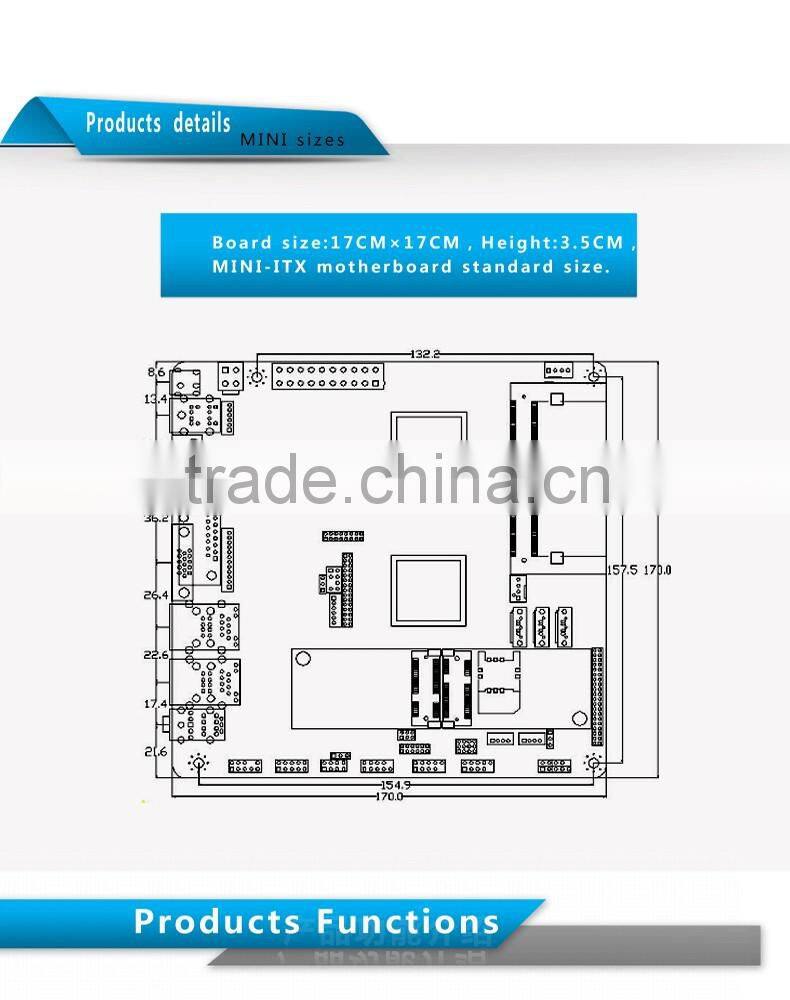

Dimension

170mm x 170mm

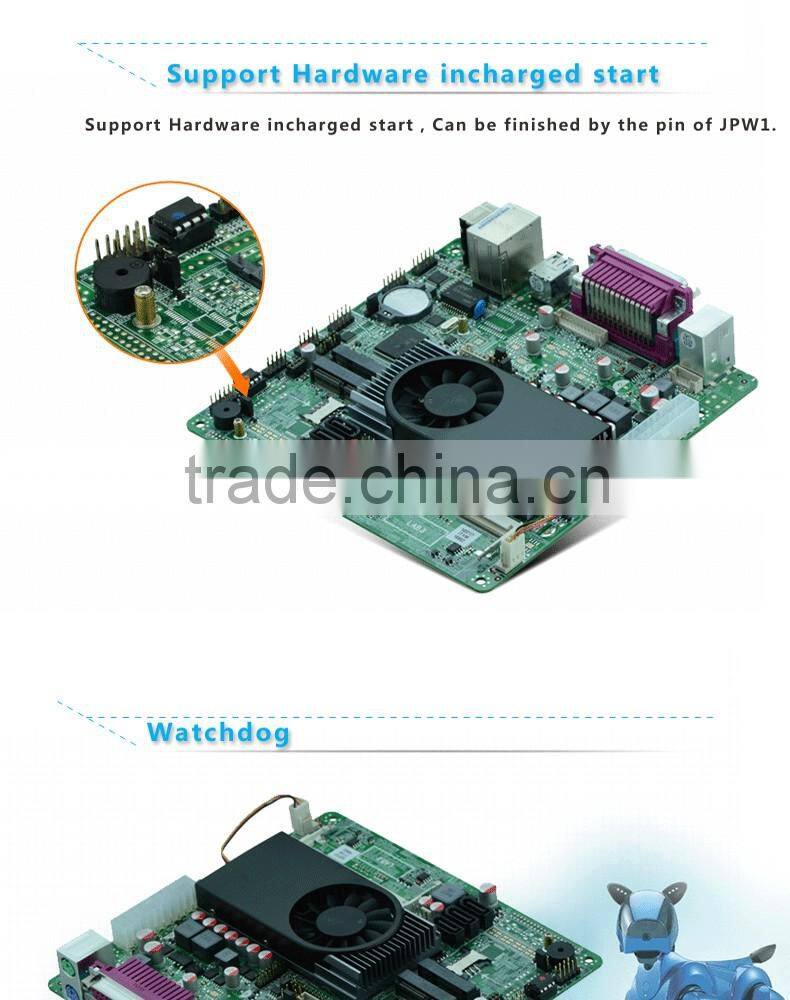

Images of product:

Alibaba hot selling intel chipset motherboard ddr3 ram supported motherboard with 2*24BIT lvds, 8*usb,6*com,1* RTL8111EAlibaba hot selling intel chipset motherboard ddr3 ram supported motherboard with 2*24BIT lvds, 8*usb,6*com,1* RTL8111EAlibaba hot selling intel chipset motherboard ddr3 ram supported motherboard with 2*24BIT lvds, 8*usb,6*com,1* RTL8111EAlibaba hot selling intel chipset motherboard ddr3 ram supported motherboard with 2*24BIT lvds, 8*usb,6*com,1* RTL8111EAlibaba hot selling intel chipset motherboard ddr3 ram supported motherboard with 2*24BIT lvds, 8*usb,6*com,1* RTL8111EAlibaba hot selling intel chipset motherboard ddr3 ram supported motherboard with 2*24BIT lvds, 8*usb,6*com,1* RTL8111EAlibaba hot selling intel chipset motherboard ddr3 ram supported motherboard with 2*24BIT lvds, 8*usb,6*com,1* RTL8111EAlibaba hot selling intel chipset motherboard ddr3 ram supported motherboard with 2*24BIT lvds, 8*usb,6*com,1* RTL8111EAlibaba hot selling intel chipset motherboard ddr3 ram supported motherboard with 2*24BIT lvds, 8*usb,6*com,1* RTL8111E

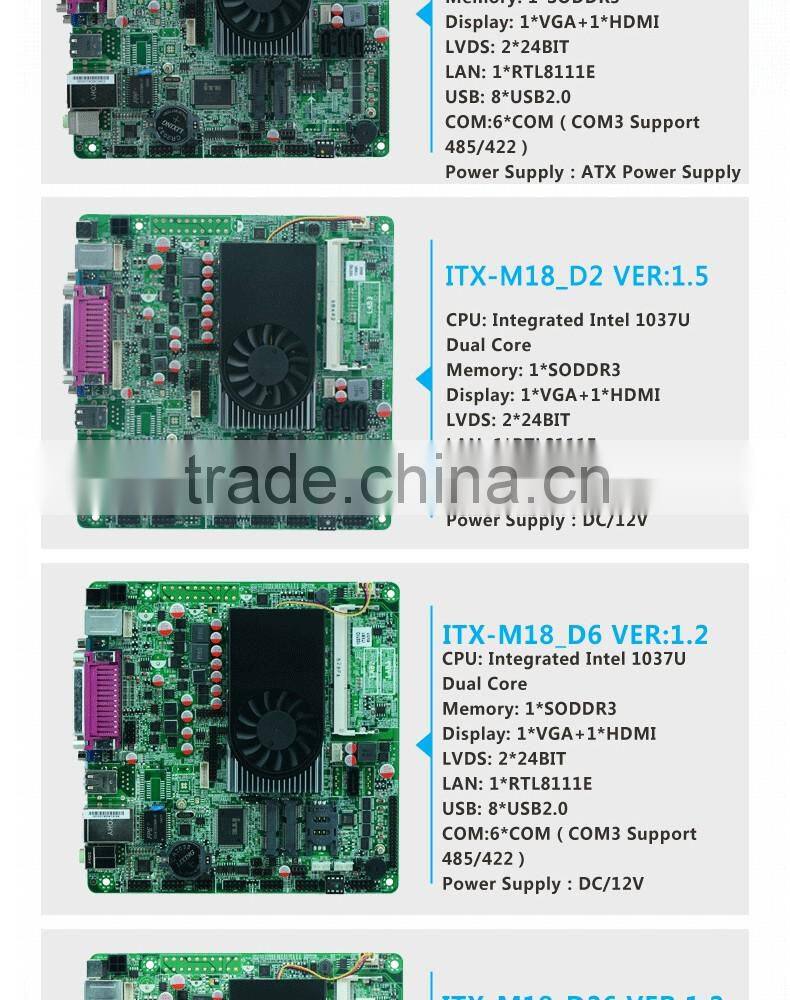

Order Information:

No.

Model No.

CPU

Memory

Display

LVDS

LAN

USB

COM

RS485/422

Power

1

ITX-M18_A6 VER:1.2

1037U/1.80G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111E

8

6

COM3

ATX

2

ITX-M18_A2 VER:1.2A

1037U/1.80G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111E

8

2

X

ATX

3

ITX-M18_D2 VER:1.2A

1037U/1.80G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111E

8

2

X

DC12V

4

ITX-M18_D6 VER:1.2

1037U/1.80G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111E

8

6

COM3

DC12V

5

ITX-M18_D26 VER:1.2

1037U/1.80G

1*SODDR3

1*VGA

2*24BIT

2*RTL8111E

8

6

COM3

DC12V
