Specification &Details

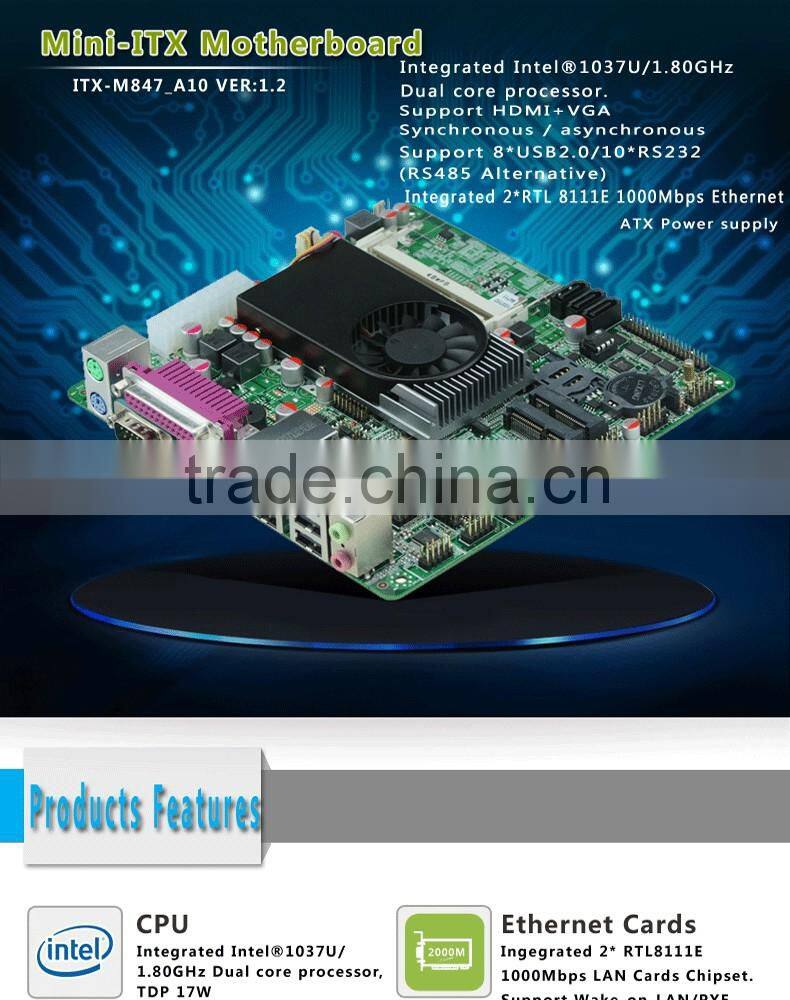

2* RJ-45 Lan port Cheapest celeron industrial pc motherboard 1037u embedded computer board with factory best prices
Specifications:
Model NO. |
ITX-M847_Z10 VER:1.2 |

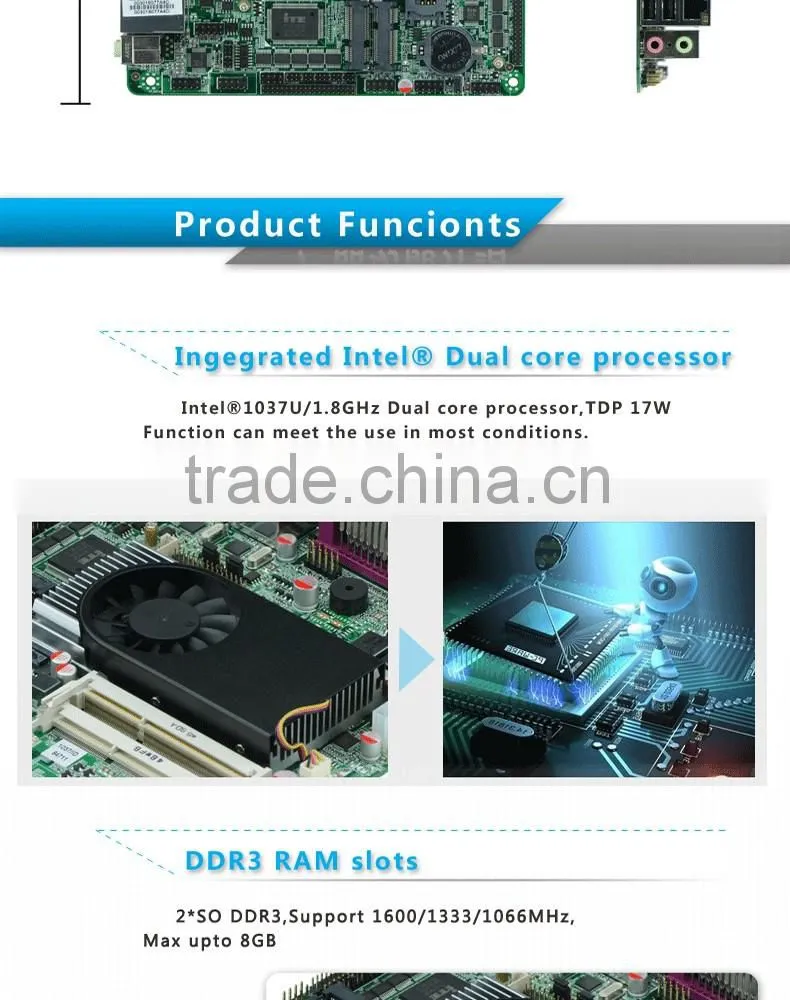

CPU |
Integrdined,Intel®1037U/1.80GHz dual core CPU,TDP 17W |
Chipset |
Adopt,Intel® NM70 chipsets |
Memory |
2*SO DDRIII RAM slot,support 1600/1333/1066MHz RAM,Max up to 16GB |
Graphics |
Integrdined,Intel®HD Graphics |
Support 1*VGA,1*HDMI,1*LVDS port (support dual channel 24BIT) | |
VGA;LVDS support synchronous/asynchronous display | |
LAN |
2* RTL8111E Gigabit LAN controller, support Wake-on-LAN/PXE |
Storage |
3* SATAII, transfer rate up to 3Gbps |
Audio |
OnBoard,ALC662 6channel HD audio controller, support MIC/Line-out |
Expansion Slots |
1* MINIPCIE slot, Support WIFI/3G module |
1* MSATA slot, support SSD,SSD transfer rate up to 6Gbps | |
|

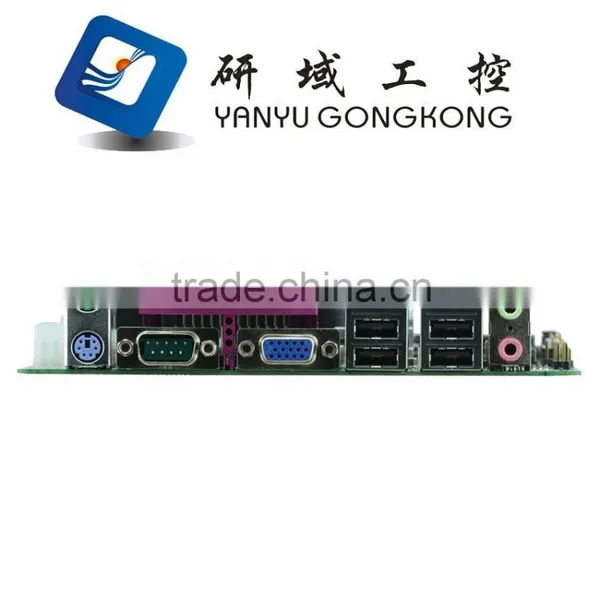

Rear I/O
|
1* 12V DC_JACK input |
1* PS/2( KB&MS) | |
1* DB9 COM (the 9th PIN with charged function) | |
1* VGA | |
1* LPT | |
4* USB2.0 | |
2* RJ-45 Lan port | |
1* Audio (Line out / MIC) | |

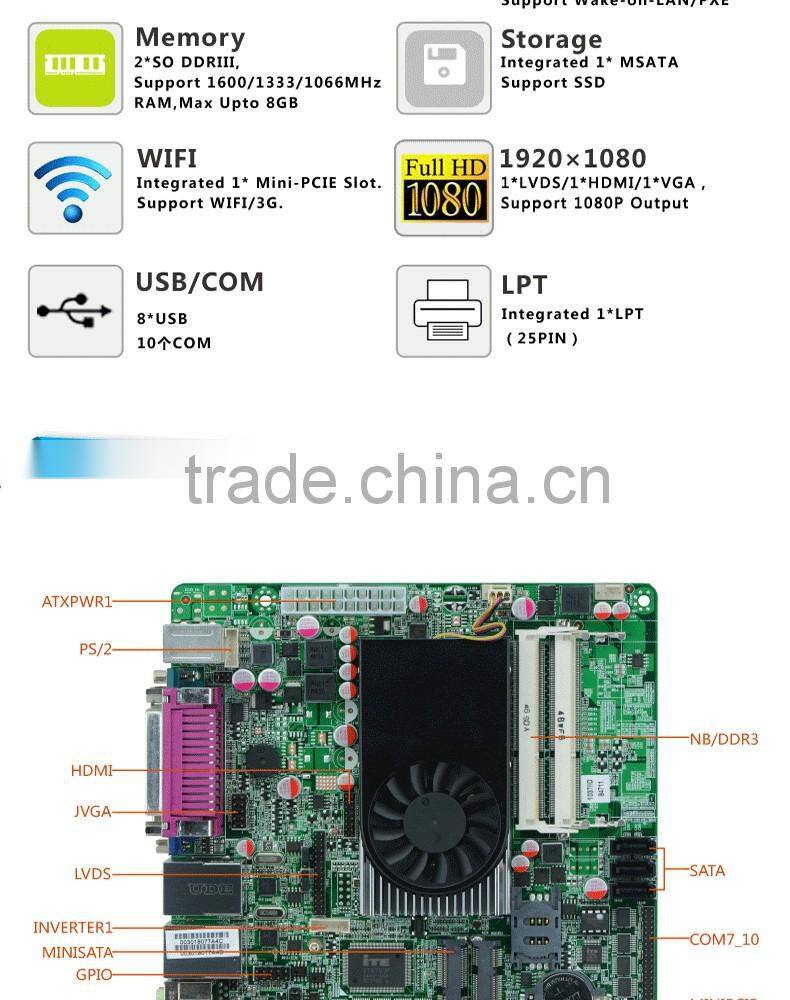

Internal I/O |
1* LVDS (2*15pin),support dual channel 24 BIT LCD display |
1* LVDS INVERTER(1*6pin) | |
1* JVGA1 (2*5pin) , same signal with DB15 | |
9* COM port(COM2 is 2*5pin);COM3~6 connector is 2*20pin header, COM7~10is 2*20pin header | |
COM2 COM3 support RS485/RS422 port) | |
4* USB2.0 | |
1* PS/2,KB/MS connector (1*6Pin) | |
1* AUDIO front panel audio connector (2*5pin) | |
1* SIM card socket | |
1* FP1 front panel function buttons and indicator connector (2*5pin) | |
1* 4pin ATX 12V input output port | |
Fan Interface |
2* CPU CPU 4pin |

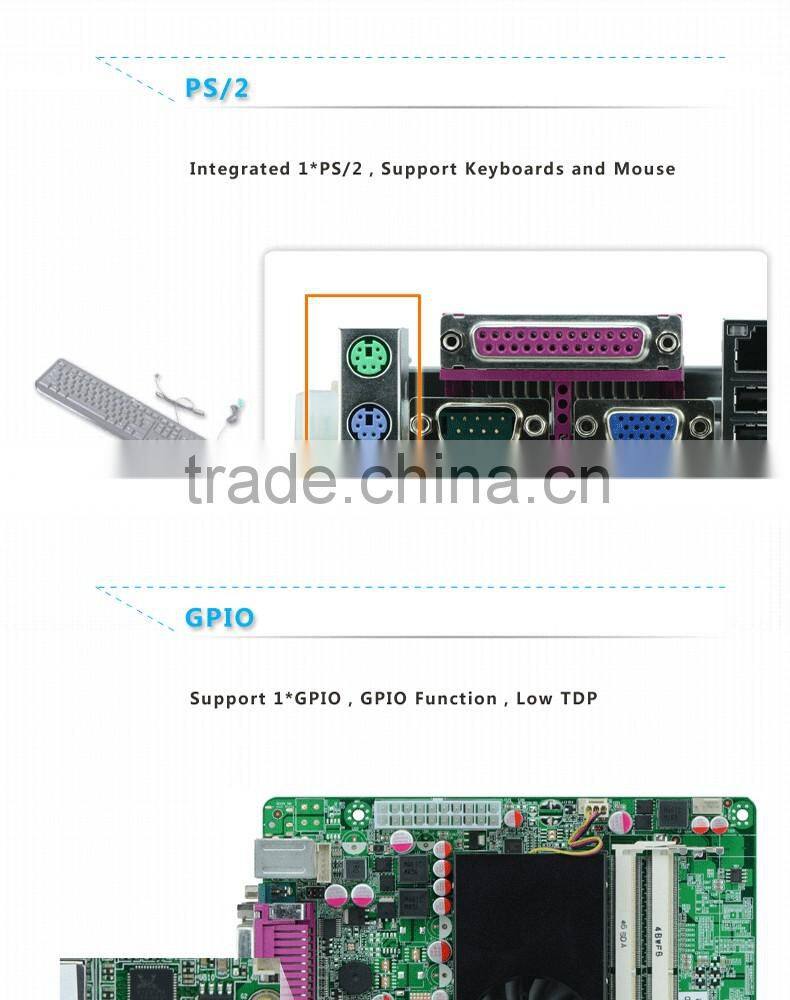

GPIO |
Support 4 line input &output GPIO |
BIOS |
AMI 32Mb Flash ROM |

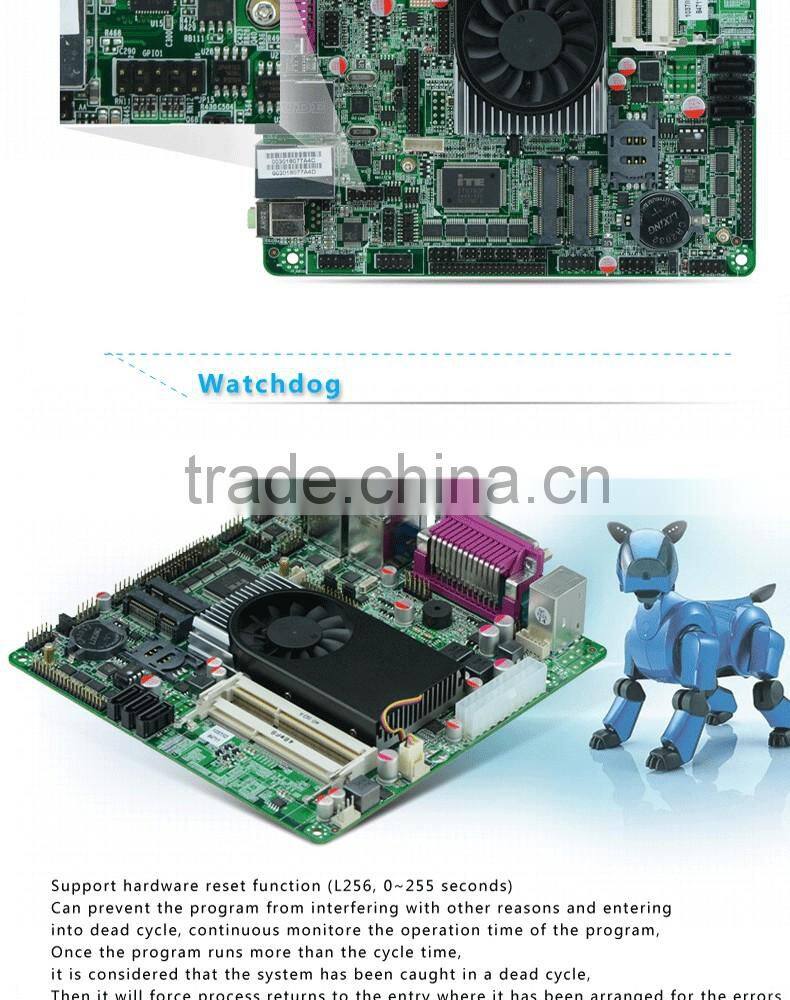

Watchdog |
Support hardware reset function (L256, 0~255 seconds) |
Power Input |
DC_12V |
Operating Temp. |
-10℃~60℃ |
Storage Temp. |
-20℃~70℃ |
Humidity |
5%-95% (relative humidity; non-condensing) |
Dimension |
170mm x 170mm |

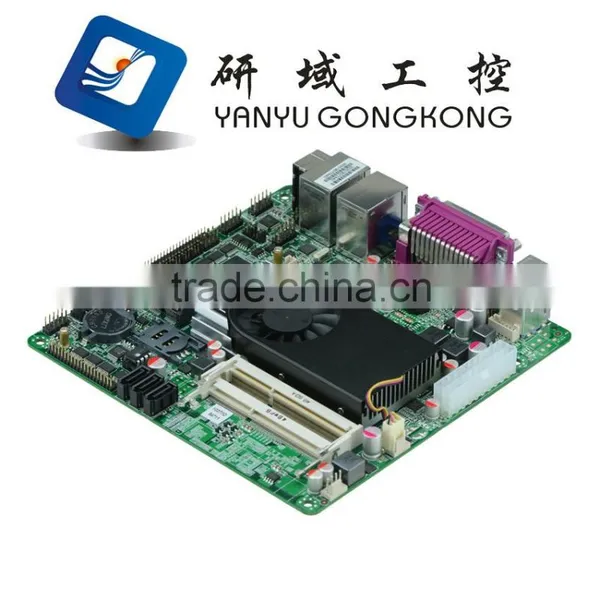

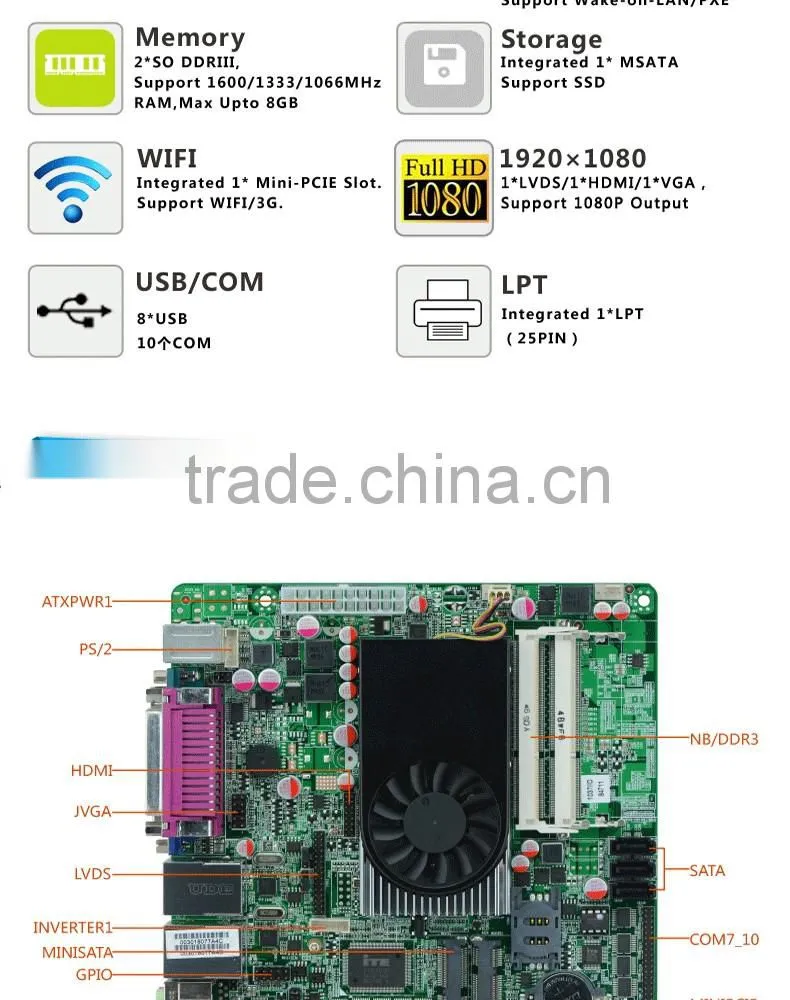

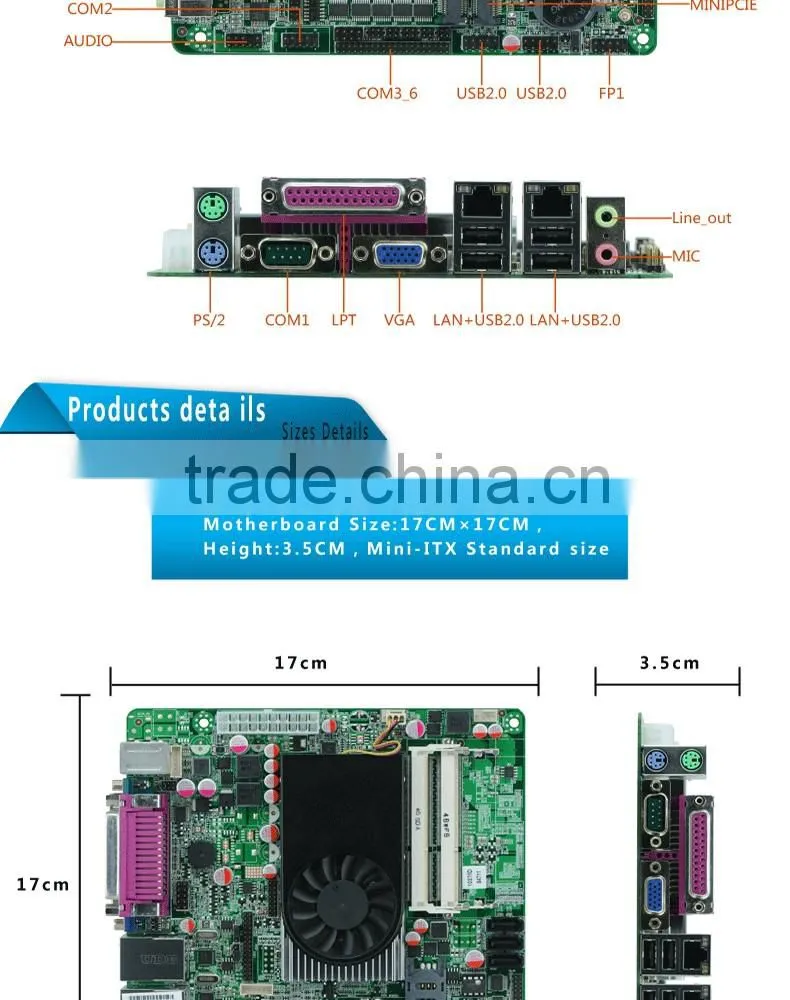

Images of product:

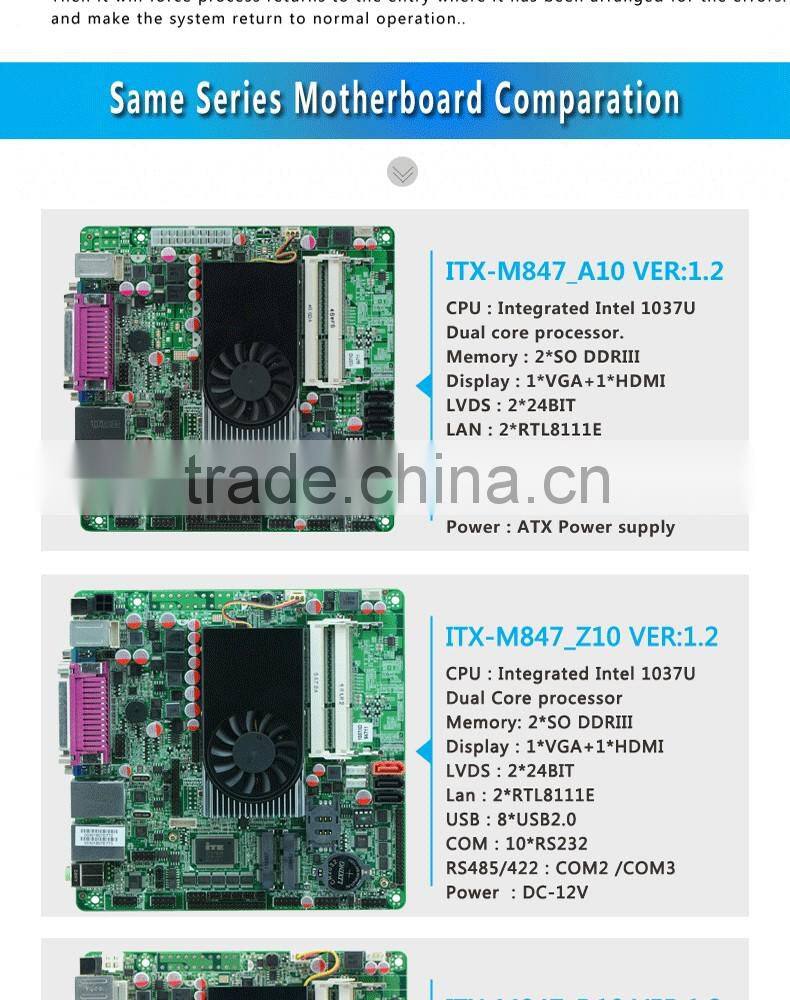

Order Information:
No. |
Model No. |
CPU |
Memory |
Display |
LVDS |
LAN |
USB |
COM |
RS485/422 |
Power |
1 |
ITX-M847_A10 VER:1.2 |
1037U/1.80G |
2*SODDR3 |
1*VGA |
2*24BIT |
2*RTL8111E |
8 |
10 |
COM2/COM3 |
ATX |
2 |
ITX-M847_D18 VER:1.2 |
1037U/1.80G |
1*SODDR3 |
1*VGA |
2*24BIT |
1*RTL8111E |
8 |
6 |
COM2/COM3 |
DC12V |
3 |
ITX-M847_A18 VER:1.2 |
1037U/1.80G |
2*SODDR3 |
1*VGA |
2*24BIT |
1*RTL8111E |
8 |
6 |
COM2/COM3 |
ATX |
4 |
ITX-M847_D10 VER:1.2 |
847U/1.10G |
2*SODDR3 |
1*VGA |
2*24BIT |
2*RTL8111E |
8 |
10 |
COM2/COM3 |
DC12V |
5 |
ITX-M847_D102 VER:2.0 |
1037U/1.80G |
Inboard 2G |
2*VGA |
2*24BIT |
2*RTL8111E |
8 |
10 |
COM2/COM3 |
8~36V |
Company information:
Certification:
Delivery method:
We are an Intel IoT Solutions Alliance Affiliate Member
