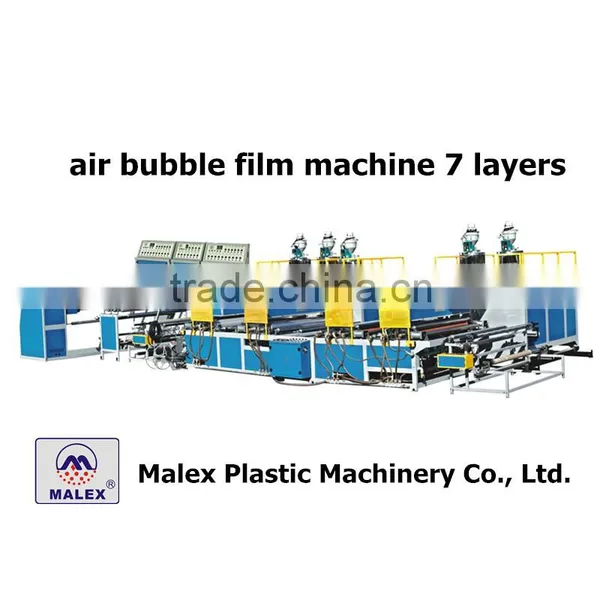

7 layers air bubble film machine for heat insulation
Features:
high-speed can reach 30m/min; high-output; in-line co-extrusion
1/ the structure of scientific and rational, to save space;
2/ stable performance, simple operation, high production efficiency;
3/the use of frequency control, high precision, lower energy consumption;
4/produces 2 layers or 3 layers air bubble film and laminated with 2 layers material;
5/produces bubble from 7mm to 30mm diameter and height specified by customer both specified at order.
contact: Spencer whatsapp & wechat: +86 13433103584 skype: potato19871109 at 126 dot com
QQ:441958519 mobile:+86 13702349431
Air bubble film is widely used in our life
Air bubble film is also called air bubble sheet ,air cushion film, poly-cell sheet or plastic poly-cell. It's widely used as anti-shock material for the package of electronic appliance, industrial products, craftwork and so on. It can also be used for thermal insulation or temperature keeping applications in agriculture, aquaculture, automobile decoration and so on. Moreover, if the raw material is mixed with additives in the extruder, static-free, conductive or environmental-friendly air bubble film can be made.
Model & Main Technologies Parameters of air bubble film machine:
Model |
Max. Width |
Screw Diameter(mm) |
Screw & Barrel material |
Capacity (kg/hr) |
Line Speed (m/hr) |
Heating Power (kW) |
Consumption Power (kW) |
Layer |
Weight (kg) |
MX-W100SA |
1000 |
Φ55mm/ Φ55mm / Φ55mm |
38CrMOALA |
105-170 |
700-1500 |
138 |
40-47 |
7 |
12300 |
MX-W125SA |
1250 |
Φ55mm /Φ55mm / Φ55mm |
38CrMOALA |
105-170 |
700-1500 |
138 |
42-49 |
7 |
12800 |
MX-W150SA |
1520 |
Φ65mm /Φ65mm / Φ55mm |
38CrMOALA |
150-250 |
700-1500 |
160 |
53-60 |
7 |
14200 |
MX-W160SA |
1600 |
Φ65mm /Φ65mm / Φ55mm |
38CrMOALA |
150-250 |
700-1500 |
160 |
55-65 |
7 |
14600 |
MX-W200SA |
2000 |
Φ75mm /Φ75mm / Φ65mm |
38CrMOALA |
300-330 |
700-1300 |
184 |
70-80 |
7 |
17500 |
MX-W250AS |
2520 |
Φ85mm /Φ85mm / Φ75mm |
38CrMOALA |
250-390 |
700-1100 |
231 |
80-90 |
7 |
20400 |
MX-W300SA |
3000 |
Φ90mm /Φ90mm / Φ80mm |
38CrMOALA |
280-440 |
700-1100 |
240 |
90-98 |
7 |
22600 |
main parts of the machine
Malex can manufacture the machine according to your requirement, such as width 1000mm-3000mm, 2 layers-7 layers bubble film, side extruder type or top extruder type, single-screw design or double-screw design.
Why Malex is your best choice?
1. Outstanding lineal speed & output.
Malex machine maximum lineal speed is 30m/min with stable quality and long-time running.
2. Screw design.
Malex screw is under special design can be worked with 100% recycled raw material. The screw is processed under tempering 850℃ for 4 hours.
3. T-die design.
Malex T-die is processed with quenching and high temperature tempering HB230℃-260℃, control the thickness by bolts, all the film will be very even.
Malex has got the CE certificate and have been exported to Argentina, USA, Canada, Turkey, New Zealand, Indonesia, Iran and any other twenty countries and areas, & have won a good reputation among our customers for high quality and high efficiency.
Malex has focused on the production of packaging equipment--air bubble film machine more than 10 years. It is one of the enterprises with the National Sandards Planning (NSP);
Malex's bubble film machine, bag making machine, has passed CE certification, and smoothly entry into the EU market and is popular by customers.
All Malex's products, will be one-year warranty and lifetime technical support.
Malex will send engineers to client's company for installing and training.
Main products: air bubble film machine, bubble film foil / craft laminating machine, bag making machine.
Scale: more than 30 workers, more than 10 office staff.
1. The Seller send 2 engineers to the Buyer’s factory for Installation, Trial Running & Training. The Working duration of the 2 engineers in the Buyer’s factory will be 7 days.
2. The Buyer will pay the round airfare and will be responsible for the food, hotel and local transportation of the engineers .
3. The Buyer should offer a Chinese Interpreter for the seller’s installation engineers.
4. The Buyer should provide the Seller with required documents & help related to the entrance Visa.
5. The Seller offers one year Quality Guarantee of the machines to the Buyer.
Malex Culture
Malex has been professional manufacturer in air bubble film machine and bag making machine more than 10 years
