Specifications

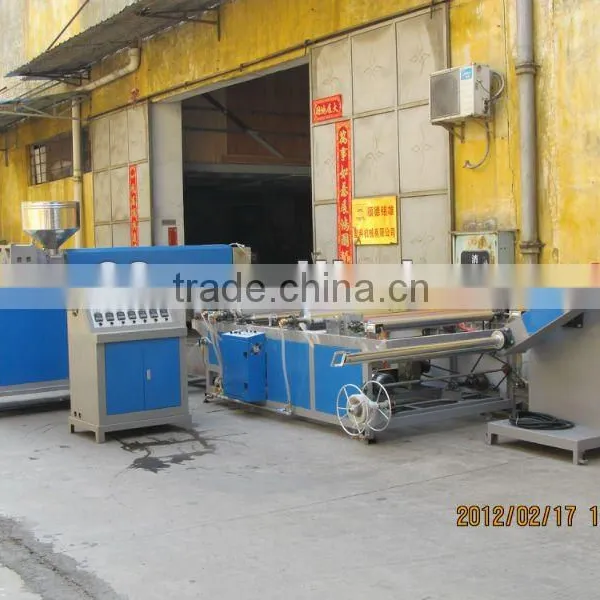

The air bubble film machine produces 3 layers air bubble film with new or recylced LDPE, LLDPE.air bubble film
Air bubble film machine is mainly used to poduce PE air bubble film with LDPE.
This final product is popular as a kind of packaging material. It enjoys such advantages as good shock absorption capability, impact resistance, heal sealing capability, corrosion resistance and good diaphaneity performance, etc.
This machine can prodcue two layers or three layers air bubble film with the max width 1600mm, shorter film can be also made by inserting a deckel in the die lip.
Model & Main Technologies Parameters of PE air bubble film machine:
|
Model |
MX-B100T |
MX-B150T |
MX-B160T |
MX-B200T |
MX-B250T |
Raw Material |
LDPE / LLDPE / RECYCLE MATERIAL
|
||||
Max. Width |
1000mm |
1500mm |
1600mm |
2000mm |
2500mm |
|
Screw |
Φ65mm |
Φ75mm |
Φ75mm |
Φ85mm |
Φ110mm |
Max. Speed |
1200m/hr |
1200m/hr |
1200m/hr |
1100m/hr |
1000m/hr |
Max. Output |
180kg/hr |
270kg/hr |
288kg/hr |
330kg/hr |
375kg/hr |
Total Power |
102kw |
124kw |
142kw |
190kw |
230kw |
Consumption Power |
30~40kw |
38~48kw |
42~52kw |
68~88kw |
88~118kw |
Layers |
3 |
3 |
3 |
3 |
3 |
Weight |
5800kg |
6700kg |
6800kg |
9800kg |
11000kg |
