air bubble wrap machine Malex brand

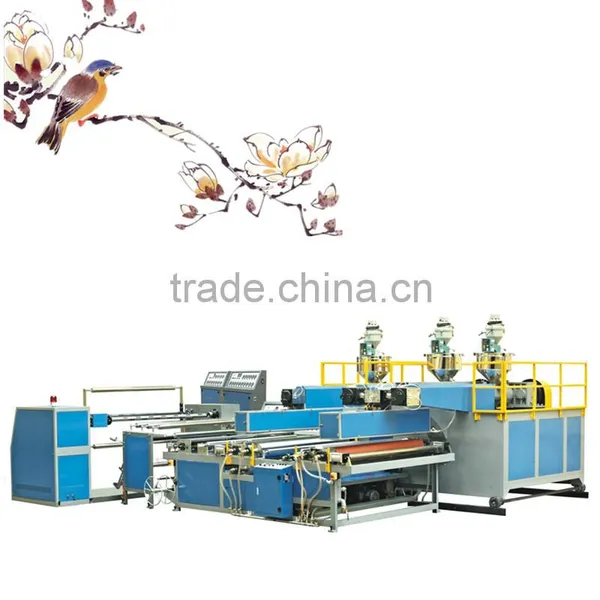

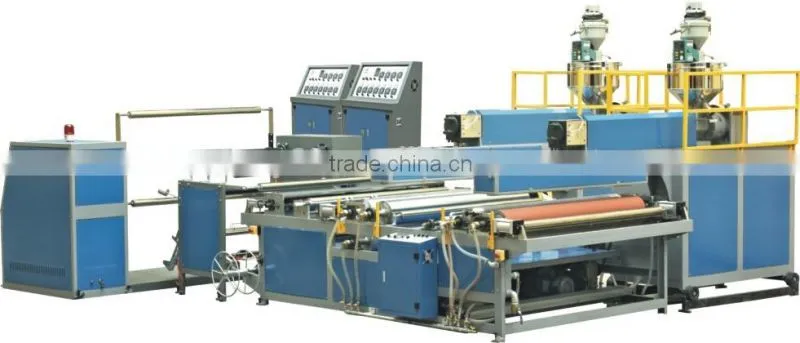

1.Brief Introduction of air bubble wrap machine
Air bubble film machine is mainly used to poduce PE air bubble film with LDPE,LLDPE and recycle LDPE.
3 layers air bubble film machine, which can both make 2 layers and 3 layers air bubble film.
1) Main parts: two extrusion parts, two electrical control parts, forming part and winding part.
2) Be able to produce 2 or 3 layers air bubble film.
3) Adopting Japanese technology and high density.
4) Be able to manufacture various specifications of bubble between Φ6mm and Φ30mm and forming mould with different heights.
5) Be able to manufacture various width specifications of air bubble film machines between 1000-2500mm.
2.Finished Product of air bubble wrap machine

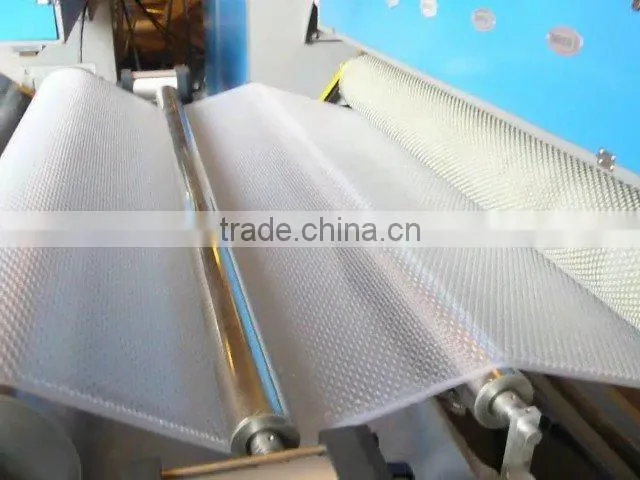

This final product is air bubble film, so popular as a kind of packaging material.
It enjoys such advantages as below:
1) good shock absorption capability
2) impact resistance
3) heal sealing capability
4) corrosion resistance
5) good diaphaneity performance
You can see the pe air bubble film almost everywhere.
There is a very big market for air bubble film in the world!
3.Outstanding Features of air bubble wrap machine
1) High output. The output is much higher, at least 30%.
2) The cooling effect is more ideal, it can control the temperature of the mould effectively
and make sure the air bubble film is of high quality.
3) At the same time, that can improve the output of the air bubble film greatly.
4.Model & Main Technologies Parameters of air bubble wrap machine:
|
Model |
MX-B100T |
MX-B150T |
MX-B160T |
MX-B200T |
MX-B250T |
Raw Material |
LDPE / LLDPE / RECYCLE MATERIAL
|
||||
Max. Width |
1000mm |
1500mm |
1600mm |
2000mm |
2500mm |
|
Screw |
Φ65mm |
Φ75mm |
Φ75mm |
Φ85mm |
Φ110mm |
Max. Speed |
1200m/hr |
1200m/hr |
1200m/hr |
1100m/hr |
1000m/hr |
Max. Output |
180kg/hr |
270kg/hr |
288kg/hr |
330kg/hr |
375kg/hr |
Total Power |
102kw |
124kw |
142kw |
190kw |
230kw |
Consumption Power |
30~40kw |
38~48kw |
42~52kw |
68~88kw |
88~118kw |
Layers |
3 |
3 |
3 |
3 |
3 |
Weight |
5800kg |
6700kg |
6800kg |
9800kg |
11000kg |
5.Package condition of air bubble wrap machine
1)a steel pallet to protect the machine at the bottom
2)wrap the whole machine by air bubble film
6.Delivery condition of air bubble wrap machine
within 30 days after receiving the bank slip of deposit
