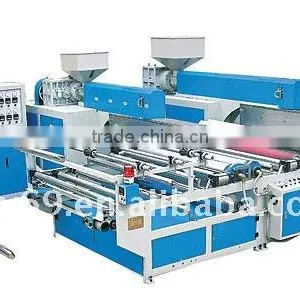

plastic PE film blowing machine

Specifications

This machine can produce 2- layer, 3-layer or 5-layer air bubble film, also can laminate Al foil, craft paper, PE foam or others

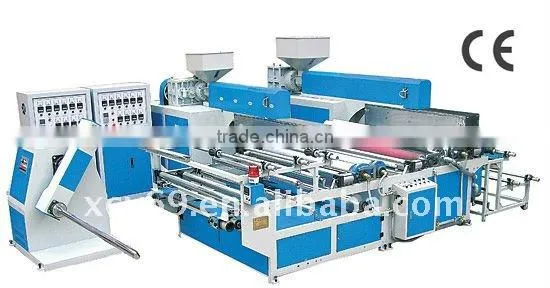

plastic PE film blowing machine



Introduction



1. Main parts: three extrusion parts, three electrical control parts,one aluminized film unwinding units, forming part and winding part;

2. Be able to produce seven layers

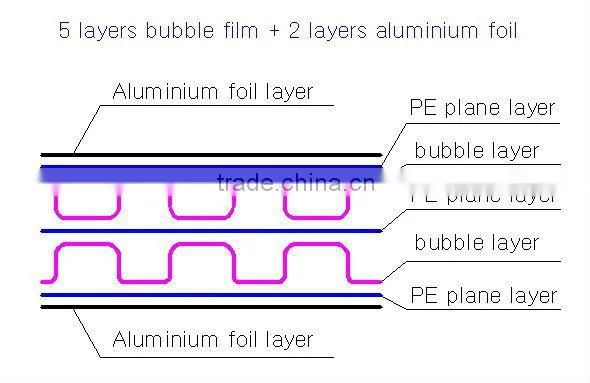

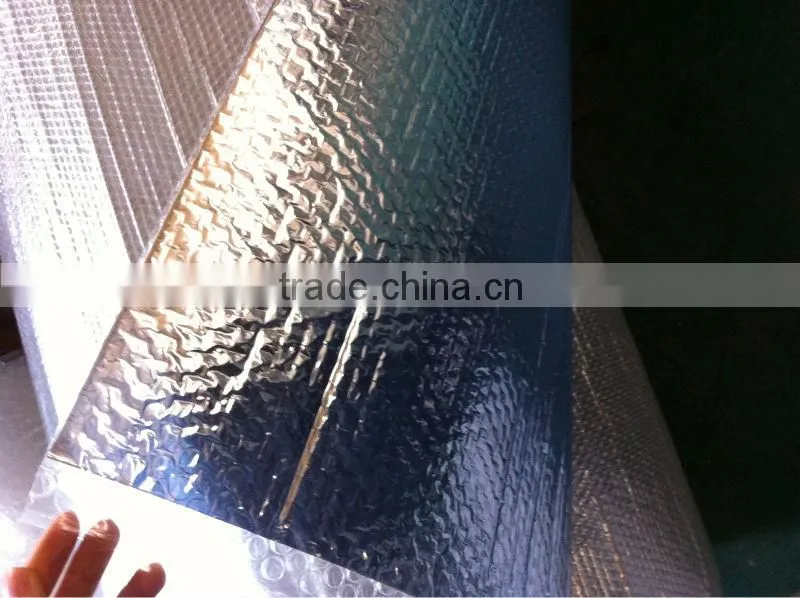

3. Same natures with air bubble film machine, this machine can produce two, three or five layers air bubble film, can laminate the bubble film with aluminum film, brown paper and other with PE thin film into seven layers laminated films with special use.





4. Adopting Japanese "Nano" technology and high density, anti high temperature silica rubber roller to laminate film, the film will not stick to the rubber roller, pressing film smoothly, good laminated result to the brown paper and aluminum film.

5.. Be able to manufacture various specifications of bubble between Φ6mm and Φ30mm and forming mould with different heights.

6. Be able to manufacture various width specifications of air bubble film machines between 1000-2500mm.



Other Features



Magnet Tension Control Lamination Rack                          Auto Edge Wastage Crusher





Auto  Cutting and  Winding                                      Inner Water Cooling Bubble Roller



Technical Parameter



Model	MX-B120SA		MX-B150SA	MX-B250SA
Screw diameter mm	Φ 75	Φ 75		Φ 75
Ways of changing net	simple
Width mm	1200	1500		2500
Max output kg/hr	145	150		280
Max effciency m/hr	1000	1000		1000
Total power kw	124	130		235
Consumption power kw	58~78	60~80		75~95
Layer	5	5		5
Weight kg	6700	10500		11200
