Specifications
1. inner water cooling mould, good cooling effect; 2. fast producing speed; 3. good product quality.Introduction
1) Can produce films with various bubble sizes from φ6mm---φ32mm, by changing the roller.
2) Can be customized to make laminated film with aluminized film and, foamed PE sheet.
3) Strengthened chilling function with water and wind together, which greatly improved production efficiency. The strong chilling function makes the bubble more transparent and stereoscopic. The wind also dries out the film to make it ready for the next step processing.
4) Variable speed drive can greatly reduce energy consumption
Air bubble production line is mainly used to poduce PE air bubble film with LDPE.

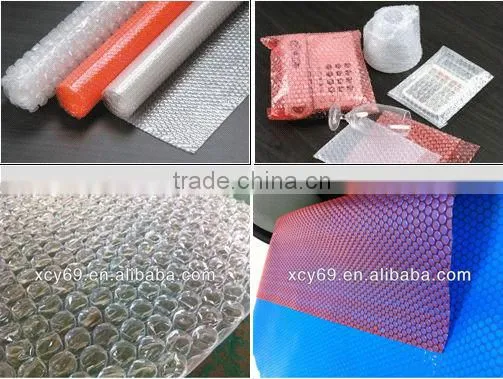

This final product is popular as a kind of packaging material. It enjoys such advantages as good shock absorption capability, impact resistance, heal sealing capability, corrosion resistance and good diaphaneity performance, etc.
This machine can prodcue two layers air bubble film with the max width 1500mm, shorter film can be also made by inserting a deckel in the die lip.
Other Features

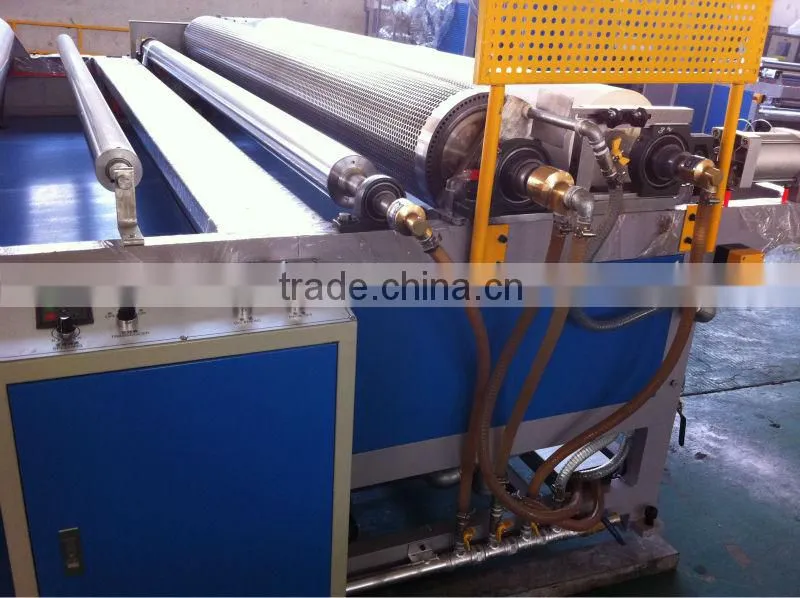

Auto Cutting and Winding Inner Water Cooling Bubble Roller
Inner cooling water recycling forming roller,the effect wil be more ideal, the bubble is transparent.
Main technologic parameters.
Model |
MX-B100D |
MX-B150D |
MX-B160D |
MX-B250D |
Screw diameter mm |
Φ 65 |
Φ 75 |
Φ 75 |
Φ 110 |
Ways of changing net |
simple |
|||
Width mm |
1000 |
1500 |
1600 |
2500 |
Max output kg/hr |
75 |
105 |
105 |
180 |
Max effciency m/hr |
1100 |
1000 |
1000 |
1000 |
Total power kw |
70 |
92 |
95 |
130 |
Consumption power kw |
30~42 |
40~55 |
42~58 |
70~90 |
Layer |
2 |
2 |
2 |
2 |
Weight kg |
3800 |
4400 |
4800 |
6500 |
