Brief Introduction of bubble machine
Air bubble machine, which can both make 2 layers and 3 layers bubble film,
the width can be manufactured between 1000mm and 2500mm.
Outstanding Features of bubble machine
High output. The output is much higher, at least 30%.
The cooling effect is more ideal, it can control the temperature of the mould effectively and make sure the air bubble film is of high quality,
at the same time, that can improve the output of the machine greatly.
Model & Main Technologies Parameters of bubble machine:
|
Model |
MX-B100D |
MX-B150D |
MX-B160D |
MX-B200D |
MX-B250D |
Raw Material |
LDPE / LLDPE / RECYCLE MATERIAL
|
||||
Max. Width |
1000mm |
1500mm |
1600mm |
2000mm |
2500mm |
|
Screw |
Φ65mm |
Φ75mm |
Φ75mm |
Φ85mm |
Φ110mm |
Max. Speed |
1800m/hr |
1800m/hr |
1800m/hr |
1500m/hr |
1500m/hr |
Max. Output |
180kg/hr |
270kg/hr |
288kg/hr |
330kg/hr |
375kg/hr |
Total Power |
102kw |
124kw |
142kw |
190kw |
230kw |
Consumption Power |
30~40kw |
38~48kw |
42~52kw |
68~88kw |
88~118kw |
Layers |
3 |
3 |
3 |
3 |
3 |
Weight |
5500kg |
6200kg |
6700kg |
8900kg |
10200kg |

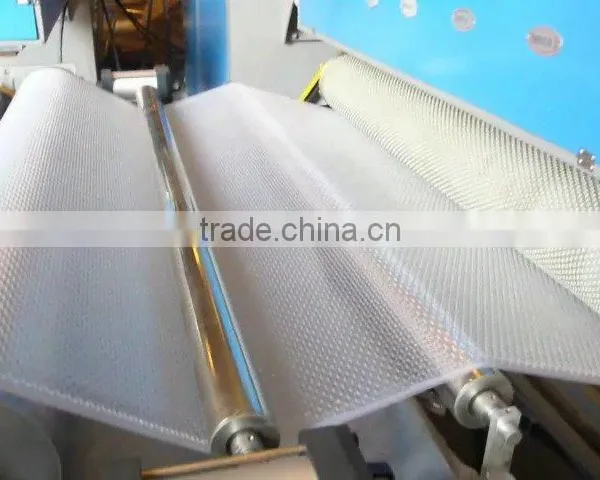

THE SAMPLE OF THE BUBBLE FILM
