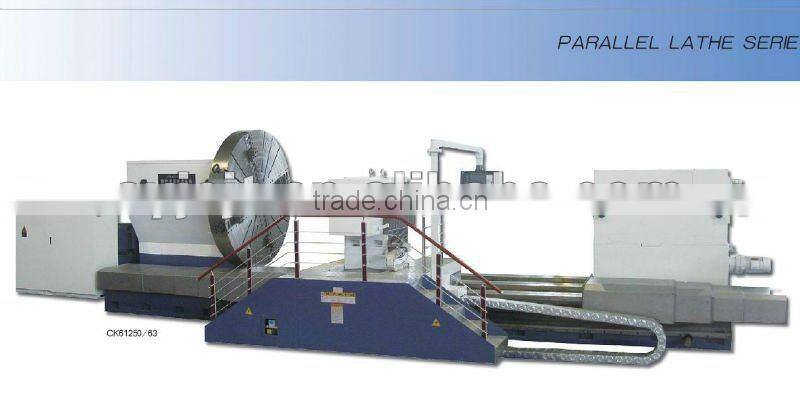

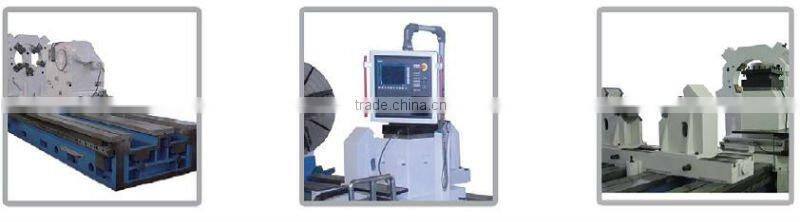

This is a type of universal NC and heavy horizontal lather which bearing 32&63 ton,it applicable to turning external and internal cylindrical surfaces, oil grooves, cutting off, boring hole,turning inside and outside conical,cylindrical , discoid parts and different kinds of screw thread to axes parts of different materials with high-speed steel and hard alloy steel cutters.This machine tool bed's structure is integral BOX-SHAPED and three strip rectangular guide way , and it is found once by high quality cast iron (HT300),through twi-aged processing ,stability is good;Width guide way surface( 1600mm/2090mm ), good rigidity , strong anti-vibration ability;It is adopt inlay steel guide way and accurate ground by import guide way grinder,guarantee the machine tool's longevity, high precision and best receptivity.
TEM |
UNIT |
CK61200/32 |
CK61250/63 |
|
Max.Swing dia.over bed |
mm |
2000 |
2500 |
|
Max.Swing dia. over slide |
mm |
1600 |
2200 |
|
Max.weight of workpiece |
T |
32 63 |
||
piece length |
mm |
3000-20000 10000 |
||
Form of bed guide way |
|
3 rectangle |
||
Span of guideway |
mm |
1600 2090 |
||
Spindle speed |
r/min |
0.8~160 0.5~125 |
||
Tool-post |
|
4 position vertical frame |
||
Diameter of Tailstock quill |
mm |
300 560 |
||
Travel of tailstock quill |
mm |
300 |
||
Taper Hole of tailstock quill |
|
1:7 1:4 |
||
Main power |
KW |
80 180 |
||
