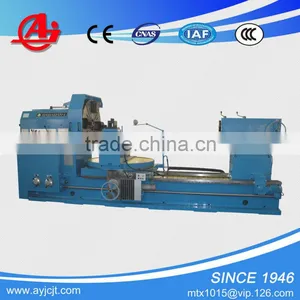

Sphere turing lathe is mainly used for the core body of its external sphere turning. Processing sphere diameter of 1000mm-1800mm. Can do finish turning, semi-finish turning, grinding and other processing work. Rectangular guide way, good stability and good rigidity. Three-axis support structure, rigidity and high accuracy can be powerful cutting. Users can choose the machine according their work-piece or take special orders.
MAIN SPECIFICATIONS |
UNIT |
C6555 |
C6595 |
C65160 |
C65180 |
Swing over bed |
mm |
940 |
1600 |
|
|
Swing over carriage |
mm |
550 |
950 |
|
|
Max. turning dia. of external spherical surface |
mm |
550 |
900 |
1600 |
1800 |
Min. turning dia. of external spherical surface |
mm |
50 |
260 |
1000 |
1200 |
Max. turning dia. of internal spherical surface |
mm |
|
850 |
|
|
Min. turning dia. of internal spherical surface |
mm |
|
200 |
|
|
Min. distance between swivel table and chuck's end face |
mm |
|
180 |
|
|
Diameter of spindle thru hole |
mm |
100 |
130 |
|
|
Taper hole of spindle |
mm |
120 |
140 |
|
|
Number of spindle speeds |
|
18 step |
21 step (reversal12 step) |
21 step (reversal 12 step) |
21 step |
Range of spindle speeds |
r/min |
6-800 |
3.15-315 |
3.15-315 |
3.15-315 |
Spindle's reverse turning speed |
r/min |
11-838 |
3.5-291 |
3.5-291 |
3.5-291 |
Swivel angle of toolpost |
0 |
± 9 0 0 |
± 9 0 0 |
± 55 0 |
± 55 0 |
Main motor power |
KW |
11 |
22 |
30 |
30 |
Net weight |
T |
4.4 |
12 |
25.4 |
27 . 4 |
Machine overall dimen: length |
mm |
3725 |
4700 |
6120 |
6220 |
Width |
mm |
1280 |
2500 |
2620 |
2720 |
Height |
mm |
1690 |
2000 |
2520 |
2620 |
