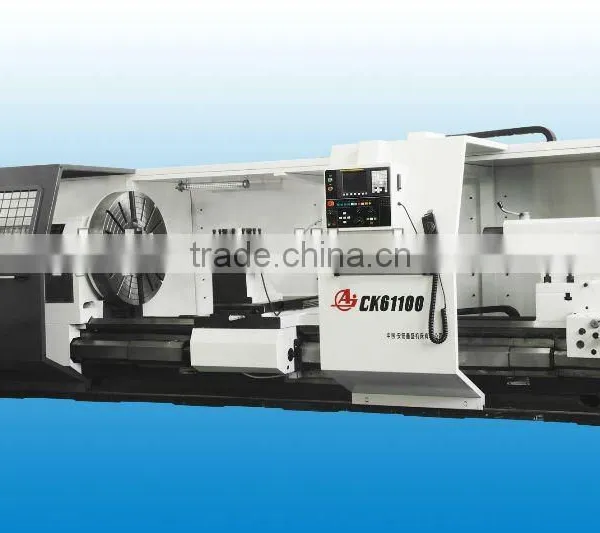

CNC Heavy Duty Lathe,CK61100 Swing 1000MM 6ton
US$ 25,000 - 160,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC Heavy Duty Lathe,CK61160 Swing 1640MM 6tonUS$ 25,000 - 160,000MOQ: 1 Set -
CNC Heavy Duty Lathe,CK61125 Swing 1640MM 6tonUS$ 25,000 - 160,000MOQ: 1 Set
-
Sphere Turning Lathe Ball Lathe C6555 50-550MM BallUS$ 30,000 - 150,000MOQ: 1 Set
-
Sphere Turning Lathe Ball Lathe C65180 1200-1800MM BallUS$ 30,000 - 150,000MOQ: 1 Set
-
Sphere Turning Lathe Ball Lathe C65160US$ 50,000 - 150,000MOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
CNC
Place of Origin
Henan, China
Brand Name
anyang xinsheng
Model Number
CK61100
Automatic Grade
Automatic
CK61100,CK61125,CK61160 and CKJ61100,CKJ61125,CKJ61160 series are economical large type CNC lathes. Spindle speeds of CK61100,CK61125,CK61160 series are changed by frequency converter in 4 hydraulic gearshifts, and it’s all manually for CKJ61100,CKJ61125,CKJ61160 series. AC servo motor is adopted in feeding system, and the tailstock is moved electrically. So these machines are ideal equipment for large and middle sized complicated workpieces precision machining in baches.
.
Main Specifications |
CK61100 CKJ61100 | CK61125 CKJ61125 | CK61160 CKJ61160 | |||
| Capacities | ||||||
| Swing over bed | mm | 1000 | 1250 | 1640 | ||
| Swing over slide | mm | 630 | 880 | 1250 | ||
| piece length | mm | 1500 3000 5000 | ||||
| Max.cutting length | mm | 1230 2730 4730 | ||||
| Span of guideway | mm | 755 | ||||
| Spindle | ||||||
| Spindle nose | A215 | A215 | A215 | |||
| Chuck | Manual | 4-jaw chuck 1000 | 4-jaw chuck1000 | 4-jaw chuck 1000 | ||
| Spindle bore | mm | 130 | ||||
| Inner taper of spindle nose /Dia.of the big end |
mm | 1:20/140 | ||||
| Spindle speed and range | CK 4400r/min CKJ 3.15315r/min (21) 3.5291r/min (12) |
|||||
| Center height from bed | mm | 500 | 625 | 820 | ||
| Feed motion | ||||||
| min.feed increment of x-/z-axis | mm | 0.001/0.001 | ||||
| Rapid speeds of x-/z-axis | mm/min | 3000/6000 | ||||
| Max.travel of x-axis | mm | 520 | 580 | 630 | ||
| Tool post | ||||||
| Tool-post working position | V4 | |||||
| Indexing time | s | 2.6 | ||||
| Indexing repeatility | "mm | 0.01 | ||||
| Size of tool shank | mm | 40 | ||||
| Tailstock | ||||||
| Diameter of Tailstock quill | mm | 160 | ||||
| Travel of tailstock quill | mm | 300 | ||||
| Taper Hole of tailstock quill | Morse | Morse 6# | ||||
| Accuracy and Acceptance conditions | ||||||
| Workpiece accuracy | IT6IT7 | |||||
| Surface roughness | µm | Ra1.6 | ||||
| Others | ||||||
| Main power | KW | 22 | ||||
| Overall demensions | 1500 | 3000 | 5000 | |||
| Length | CK | mm | 4500 | 6000 | 8000 | |
| CKJ | mm | 4500 | 6000 | 8000 | ||
| Width | mm | 2435 | ||||
| Hight | mm | 2300/2600 | ||||
| Weight | T | 9 | 11 | 13 | ||
