Low Pressure Polyurethane PU Key Chain Foaming Injection Machine
| Product Description |
| Market users most polyurethane foaming machine, has the economical, convenient operation and maintenance, etc, can be customized according to customer's request various pours out of the machine |
| Product Features of low pressure pu machine: |
|
1.Adopting three layer storage tank, stainless steel liner, sandwich type heating, outer wrapped with insulation layer, temperature adjustable, safe and energy saving; 2.Adding material sample test system, which can be switched freely without affecting normal production, saves time and material; 3.Low speed high precision metering pump, accurate ratio, random error within ±0.5%; 4.Material flow rate and presure adjusted by converter motor with variable frequency regulation, high accuracy, simple and rapid ration adjusting; 5.High-performance mixed device, accurately synchronous materials output, even mixture. New leakproof structure, cold water cycle interface reserved to ensure no blockage during long downtime; 6.Adopting PLC and touch screen man-machine interface to control the injection, automatic cleaning and air flush, stable performance, high operability, automatically distinguish, diagnose and alarm abnormal situation, display abnormal factors; |
|

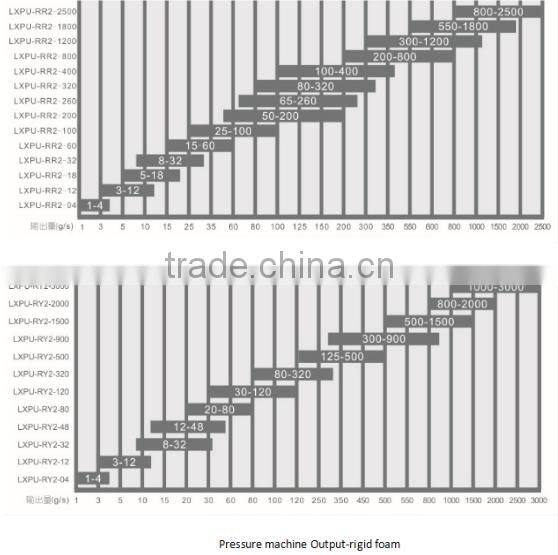

Technical Parameter of low pressure pu machine:
|
|

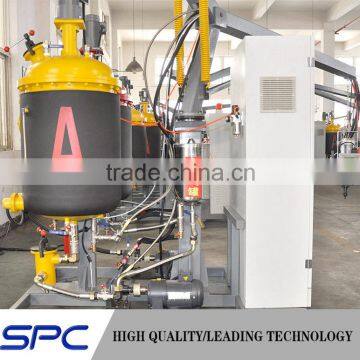

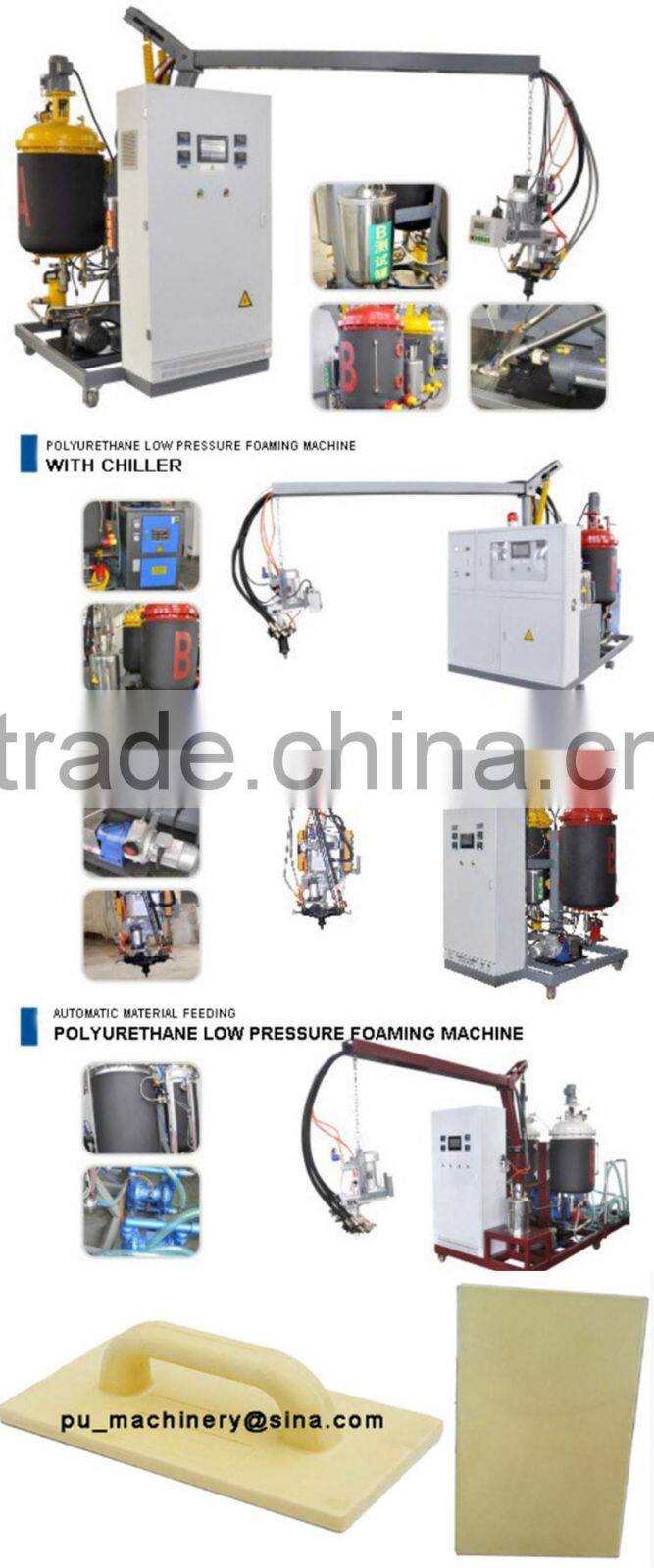

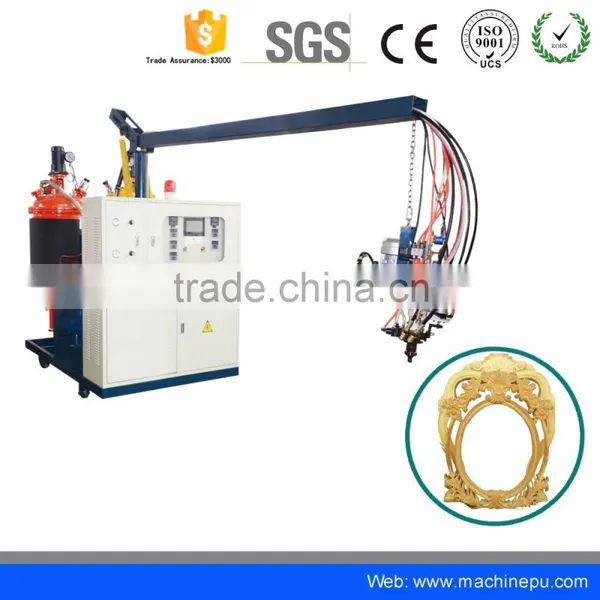

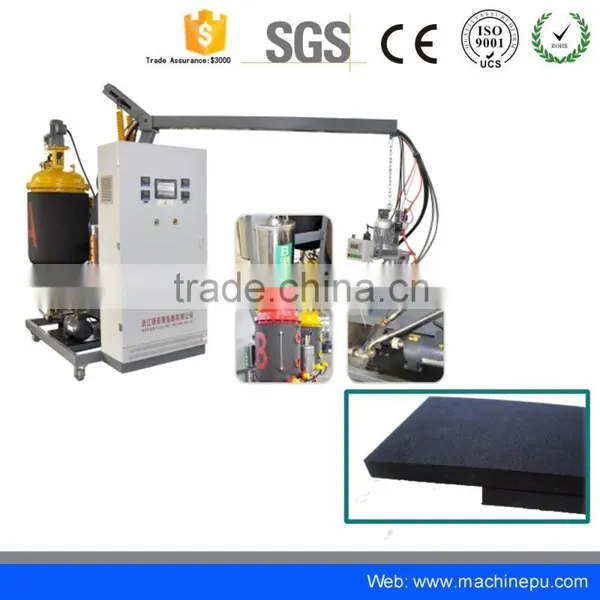

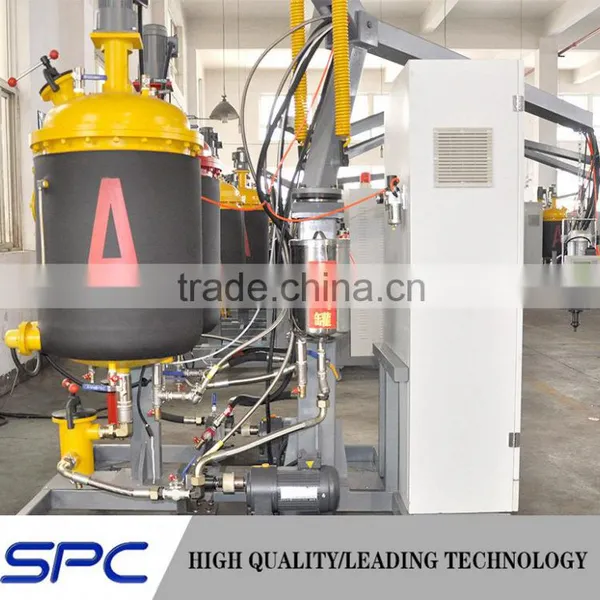

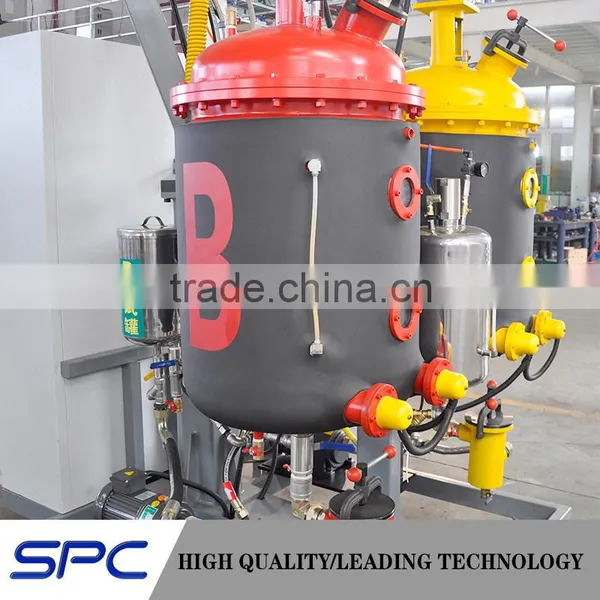

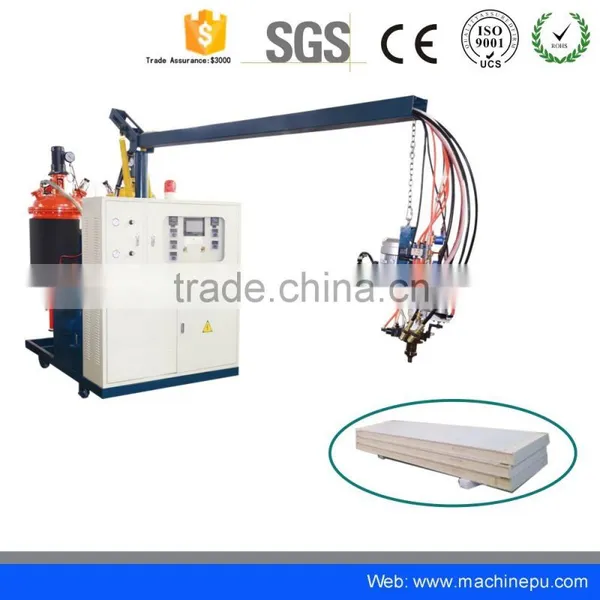

Photos of low pressure pu machine:
|
|

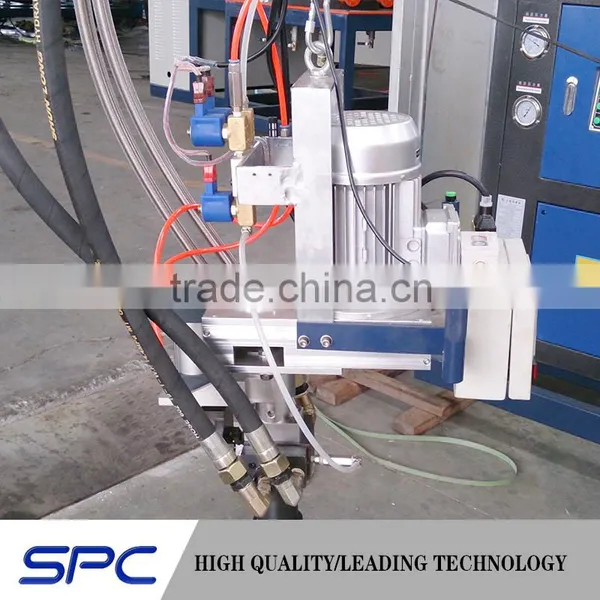

Mixing head 1. Using new type mixing means, mixing evenly, no bubble.
Metering unit 1. High precision metering pumps; Promise or frequency control system; 2. Speed ratio more convenient. Precision error ≤±1% 3. Using hot oil circulation termostat agency. Material temperature more accurate, Temperature error<±2ºC
Special device 1. Designed non-return device for elastomer perfusion 2. LXCPU series polyurethane elastomer casting machine, with vacuum degasser
Electrical control system 1. Fully controlled by SCM (Single Chip Microcomputer) 2. Using PCL touch screen computer. Temperature, pressure, revolving speed display system. 3. Alarm function with acoustic warning |
| Applications |
|

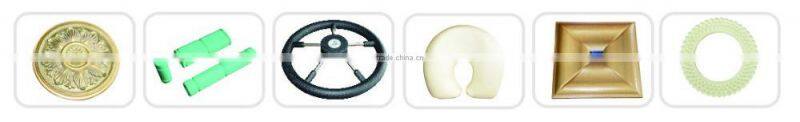

Suitable for the production of polyurethane pillow, steering wheel, bumper, self skin, high reilience, slow rebound, toys, fitness equipment, insulation layer, bicycle cushion, rigid foam, cold storage panel, medical equipment, elastomer, shoe sole, ect... Partial Case of low pressure pu machine: |
