Zhejiang Rotary Type Automatic polyurethane PU Injection Foaming Machine for shoe sole
Rotary Type Automatic PU Single Density Injection Foaming
Machine For Shoe Sole

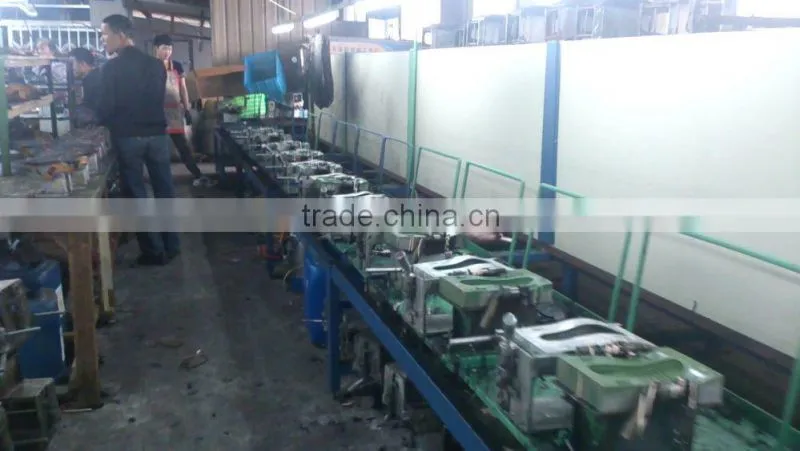

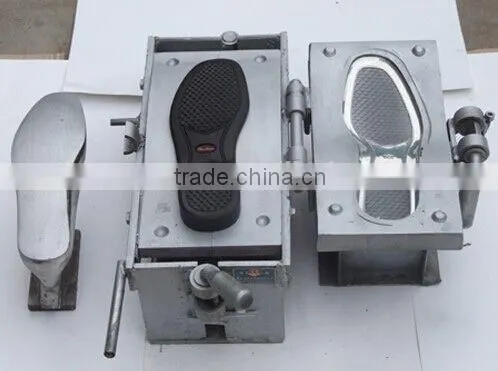

Rotary production line is our new product developed on the basis of combining the international advanced technology. It is important equipment for factory’s large-scale production. This machine can be matched with all kinds of casting machines of our factory, do continuous loading to moulds on ring production line walking trolley, implement line production to achieve the purpose of efficient production. It can be applied for the production of PU insoles, pillow, car cushion, crafts, toys and other products.
Low pressure foaming machines manufactured by us have high repeated injecting precision, even mixing, stable performance, easy operation, and high production efficiency, etc.
MAIN TECHNICAL PARAMETERS:

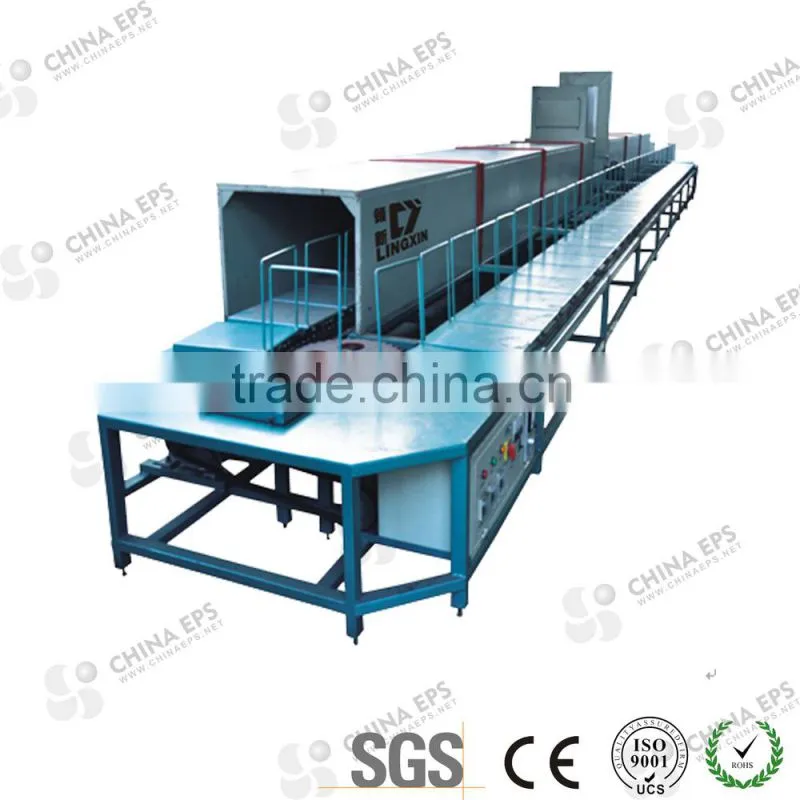

Rotary production line main technical parameters:
| Production mode | Continuous | Motor speed | 0~1600r/min |
| Trolley running speed | 3~10m/min | Total power | 36KW |
| Production speed | 0-4m/min | Heater strip qty | 6 groups |
| Equipment weight | About 1500kg | Overall Dimension | 11448×1980×1280mm |
| Trolley dimension | 600×500mm | Workbench height | 700mm |

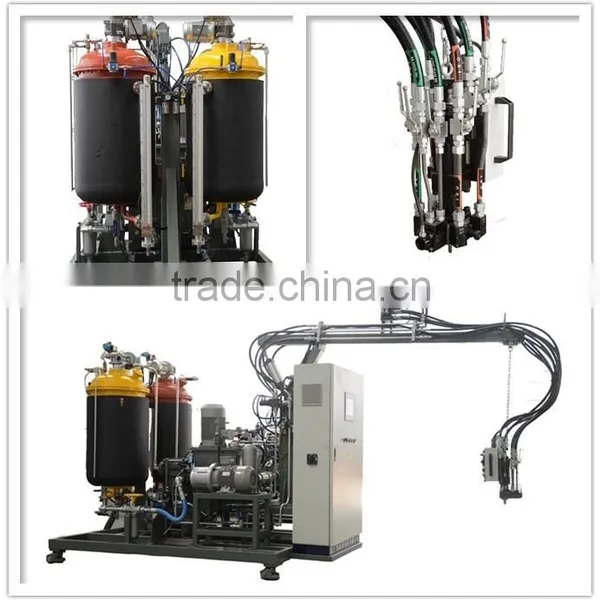

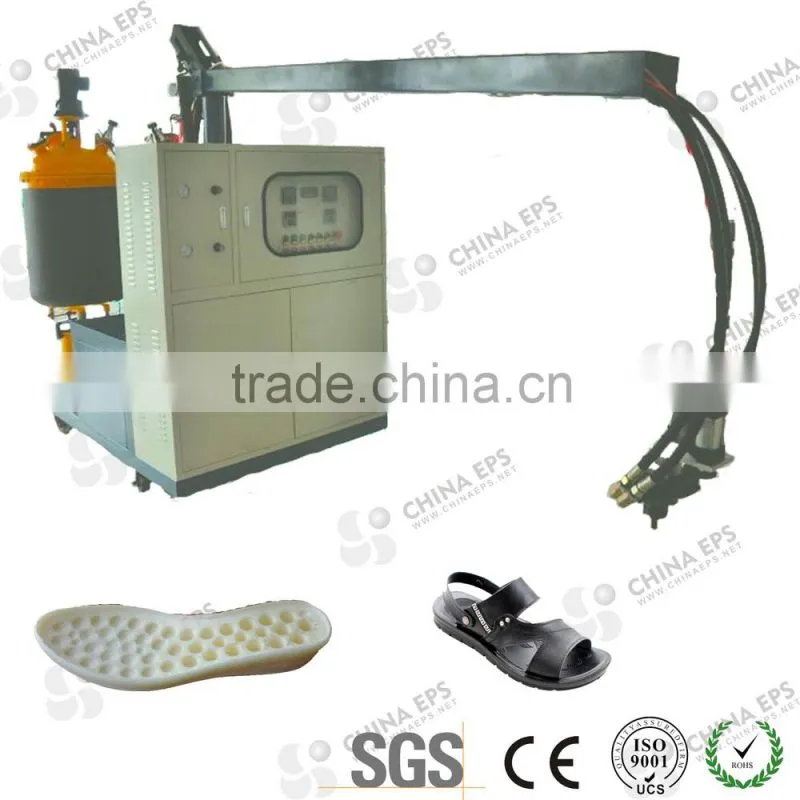

Low pressure foaming machine main technical parameter:
| Foam application | Flexible foam/Rigid foam | Nitrogen requirement | P: 0.05Mpa |
| Raw material viscosity(22℃) | 0~3000CPS | Input power | 380V 50HZ |
| Injection flow rate | As per customers’ requirement | Rated power | 15KW |
| Tank volume | 150L | Swing arm | 180° rotatable, reach out 2.5M |
| Metering pump | JR and GPA series | Volume | 4100(L) x 1500(W) x 2500(H)mm |
| Compressed air needed | Dry, oil free P:0.6-0.8Mpa | Color | Cream-colored/orange/deep sea blue |
STRENGTHS OF FOAMING MACHINE:
Mixing head
1. Using new type mixing means, mixing evenly, no bubble.
Metering unit
1. High precision metering pumps; Promise or frequency control system;
2. Speed ratio more convenient. Precision error ≤±1%
3. Using hot oil circulation termostat agency. Material temperature more accurate, Temperature error<±2ºC
Electrical control system
1. Fully controlled by SCM (Single Chip Microcomputer)
2. Using PCL touch screen computer. Temperature, pressure, revolving speed display system.
3. Alarm function with acoustic warning
PHOTOS:
Different hardness range selection, different applications.
Household supplies ------ vacuum cup, water heater, disinfecting cabinet, sporting goods, toys
Mining, metallurgical------ sieve plate, shaking table, roller shutter
Mechanical Industry------- rubber roller, tape, seals and others, precision instruments
Automobile Industry--------auto parts, tires, seals, air filter gasket, automotive interior

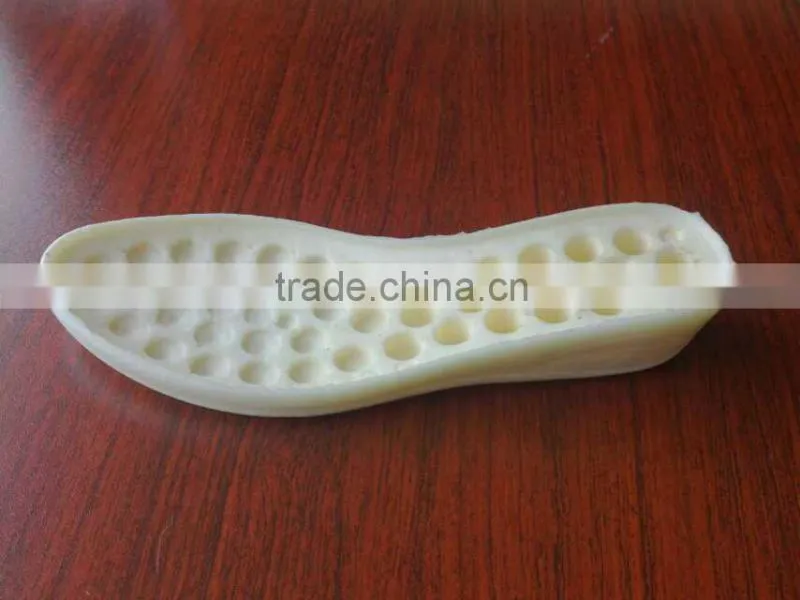

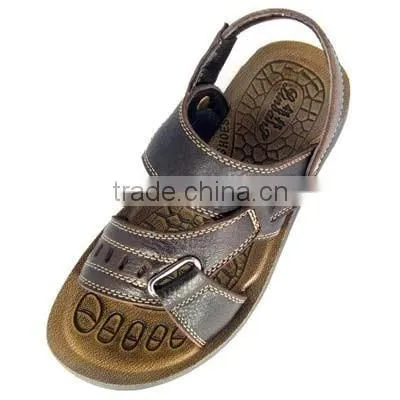

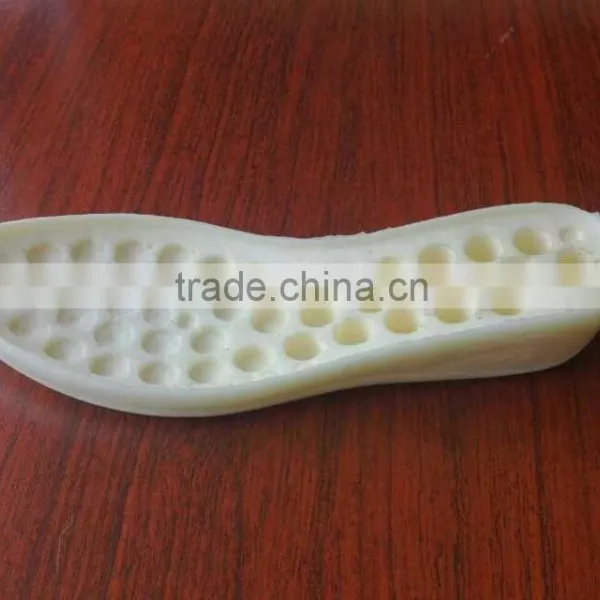

Light Industry----------------PU shoe sole, memory pillow, mattress, photo frame
Insulation Industry ---------PU sandwich panel, refrigerator, pipe insulation, lab equipment
We can supply rotary machine.
Machines will be packed in sea worthy plywood box, shiped by sea or by train.
1. We are the biggest pu machine manufacturer in China!
2. We provide most professional technology for you!
3. High quality with very competitive price
4. Best technology guidance and after service
OUR COMPANY:
♦ We are the biggest polyuretahne foam machine manufacturer in China, also professional pu raw material provider with technical solution supported!
♦ We have a group of most experienced engineering engaged in pu machine R&D. Awarded as"PU Integrated Solution Expert" we have gained great reputation in domestic market.
♦ Passed ISO9002 certification, EU RoHS and CE certificates, we can ensure you a reliable quality management.
♦ Main machines include:
- low pressure pu foaming machine
- high pressure pu foaming machine
- pu elastomer casting machine
- automatic filter gasket casting machine
- pu sandwich panel machine
- refrigerator door and cabinet foaming line
- rotary pu production line
