Product Details
Place of Origin: | Jiangsu, China | Brand Name: | SSI | Model Number: | SSI |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
China high quality pu polyurethane sandwich panel line machine
Product Description | ||||||||||||||||||||||||||||||
This production line adopts European technology, cost reduced by technical transformation, which has high stiffness, strength, accuracy, and stability; polyurethane sandwich panel production line is used for the continuous production of polyurethane foam sandwich panel, such as polyurethane insulation panel with surface layer of non-woven cloth, cement mortar, kraft paper or aluminum foil.
Working principle of pu sandwich panel production line: Polyurethane resin, curing agent and foaming agent are delivered to high-speed mixing head in certain proportion through metering pump, evenly mixed and continuously coat an basal plate by coating head's reciprocating motion, then enter into double crawler machine with plate, foam and cure between the top and bottom layer of heated double crawler machine; when it is cured and shaped, the trimming device on both sides will get it into accurate size. Finally, the sizing following tracing cutting machine cut off it as per preset length. Technical parameter of pu sandwich panel production line:
Main parts of pu sandwich panel production line:
Automatic control of pu sandwich panel production line: Automatic control system includes uncoil area control, double crawler forming machine and drying cutting area control, the whole control system is operated through touch screen parameter input and buttons to realize automation production with reliable and stable preformance, simple and easy opeartion, Each operating position is installed with emergency stop button to ensure equipment and personal safety in case of an emergency, The adopting of new technology realizes high accuracy, high intelligence, and high speed control.
Product features of pu sandwich panel production line: 1. Wide application: Ddouble sided color steel tile, one side color steel, the other side soft material panel, one side soft material panel, etc. 2. Fully automatic 3. Technology advantage: The whole line is designed by adopting European technology and developed by our company, can reduce the cost, and improve the machine strength, accuracy and stability. 4. The electrical control system adopts international advanced brand, reliable and less malfunction. 5. The pu sandwich panel is more smooth and has better core density.
Product structure diagram of pu sandwich panel production line: | ||||||||||||||||||||||||||||||
PHOTOS: | ||||||||||||||||||||||||||||||
Applications | ||||||||||||||||||||||||||||||

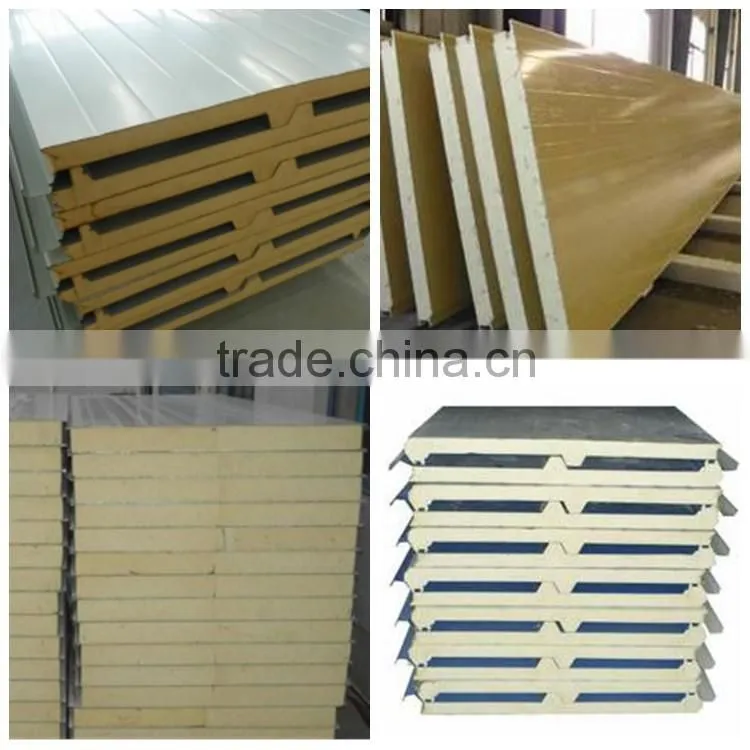

1. PU Sandwich Panel-------inside wall decorative panel, cold room panel, ceiling, roof insulaion panel, wall insulation panel, prefab house 2. Air duct-------central air-conditioning air duct 3. Pipeline insulation, tank insulation | ||||||||||||||||||||||||||||||
Packaging and shipping | ||||||||||||||||||||||||||||||
Machines will be packed in sea worthy plywood box, shiped by sea or by train. | ||||||||||||||||||||||||||||||
