China 2016 new continuous pu cold room sandwich panel machine
This production line adopts European technology, cost reduced by technical transformation, which has high stiffness, strength, accuracy, and stability; polyurethane sandwich panel production line is used for the continuous production of polyurethane foam sandwich panel, such as polyurethane insulation panel with surface layer of non-woven cloth, cement mortar, kraft paper or aluminum foil.
Working Principle of pu production line:
Polyurethane resin, curing agent, and foaming agent are delivered to high-speed mixing head in certain proportion through metering pump, evenly mixed and continuously coat on basal plate by coating head's reciprocating motion, then enter into double crawler machine with plate, foam and cure between the top and bottom layer of heated double crawler machine; when it is cured and shaped, the trimming device on both sides will get it into accurate size. Finally, the sizing following tracing cutting machine cut off it as per preset length.
Equipment Composition of pu production line:
This production line consists of two sets of new type double head uncoiler, one set of preheating device, one
PU high pressure foaming machine a, one mobile casting machine a, one set of side paper device, one laminating conveyor, one set (electricity, steam) heated air circulation device, one band center slitting trimming machine, one automatic tracking cutting machine, mill frame, etc.
Automatic Control of pu production line:
Automatic control system includes uncoil area control, double crawler forming machine and drying cutting area control, the whole control system is operated througth touch screen parameter input and buttons to realize automatic production with reliable and stable performance, simple and easy opeartion. Each opearting position is installed with emergency stop button to ensure equipment and personal safety in case of an emergency. The adopting of new technology realizes high accuracy, high intelligence, and high speed control.
Product Features of pu production line:
Good Extensibility: Drying, stacking, and packaging device unit can be added. The line is suitable for automatic production of double-side color plate sandwich panel, color plate and soft surface layer sandwich, all kings of sandwich panel;
Technical advantages: The whole production line is designed as per European technical data, cost reduced by technical transformation, which has high stiffness, strength, accuracy, and stability;
The whole set of electrical control adopts world's leading system, which has reliable operation and low failure rate;
The finished products have high flatness, homogeneous core material density;
Technical parameters of pu production line:
| Production line shape size | 48000*8000mm | highest temperature | 70℃ |
| products specifications | Width:1200mm Thickness:15~100mm |
Minimun cut length | 1200mm |
| Production speed | 3-8 m/min | Diagonal accuracy | ±2mm |
| Weight | 40T | total power | 120kw |

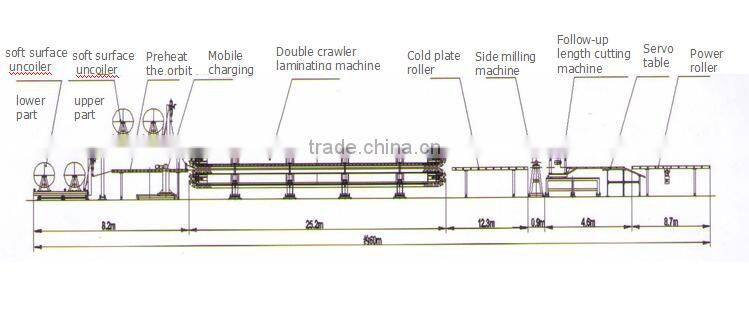

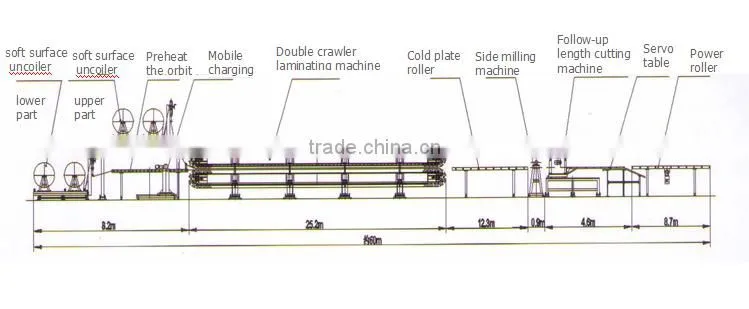

Structure Diagram of pu production line:

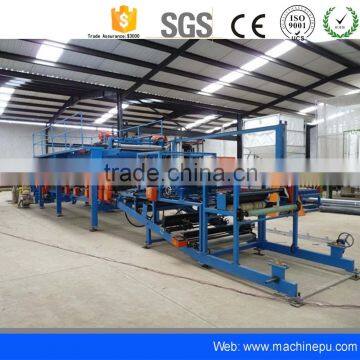

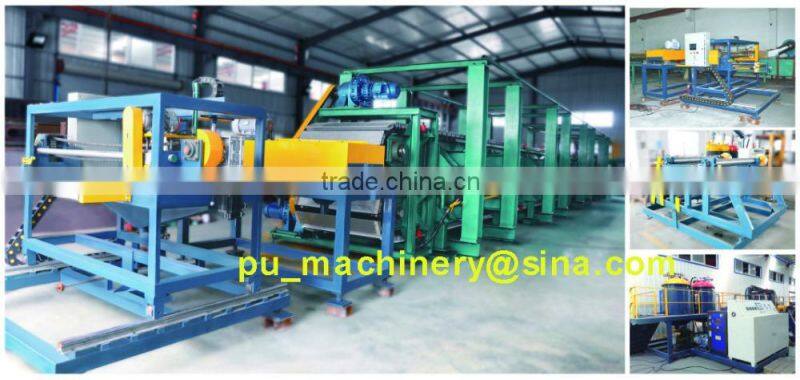

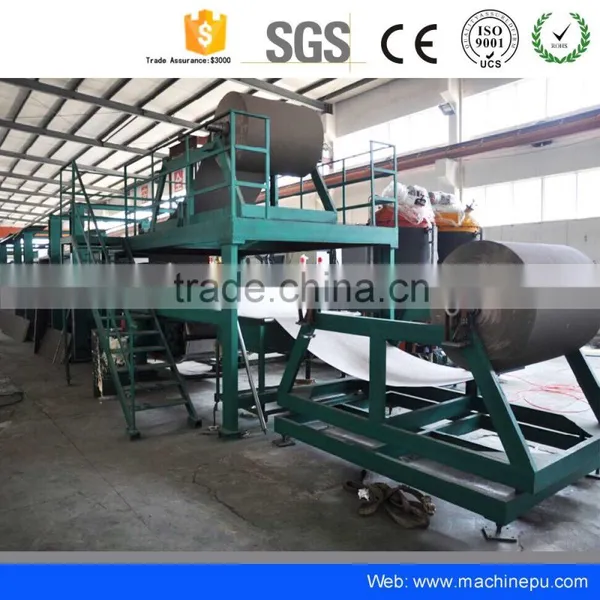

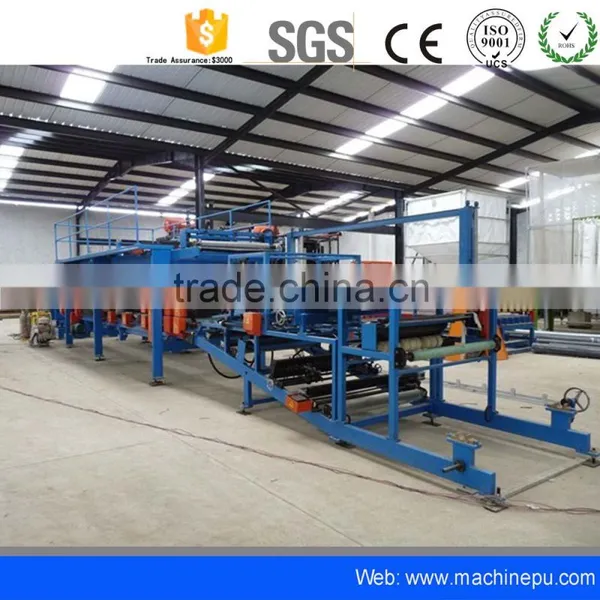

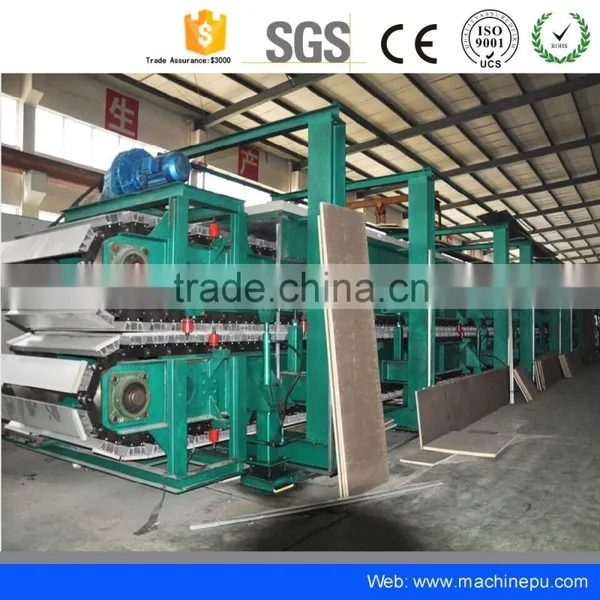

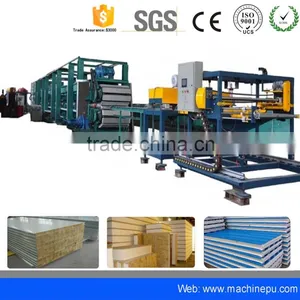

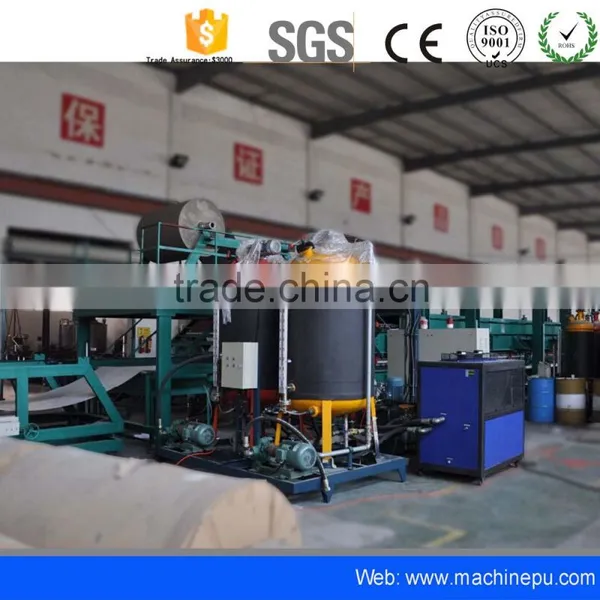

Photos of pu production line:

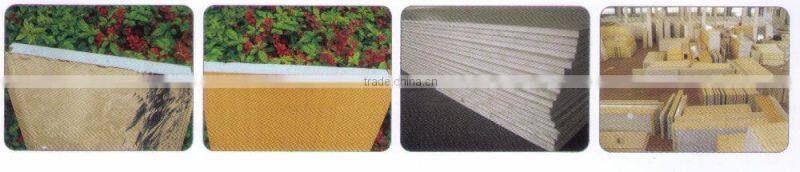

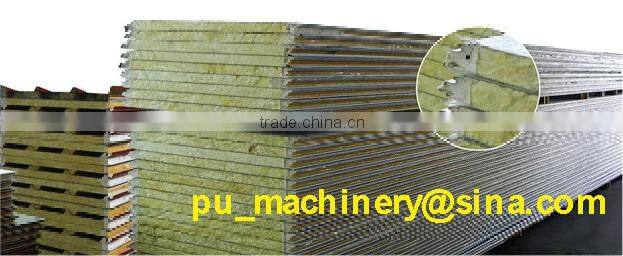

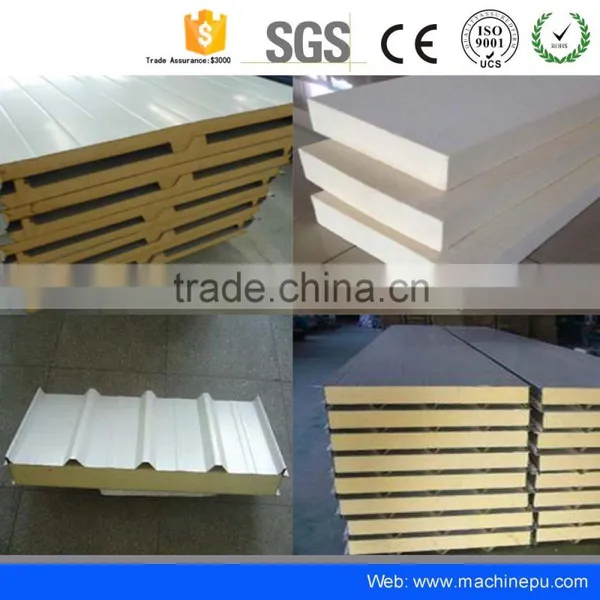

1. The plank class:
Including: interior decorating plate, cold storage board, exterior wall decoration hangs Taiwan, ceiling, roof insulation board, wall insulation board and other civil construction and steel structure construction, etc.
2. The ventilation pipe class
Main application with the central air conditioning ventilation pipe.
3. The cladding material of pipes and containers
Mainly used in petroleum, chemical industry, such as heating, municipal pipeline insulation class.

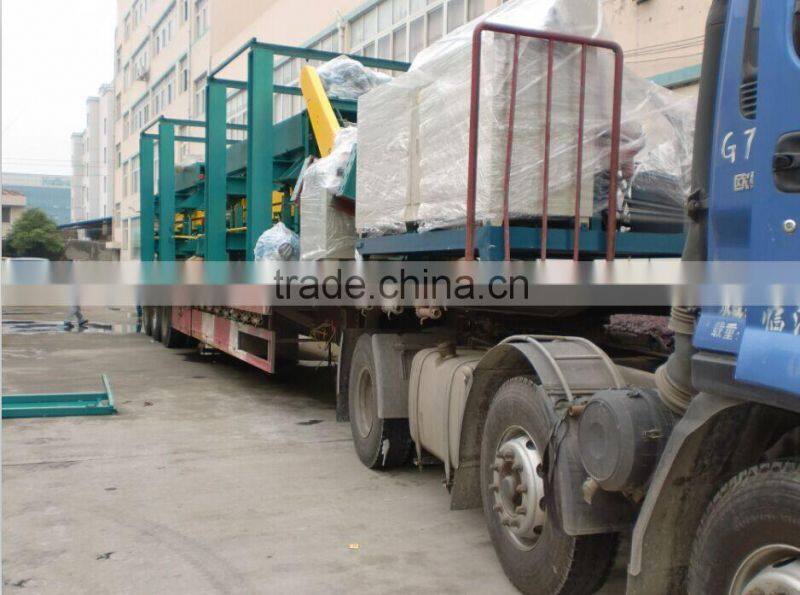

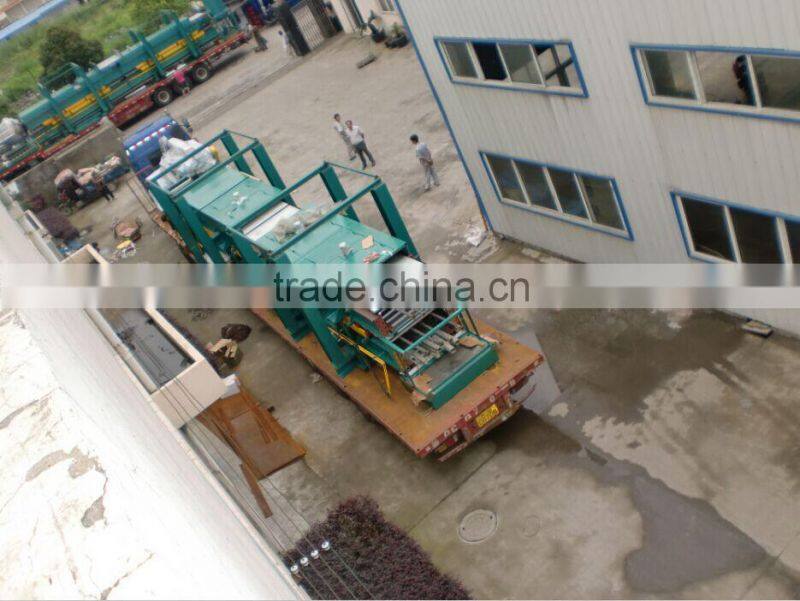

Machines will be packed in sea worthy plywood box, shiped by sea or by train.
1. We are the biggest pu machine manufacturer in China!
2. We provide most professional technology for you!
3. High quality with very competitive price
4. Best technology guidance and after service
OUR COMPANY:
♦ We are the biggest polyuretahne foam machine manufacturer in China, also professional pu raw material provider with technical solution supported!
♦ We have a group of most experienced engineering engaged in pu machine R&D. Awarded as"PU Integrated Solution Expert" we have gained great reputation in domestic market.
♦ Passed ISO9002 certification, EU RoHS and CE certificates, we can ensure you a reliable quality management.
our team:
Other machines you may interested in:
- pu low pressure foaming machine
- pu high pressure foaming machine
- refrigerator production line
- pu spray foam machine
- plastering trowel mould
- polyol mdi polyurethane pu spray foam
Skype: chinaeps1
Mob:+0086 136 5616 6310
E-mail: pu_machinery(at)
Website:
