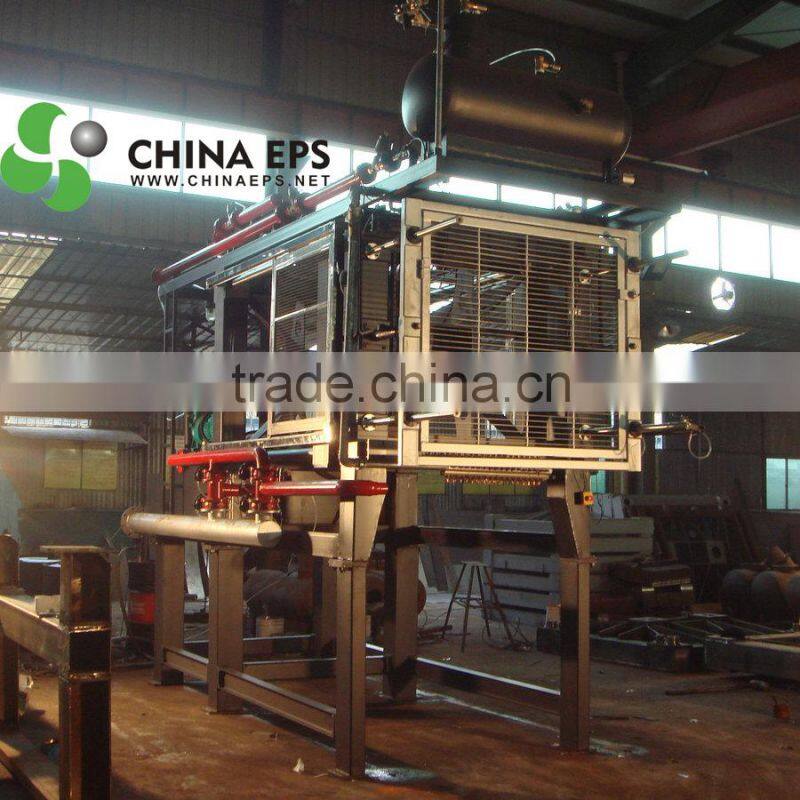

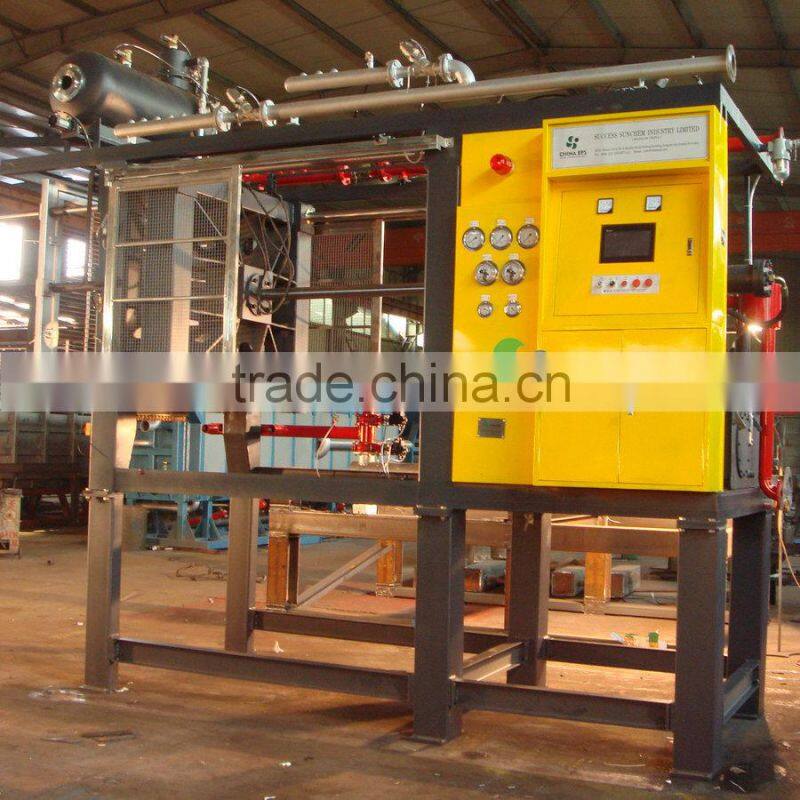

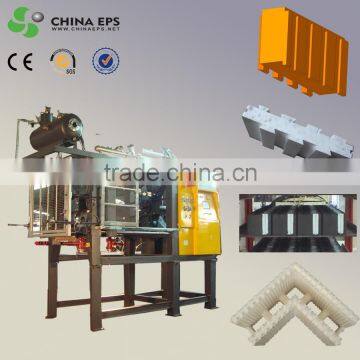

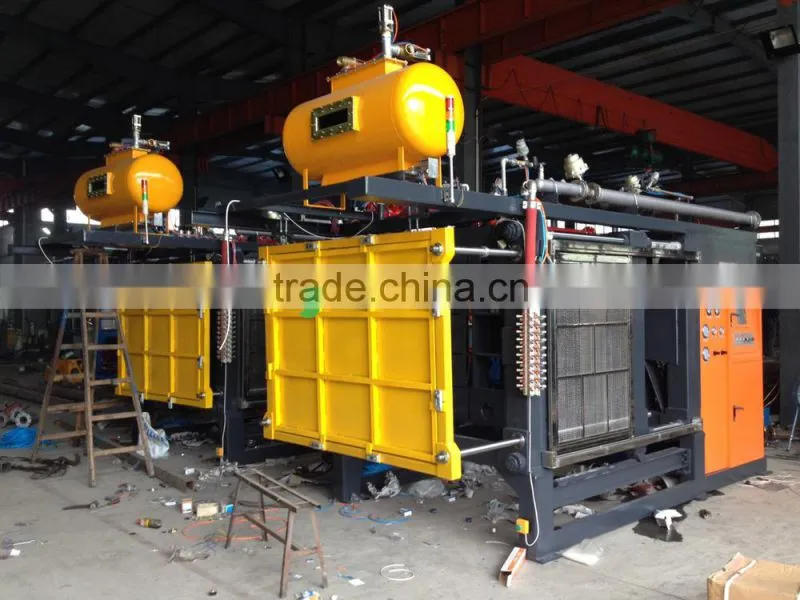

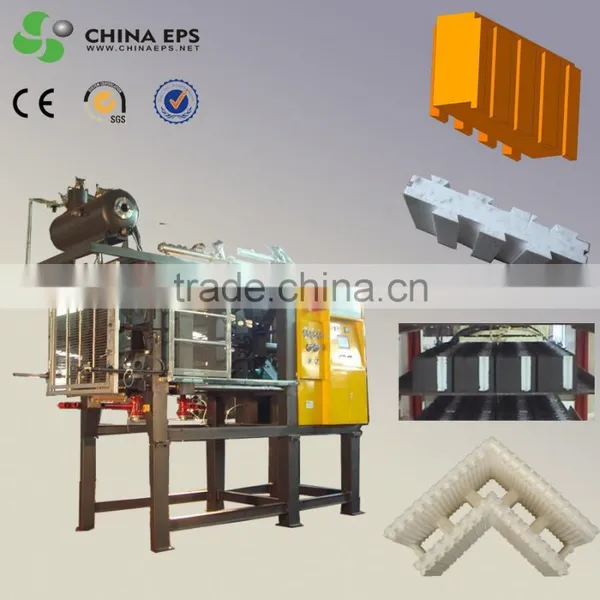

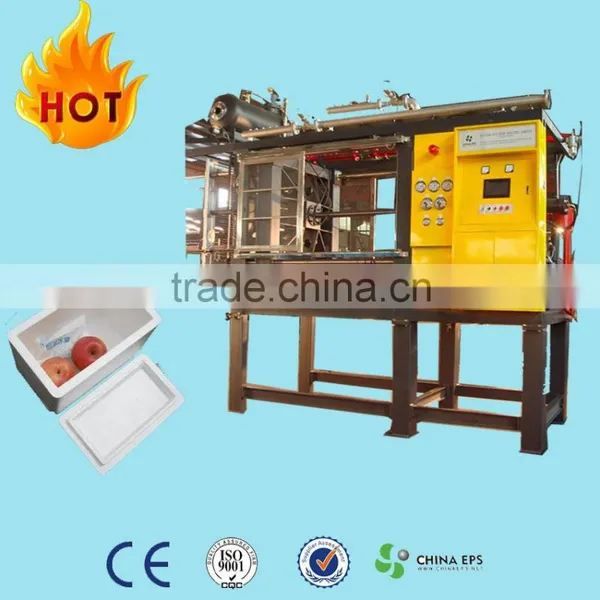

EPS SHAPE MOLDING MACHINE WITH VACUUM SYSTEM
Type:SPZ1750E
New improved type, hydraulic de-moulding
Controlled by international famous PLC and touch screen, screen in color
On control panel, different regulation valves are added for controlling pressure
Mould dimension: 1750×1450mm
Max product size: 1550×1200×350mm
Cycle time: 70-130 seconds
Steam consumption: around 8~10kg per cycle
Compressed air consumption: 2m3 per cycle
Cooling water consumption: 60ï½190kg per cycle according to different thickness of products (recycled water)
Connected load: 14.5Kw
Stroke: 220-1470mm
Machine Weight: approx. 6200kg
Overall dimension: 4970×2590×3530mm
Advantage:
1.Large Diameter steam pipeline system, control steam by low pressure and mass flow.
2.Formwork have zinc painting treatment for antisepsis-the only machine with this treatment
3. New locking system for mould to reduce the steam
leakage-Double dots mould locking system
4.Guide bush is easily to replace (especially after running for several years, normal type is very difficult to change the bush)
5. Pilot-operated steam valve
6.High speed High pressure Hydraulic system to realize shorter open and close mould time. (Mould locking force 21T, old type 18.5T) Almost can save 6seconds in this step
7.Heating control by the Balance valve together with the pressure sensor instead of the electrical contact valve, the value will display intuitionisticly on touch screen
8. With 1m higher leg as foundation
9. With bigger vacuum system for efficient vacuum
Foam Cutter /EPS Cutting Machine Photos:

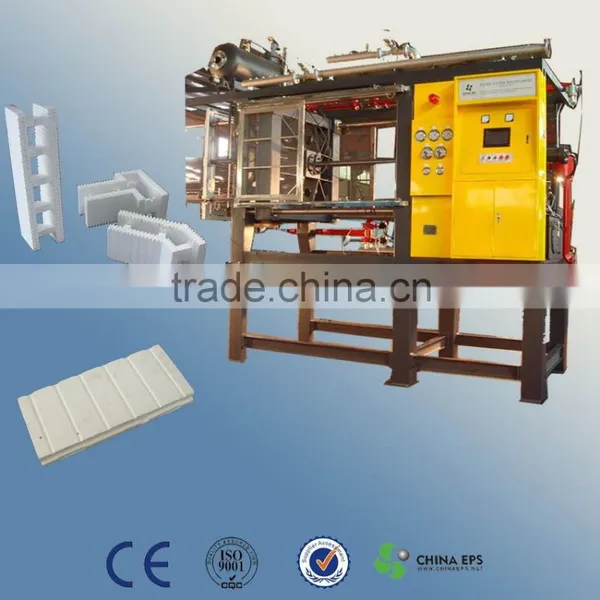

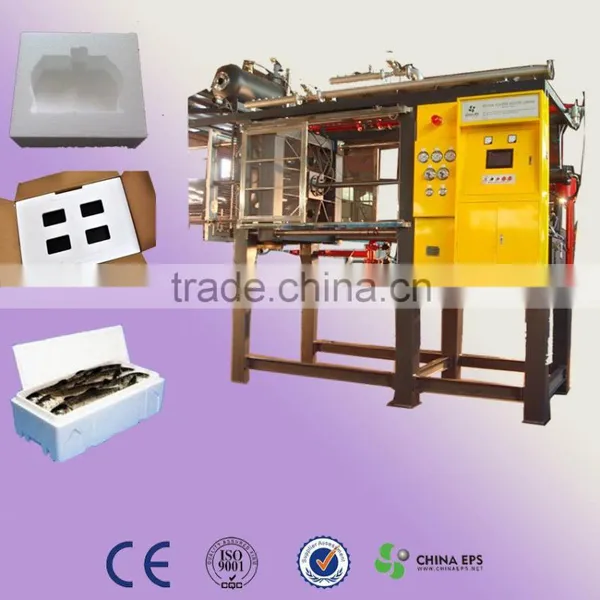

ICF/Product show:
