eps continuous foaming pre-expander manufacturing machines
Main Features of eps pre-expander machine:
1. All machines are controlled by PLC system to keep the machine work automatically.
2. Simple tube system.
3. Use 2.2kw high pressure high pressure blower during both feed and discharge. It makes higher speed
and less energy consumption.
4. Efficient screw conveyor and electronic weighting device to make higher production efficient and less
labor intensity
5. With enclosed construction, the chamber will make high efficient and save more steam and use 50%
energy less than continuous pre-expander.
6. The machine is equipped with fluidized bed dryer, including drying, automatic sieving, delumping and
material conveying to silos.
7. Most components used I the machine are of famous brand both at home and abroad.
Technical Data of eps pre-expander machine
| Item |
|
spc70 | spc90 | spc120 |
| Expansion Chamber |
Diameter Volume Useable Volume |
¢700mm |
¢900mm |
¢120mm 2.2m3 |
| Steam | Entry |
DN20 |
DN40 |
DN40 |
| Compressed Air | Entry |
DN15 |
DN20 |
DN20 |
| Drainage Condensate | ¢20mm | ¢20mm | ¢20mm | ¢20mm |
| Throughput | 15 g/l |
100kg/h |
150kg/h |
250kg/h |
| Material Conveying Line | ¢150mm | ¢150mm | ¢150mm | |
| Connected Load | 8.93KW | 9.73KW | 13.33KW | |
| Density | First expansion |
12-30 g/l |
12-30 g/l |
13-40g/l |
| Overall Dimension | (L*W*H) | 4700*2660 |
4700*2930 |
4905*4655 |
| Weight | 1300kg | 1500kg | 1800kg | |
| Room Height Required | 3000mm | 3000mm | 3000mm |

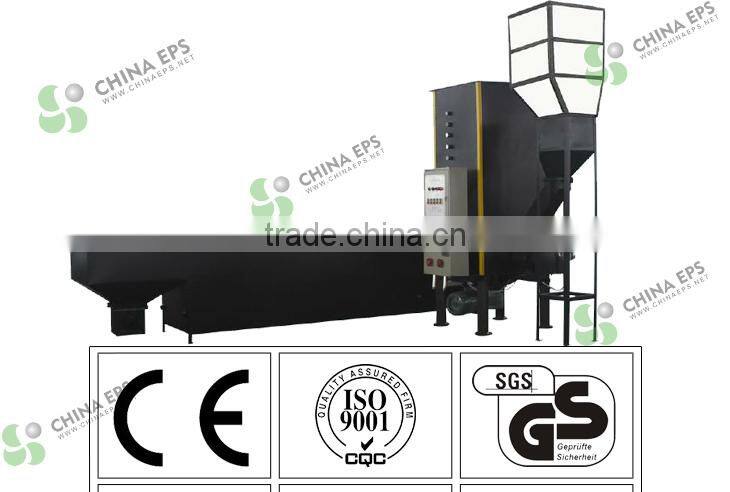

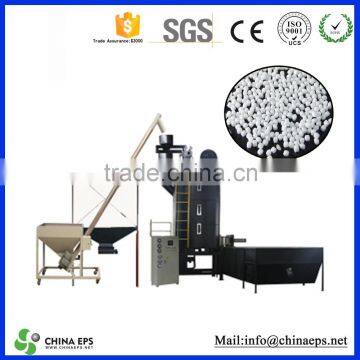

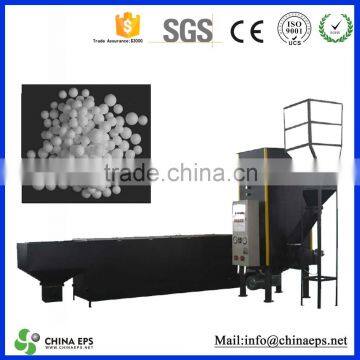

photos of eps pre-expander machine
Packing: standard exporting package
Shipping port: shanghai
Welcome to contact us for long business cooperation !
Mob: 0086 13656167290
mail:sales (at) chinaeps (dot) net
www:
MORE INFORMATION CAN BE FOUND AT OUR WEB SITE BY SCAN QR CODE . (BELOW)
