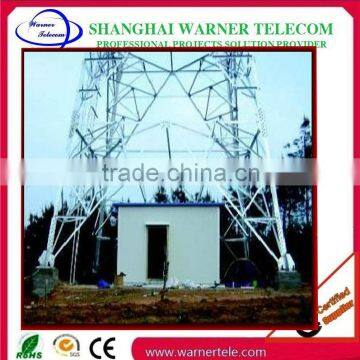

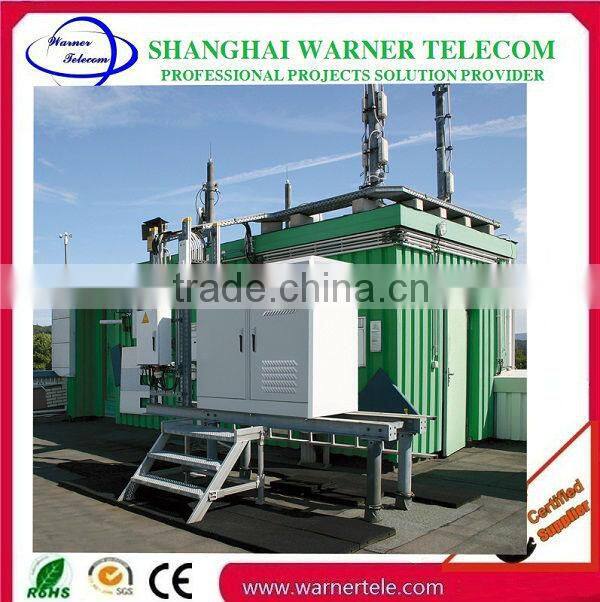

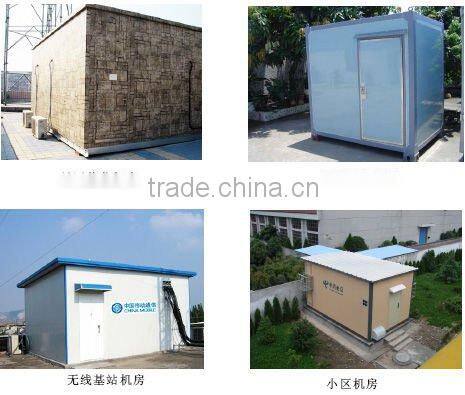

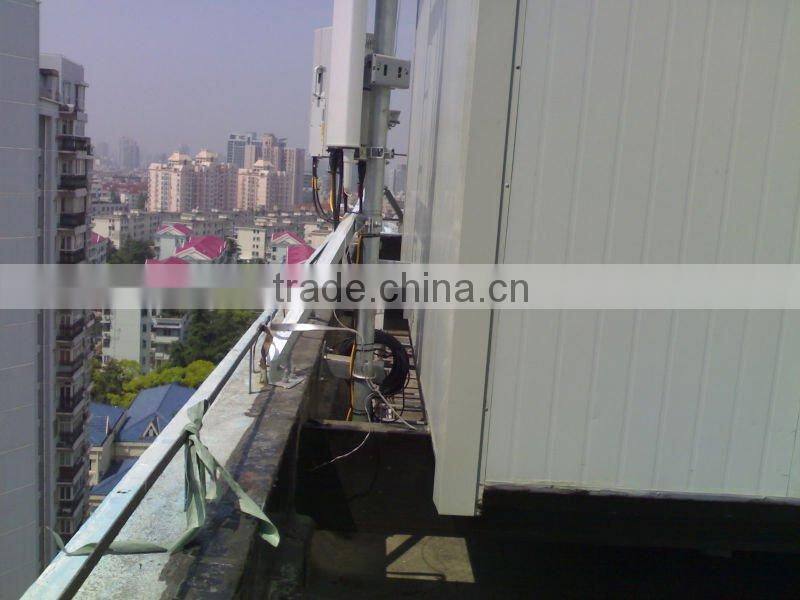

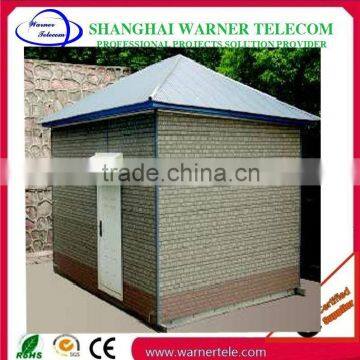

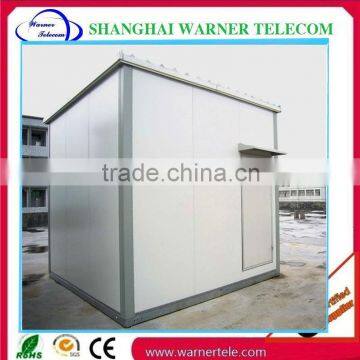

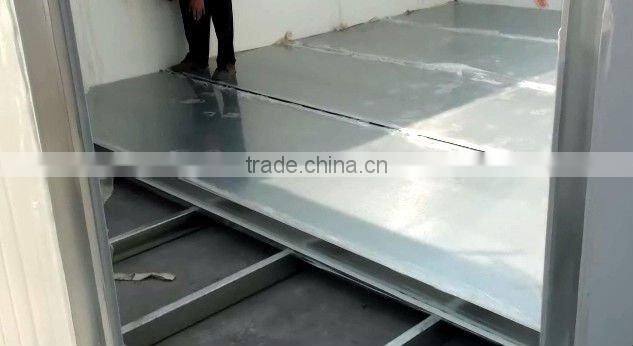

W-TEL Hybird system outdoor equipment telecom PU BTS shelter room

1

High Temperature Resistant

 -60  +80

2

Anti-wind capability

55m/s

3

Anti-sun

photochemical effect

 Seal Rubber life time : 30 Years 30

4

shock resistance

 8 Grade 8

5

 salt spray test

 4,,

salt spray test 4 days , paint slightly rust allow , no rust on zinc coat .

6

Outside shelter steel thick

 4mm

7

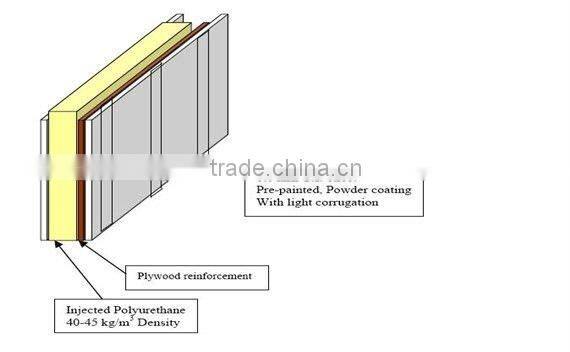

 inner interlayer thick

 0.5mm

8

Inner core materials heat transfer coefficient

 0.027W/m.k

9

Inner core materials compression strength

 100KPa

10

adherence force

 0.09MPa

11

Shear stiffness

 0.1MPa

12

Inner core materials Transverse rupture strength

 500N/m2,1/250

13

Inner core materials fire resistance

 B2

14

water absorptivity

 4%

15

Roof load

 3KN/m2

16

antistatic floor load

 600KG/m2

17

IP

 IP55

18

fire resistance

 GB8624-1997B2

According to B2 of GB 8624-1997 << Building Materials burning performance Hierarchical Methodology >>

19

Water-proof

 0.2Mpa,10mm/min,30min,

Endure water pressure 0.2Mpa; Water spray intensity :10mm/min .( for 30 min)

No leakage inside

20

relative humidity

 5%99%

21

Paint

anti-corrosive paint( For container only)

22

Load on floor

8KN/ m2
