W-TEL Telecom Cabinet Cooling Fan System for Outdoor Use

Shanghai Warner Telecom Co., Ltd.
W-TEL Telecom Cabinet Cooling Fan System for Outdoor Use thumbnail-1
W-TEL Telecom Cabinet Cooling Fan System for Outdoor Use photo-1
US$ 5 - 200 MOQ: 10 Units
Key Specifications
Get Latest Price
Electric Current Type:
AC
Mounting:
Wall Fan
Blade Material:
Plastic
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Mounting Wall Fan
Blade Material Plastic
Place of Origin Shanghai, China
Brand Name W-TEL
Model Number W-TELWW9
Voltage 48V
Power 220V
Air Volume 3000RPM
Speed 200CFM
Certification CE

Specifications

DC cabinet cooling fan
CE certified
bearing type and low noise design
Type: Axial Flow Fan
outdoor use

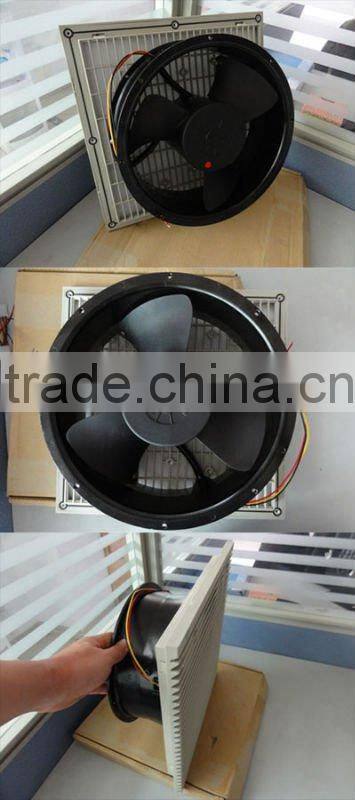

 W-TEL telecom cabinet cooling fan system for outdoor use

Axial DC cooling Fan of metal flabellum TA15052 Series





General Data

W-TEL telecom cabinet cooling fan system for outdoor use



DC cooling fan for thermal solution

cooling fan for outdoor use

Cabinet cooling fan

Industrial cooling fan
CE certified
bearing type and low noise design
Type: Axial Flow Fan
outdoor cabinet use





Electric moltor:

Shaded pole type DC electric motor design
Frame:High quality aluminum alloy outside frame
Anti-corrosive and moisture proof structure
Impeller:UL-0 70% PBT+30FRP.
Bearing:self lubricating bearing and ball bearing
Insulation:class B
Insulation impedance:the case adds 500V DC to the coils,insulation impedance 100 higher
Dielectric strength:0.5mA 1500V/ACmin.
Safety protection:Impedance protection
Operating temperature:-10-+70°C
Storage temperature:-40-+70°C



TechnicaI  parameter

Dimension
(mm)

Model

Voltage
(VAC)

Frequency
(Hz)

Current
(AMP)

Power
(Watts)

Speed
(RPM)

Air Flo
(CFM)

Pressure
(inch/H2O)

Noise
(dBA)

Weight
(Gram)

152×172×52

TA15052MBL-1

115

50

0.33

25

2500

180

0.38

49.6

900

TA15052HBL-1

115

60

0.38

29.8

2700

195

0.52

53

900

TA15052MBL-2

230

50

0.18

25

2500

180

0.38

49.6

900

TA15052HBL-2

230

60

0.20

31

2700

195

0.52

53

900

TA15052MBL-3

380

50

0.14

25

2500

180

0.38

49.6

900

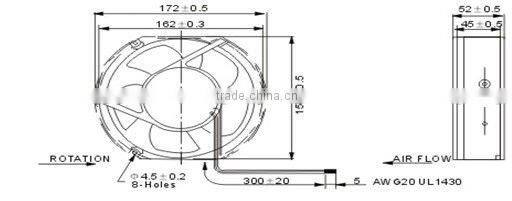

Outline Drawing





We are a hi-tech enterprise (headquarter - Hong Kong) which is specialized in R&D, manufacturing, marketing of communication network physical connection equipment, providing a full range of physical connection solutions and products. Nowadays, the main products of our company are Fiber Optic Closure, Optic Fiber distribution (Terminal) Box, Optical Passive Components. During these last years we have successfully R&D the outdoor telecom cabinet (fan type, heat exchange type and air-conditioner type) and the FTTx solving project. Our products are widely used in the industries of telecom, Netcom, china mobile, underground, highway, airport project and the controlling system of railway.

Our company has been accredited the certification of quality management system of ISO9001:2000 and the TLC.
