CLZ7-J Vertical Marine Axial Flow Blower
- QINGDAO/SHANGHAI/TIANJIN/GUANGZHOU and so on
- T/T L/C D/P D/A Credit Card PayPal Cash Other
- 10 days
You May Like
Product Details
Brand Name | YAOSEN | Place of Origin | China | |
Model Number | CLZ7-J | Certification | Other, CCS/BV/LR/VR/KR and so on | |
After-sales Service Provided | Overseas service center available | Voltage | 220V/380V | |
Power | 1.53 KW | Speed | 2900 r/min | |
Air Volume | 6000 m³/h | Blade Material | Other, aluminum | |
Mounting | Duct Fan | Electric Current Type | AC |
Product Description
CLZ7-J vertical marine axial flow blower
1.General
CLZ7-J vertical marine axial flow blower (simply the blower), are designed primarily for ventilation of the machinery room and each compartment. The construction can be delivered for air supply or air exhaust, the ocean air containing salt fog or acid vapor vaporized from storage battery area. Temperature of the air transferred can not exceed 50℃.2.Construction
Motor—Built-in Motor type (to be mounted on the inner cylinder) which is manufactured by the motor factory is specially designed to suit CLZ fan construction, it is totally enclosed, natural cooled, and it is capable of standing salt spray, vibration or shocking. There are two types: ZZT-H Series DC marine motor (rated voltage 220V) and Y-H series AC marine motor (rated voltage 220/380V).
Propeller is made of carrion resistant aluminum alloy (cast), being carefully balanced and mounted directly on the motor shaft extension.
3.Working conditions
Medium temperature: -25℃ ~ +50℃
Max relative humidity: 95%
Periodical swing:±22.5°
Continued transversal incline:±15°
Continued longitudinal incline:±10°
Vibration: existent
Impact: existent
4.Model explanation
The models of blowers are expressed by the first letter of the Chinese phonetic name, the outer diameter of the vane wheel, the power and the rotational speed of the motor ,etc.
For example: CLZ7-J
Where:
C-for marine or navy
L-vertical type
Z-axial flow ventilator
7-model number
J-alternating current
5.MAIN PROPERTY PARAMETER
Model Size:CLZ7-J
Air Flow Rate:6000 m3/h;
Total Pressure:750 Pa;
Power:1.53KW;
Speed:2900 r/min;
Voltage:220/380;
Frequency:50/60Hz
Protection Grade:IP56;
Insulation Class:F;

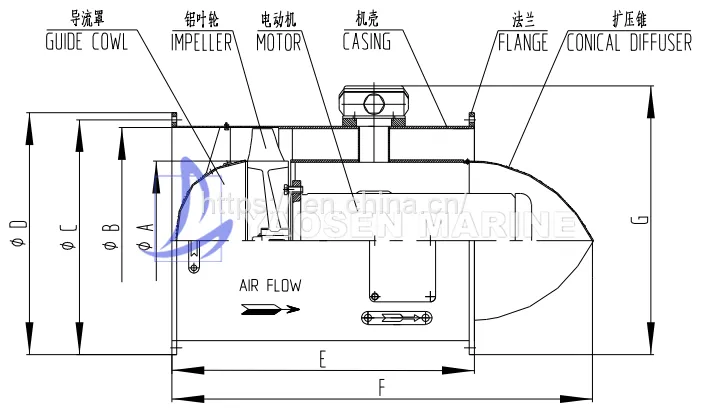

6.Outline dimensions:

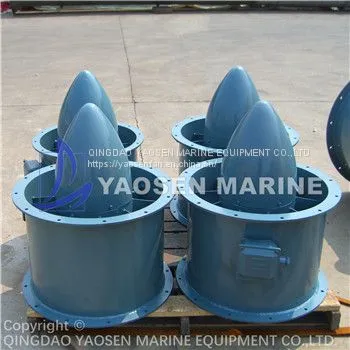

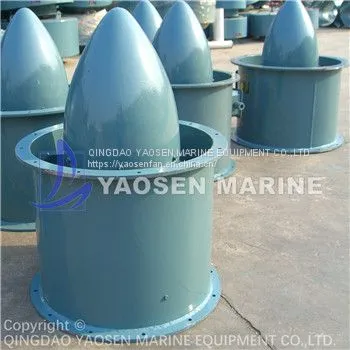

7.Physical photograph
Please contact us and get detailed Technical parameters and Drawings.
We could Design and Produce the Marine fan,Industrial Fan,and Other Ventilation Equipment according to your detailed requirement !
