CZF-140A Marine Axial Draft Fan for Control Room

CZF-140A Marine Axial Draft Fan for Control Room thumbnail-1
CZF-140A Marine Axial Draft Fan for Control Room thumbnail-2
CZF-140A Marine Axial Draft Fan for Control Room thumbnail-3
CZF-140A Marine Axial Draft Fan for Control Room thumbnail-4

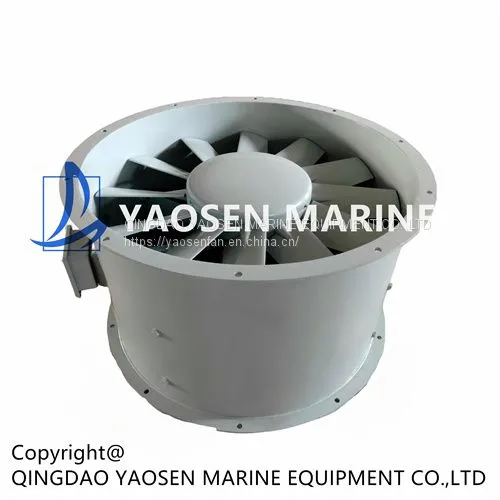

CZF-140A Marine Axial Draft Fan for Control Room photo-1

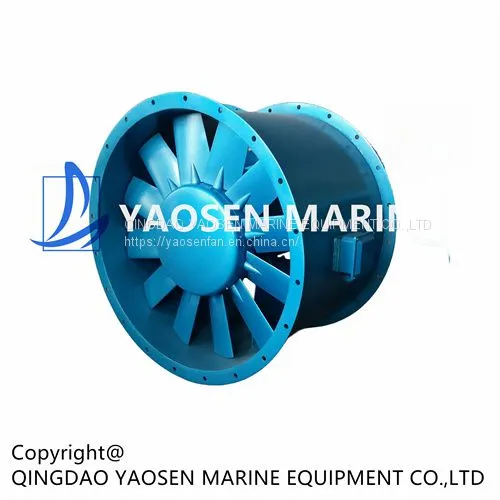

CZF-140A Marine Axial Draft Fan for Control Room photo-2
CZF-140A Marine Axial Draft Fan for Control Room photo-3
CZF-140A Marine Axial Draft Fan for Control Room photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
YAOSEN
Place of Origin:
China
Model Number:
CZF-140A
Contact Supplier Request Quote Chat Now
Qingdao Yaosen Marine Equipment Co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO/SHANGHAI/TIANJIN/GUANGZHOU and so on
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YAOSEN
Place of Origin China
Model Number CZF-140A
Certification Other, CCS/BV/LR/VR/KR and so on
After-sales Service Provided Overseas service center available
Voltage 380V/440V
Power 11/15 KW
Speed 970/1160 r/min
Air Volume 48000-84000 m³/h
Blade Material Other, aluminum
Mounting Duct Fan
Electric Current Type AC

CZF-140A marine axial draft fan for control room


1.General

CZF-140A marine axial draft fan (simply the fans) are new-type & energy save, low-noise fans. They are suitable for every cabin air ventilating and exchanging on ships. They are also applicable in other places that suit.
2.Features
CZF fans are characterized by their extreme compact structure, small size, light weight, less power consumption, smooth and reliable in operation, being suitable for reversing operating and excellent resistance to a certain degree shock and vibration.
3.Structure
The impeller is made of anticorrosive case aluminum alloy, it is dynamically shaped and carefully balanced to ensure the fan having reliable anticorrosive property and operating smoothly.
The fan casing, being welding construction, is made of steel plate with flanges for connection with duct at both sides by bolts, and the surface is fully treated by anticorrosive painting. As desired, the casing can either be made into an integral one or an open type along the axial direction, the impeller and the motor are fixed on the movable half of the casing so as to bring convenience for on the-spot repair and the replacement of its spare parts.
The fan is manufactured with a built-in casing motor structure. The impeller is directly mounted on the motor shaft.
Taking a front view from the motor side, the impeller should be turning clockwise. In practice, it can be turning counter clockwise too. Such being the case, the reversing characteristic are capable of no less than 60 percent of normal rating.
The fan can be matched with AC380V, 50Hz or 440V, 60Hz marine or navy motor.

4.Working conditions

Medium temperature: -25℃ ~ +50℃
Max relative humidity: 95%
Periodical swing:±22.5°
Continued transversal incline:±15°
Continued longitudinal incline:±10°
Vibration: existent
Impact: existent

5.Model explanation

　The models of fans are expressed by the first letter of the Chinese phonetic name, the outer diameter of the vane wheel, the power and the rotational speed of the motor ,etc.

For example:

CZF-140A/11----970

Where：

C-for marine or navy

Z-axial flow ventilator

F-fan

A-impleller code

140-the outer diameter of the vane wheel 140cm

11-the power of motor 11kw

970-the standard rotational speed 970r/min(50Hz)


6.MAIN PROPERTY PARAMETER

Model Size：CZF-140A

Air Flow Rate：48000-84000 m3/h；

Total Pressure：260-580 Pa；

Static Pressure：160-520 Pa；

Power：11/15KW；

Speed：970/1160 r/min；

Voltage：380/440V；

Frequency:50/60Hz

Protection Grade：IP56；

Insulation Class：F；


7.Outline dimensions:

8.Physical photograph

Please contact us and get detailed Technical parameters and Drawings.


We could Design and Produce the Marine fan,Industrial Fan,and Other Ventilation Equipment according to your detailed requirement !


We could Design and Produce the Marine fan,Industrial Fan,and Other Ventilation Equipment according to your detailed requirement !
