TY-Double-side Developing Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Tian Yi
Model Number:
TY-CBE-38
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
Tian Yi
Model Number
TY-CBE-38
Specifications
1.High quality and accuracy of developing2.Ensure there is no residue
3.Horizontal swing spray system
4Double-side developer

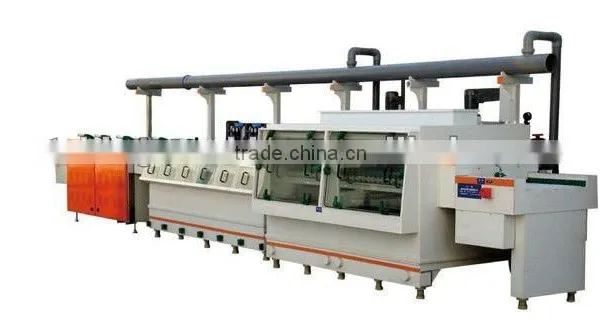

Double-side Developing machine
Application:
This machine can be used for the developing and cleaning of dr film or wet film graphic imaging after explosure which can satisfy the graphic production needs of the high density and fine line.
Process flow:
Feeding → Two-meter developing → Recycle water washing 1/2 → Running water washing → Blot up → Cold wind drying → Hot wind drying → Discharge
Main technical parameter:
1 |
Size of Machine |
L7210×W1800×H1980mm |
2 |
Working Height |
900mm |
3 |
Working Width |
640mm |
4 |
Running Speed |
0.1-8m/min |
5 |
Power voltage |
Three-Phase Four-Wire 380 V 50 HZ |
6 |
Total power of the machine |
31KW |
7 |
Size of maximal board |
610mm*460mm |
8 |
Size of minimal board |
80mm*60mm |
9 |
Thickness of outputting board |
0.075-2.4mm |
10 |
Running water consuming |
20-32L/min |
