TY-V Cutting Machine
- 10 Set / Sets per Month
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Tian Yi | |
| Model Number | TY-CEB-35 |
Product Description
Specifications
1.PCB work fine pulled fine, manufacturing quality
et the stringent technical requirements

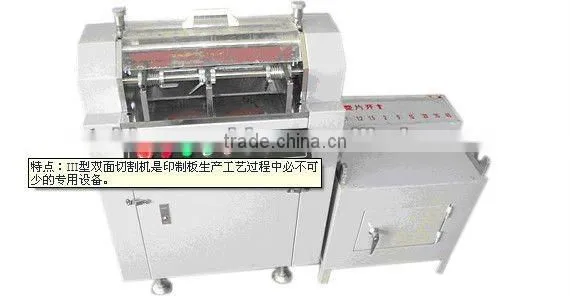

V-cutting Machine
Features:
III-type cutting machine is a double-sided PCB production process in the special equipment necessary. The machine is mainly used for PCB work fine pull, pull the specifications can be used for a variety of sizes adjusted to meet the technical requirements of PCB.
This machine is designed fine, manufacturing quality, the other major components are made of international quality materials, made with advanced technology, high-quality products meet the stringent technical requirements for PCB manufacturing.
Main technical parameters:
1. Printed Pull minimum size: 40 × 80 (length)
2. PCB pull maximum size: 350
3. Cutting board Length: 86mm ~ arbitrarily long
4. Notch width (max): 0.5mm
5. Blade size (outer diameter × inner diameter × thickness): Φ50 × Φ25 × 2.5
6. Blade speed: 4m / s
7. Conveyor speed: 6m/min
8. Power: 380V 50HZ
9. Total power: 0.74KW
