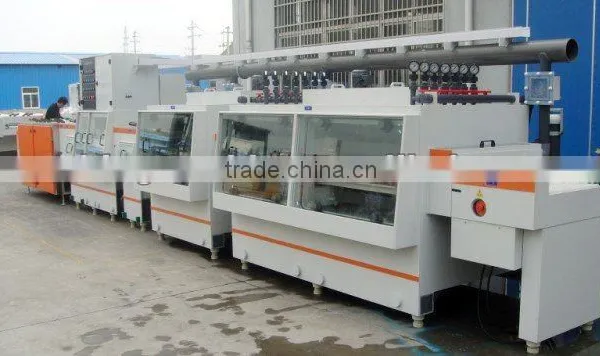

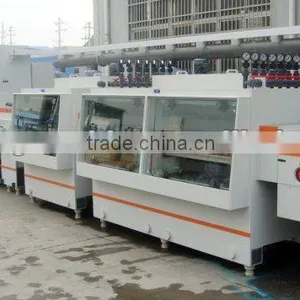

TY- Double-side Line Developing Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Tian Yi
Model Number:
TY-PE-014
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
Tian Yi
Model Number
TY-PE-014
Specifications
1.developing and cleaning of the dry film or wet film graphic imaging2.satisfy needs of high density and fine line
Process flow:
Feeding → Developing 1 → Supplement developing → Pump washing 1&2&3 → Running water washing → Blot up → Cold wind drying → Hot wind drying → Discharge
Application:
This machine can be used for the developing and cleaning of the dry film or wet film graphic imaging after exposure which can satisfy the graphic production needs of the high density and fine line.
Main technical parameter:
1 |
Size of Machine |
L8590×W1600×H1980mm |
2 |
Working Height |
900mm |
3 |
Working Width |
640mm |
4 |
Wheelbase |
35mm |
5 |
Running Speed |
0.1-5m/min |
6 |
Power voltage |
Three-Phase Four-Wire 380 V 50 HZ |
7 |
Total power of the machine |
39KW |
8 |
Size of minimal board |
Min 80*60mm |
9 |
Thickness of outputting board |
0.1-2.5mm |
10 |
Running water consuming |
24-36L/min |
