Industrial Refrigerator Water Cooled Process Chiller

Industrial Refrigerator Water Cooled Process Chiller photo-1
Industrial Refrigerator Water Cooled Process Chiller photo-2
Industrial Refrigerator Water Cooled Process Chiller photo-3
Industrial Refrigerator Water Cooled Process Chiller photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Air-Cooled
Place of Origin:
Jiangsu, China
Model Number:
TY-CH018
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Type Air-Cooled
Place of Origin Jiangsu, China
Model Number TY-CH018
Certification CE
Warranty 1 year
After-sales Service Provided No overseas service provided

Industrial refrigerator water cooled process chiller



AIR-N-GAS Process Technologies offers a wide range of Industrial Chillers for Air, Gas, Water, Brine, Glycol etc, for various applications. We are using latest technologies in the field of refrigeration using the best components available in the industry. We offer up to 20 TR and Water Cooled Chilling Plant above 20 TR. Upto 40 TR we offer single unit and for capacities more than 40 TR we offer multiple units.





Product Description

 Industrial refrigerator water cooled process chiller

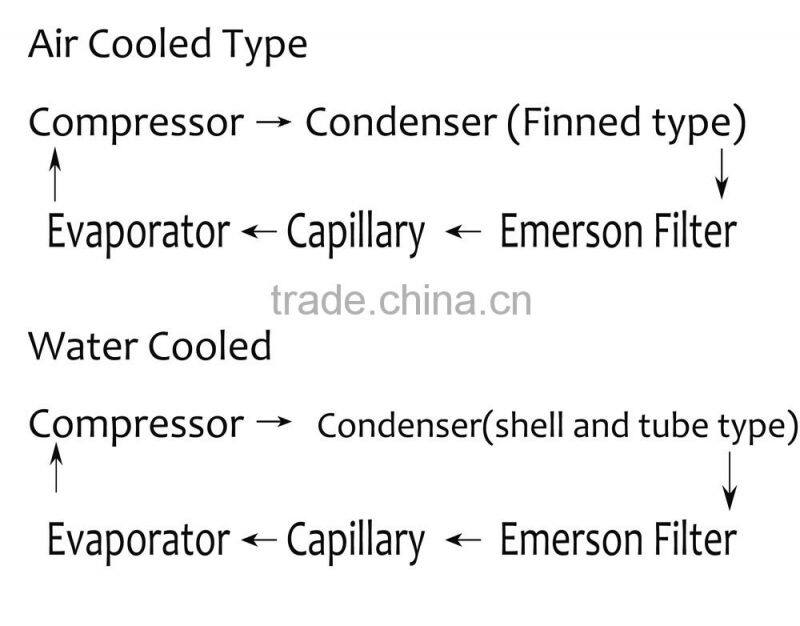

Two working type

Industrial refrigerator water cooled process chiller

 SPEC.

Model UNIT TY-CH018
Refrigerating Capacity kw 30.5
Kcal/h 26230
Compressor Input Power(kw) 4.5*2     /  *   9
Rated Power(Hp) 5*2     /      * 10
Evaporator Type *Water Tank with Pipe Coil
Pipe Diameter(inch) 2"
Refrigerant Type *R407c/R134a/R410a/R22
Filling Quantity(kg) 5
Cooling Flow(m³/h) 4.42
Air Cooled Condenser Type Finned condenser
Fan Power(kw) 0.42*2
Water Tank Capacity(L) 125
Pump Power(kw) 0.75
Flow(L/min) 100
Dimension(L*W*H, mm) 1650*830*1584
Operating Weight(kg) 450
Voltage *380V/50Hz/3phase
* Customizable according to client's requirement





 Pics Shown

Front



Industrial refrigerator water cooled process chiller

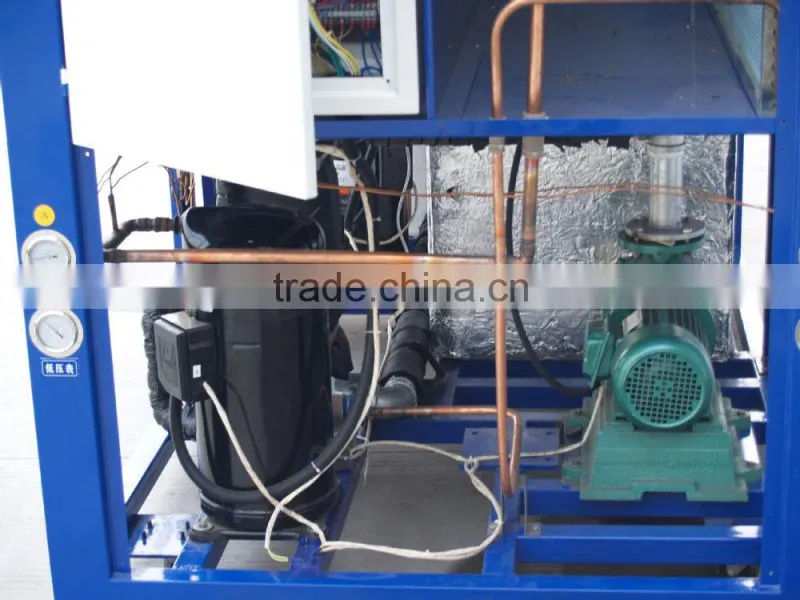

Side



Industrial refrigerator water cooled process chiller

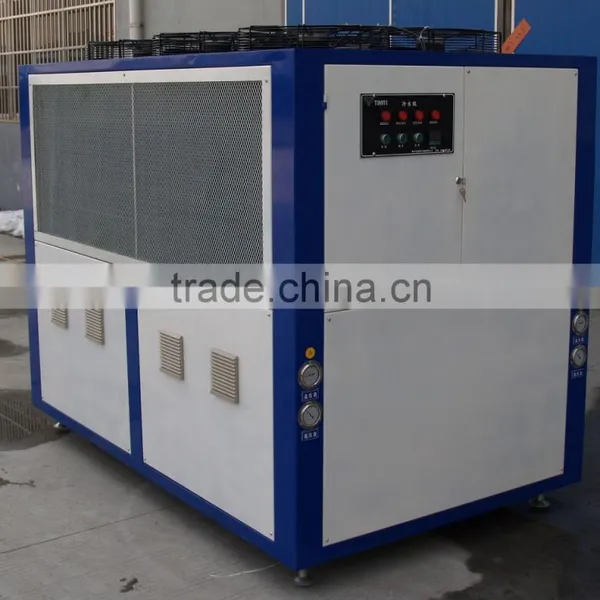

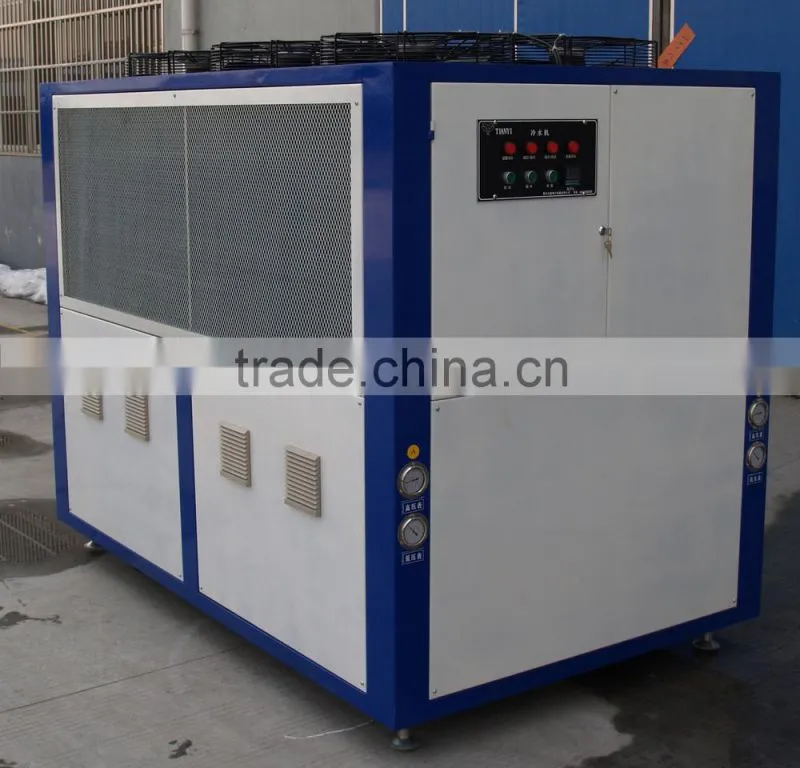

 Whole view



Industrial refrigerator water cooled process chiller







Packaging & Shipping



Industrial refrigerator water cooled process chiller



Our Services

Quality & Inspection



  • Cooperated with good reputation suppliers.
  • 100% check spare parts quality which produced from matching suppliers.
  • QC checking each step from spare parts to production on the full of line.

Industrial refrigerator water cooled process chiller







Company Information



Production for a series of etching,cleaning, electroplating equipment. At present,we have cooperated with iphone,asus,HP,HTC,Samsung,LG and other industry brand processing manufactures,and we have achieved good reputation.Warmly welcome friends at home and abroad to visit our company and negotiate business.
