Industrial refrigerator Process water Chiller
AIR-N-GAS Process Technologies offers a wide range of Industrial Chillers for Air, Gas, Water, Brine, Glycol etc, for various applications. We are using latest technologies in the field of refrigeration using the best components available in the industry. We offer up to 20 TR and Water Cooled Chilling Plant above 20 TR. Upto 40 TR we offer single unit and for capacities more than 40 TR we offer multiple units.

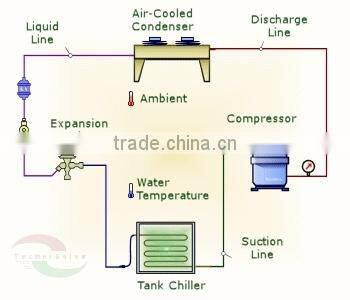

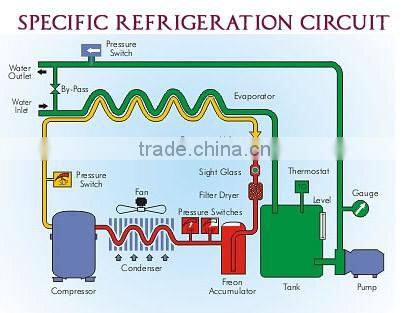

DRAWING DISPLAY
AIR COOLED INDUSTRIAL CHILLER RCM-A SERIES
- Characteristics Of Machine
- Cooling temperature range 5-35°C.
- High-capacity tube-in-shell evaporator with very good heat exchange performance especially for high ambient temperature condition.
- Tube-fin double condensers with excellent heat transfer and rapid cooling.
- Stainless steel warm-keeping water tank.
- Phase sequence protection for control circuit, refrigeration loop controlled by high and low pressure switch.
- Overload protection for compressor, pump and blower.
- Independent temperature controller, anti-freeze protection.
- Suitable for machine cooling in industries of plastics, electroplating, foodstuff, electronic products, bleaching and dyeing, ultrasonic.
| Model | UNIT | TY-CH018 |
| Refrigerating Capacity | kw | 30.5 |
| Kcal/h | 26230 | |
| Compressor | Input Power(kw) | 4.5*2 / * 9 |
| Rated Power(Hp) | 5*2 / * 10 | |
| Evaporator | Type | *Water Tank with Pipe Coil |
| Pipe Diameter(inch) | 2" | |
| Refrigerant | Type | *R407c/R134a/R410a/R22 |
| Filling Quantity(kg) | 5 | |
| Cooling Flow(m³/h) | 4.42 | |
| Air Cooled Condenser | Type | Finned condenser |
| Fan Power(kw) | 0.42*2 | |
| Water Tank Capacity(L) | 125 | |
| Pump | Power(kw) | 0.75 |
| Flow(L/min) | 100 | |
| Dimension(L*W*H, mm) | 1655*830*1584 | |
| Operating Weight(kg) | 450 | |
| Voltage | *380V/50Hz/3phase | |
| * Customizable according to client's requirement | ||

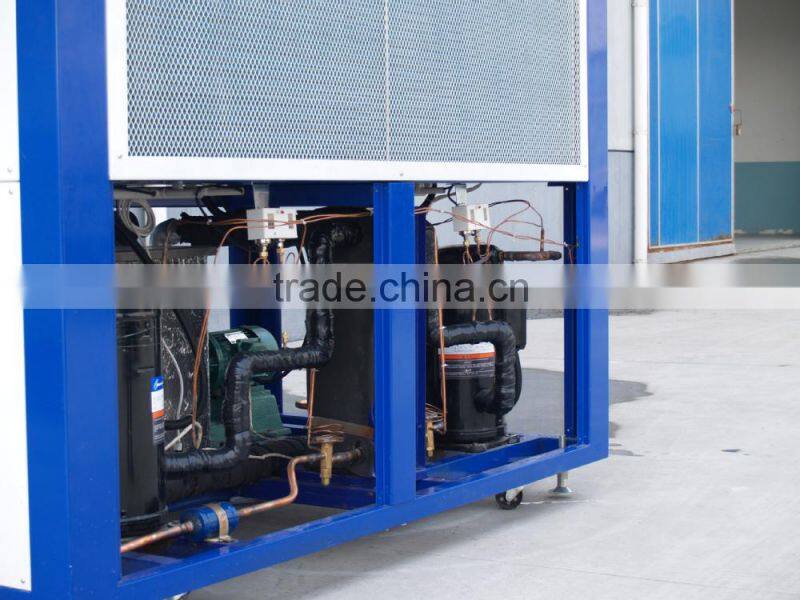

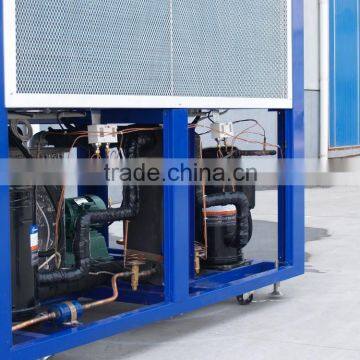

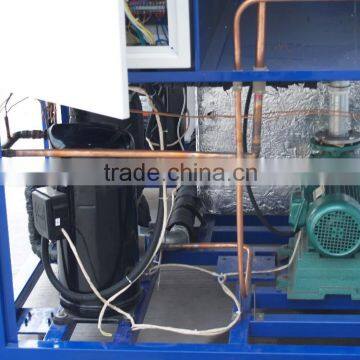

PICS DISPLAY
Front
Side
Whole view
Quality & Inspection
- Cooperated with good reputation suppliers.
- 100% check spare parts quality which produced from matching suppliers.
- QC checking each step from spare parts to production on the full of line.
Production for a series of etching,cleaning, electroplating equipment. At present,we have cooperated with iphone,asus,HP,HTC,Samsung,LG and other industry brand processing manufactures,and we have achieved good reputation.Warmly welcome friends at home and abroad to visit our company and negotiate business.
