10inch Plastic Bule 10 Inch Water Filter Housing

Household Stainless Steel Filter Housing

Features & Benefits

- Superfine stainless steel material;

- High pressure and corrosion resistant;

- Hot and cold water filtration;

Technical specifications

Max. Pressure: 10bar (145psi)

Recommended pressure: <8bar (115psi), 25°C

Max. Temperature: 125°C

Inlet/Outlet thread: stainless steel, brass insert     Port size: 1/2", 3/4", 1"

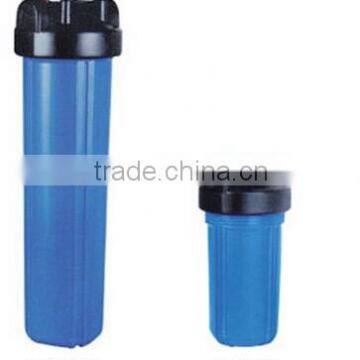

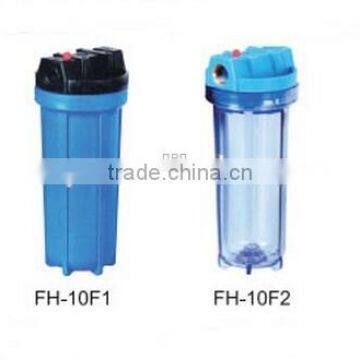

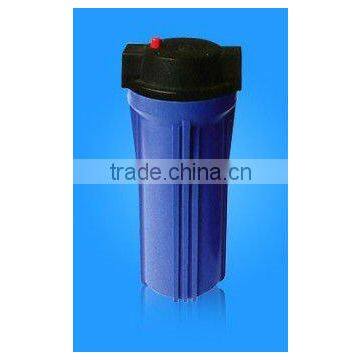

Household Plastic Filter Housing

Features & Benefits

High quality PP and AS material in conformity with FDA standard;

Thicker housing and rib design can withstand more pressure;

Opener, air release button, brass thread fitting and more options;

Technical specifications

Max. Pressure: 8bar (115psi)

Failure test pressure: 30bar (435psi)

Cycle test pressure: 0-115psi, 100,000 cycles

Recommended pressure: <6bar (88psi), 25°C

Max. Temperature: 50°C

Flow rate and pressure loss depend on filter elements type;

Warning: Don't expose filter housing to sunshine;

Inlet/Outlet thread: Plastic, brass insert     Port size: 1/4'', 1/2'', 3/4''

Inlet/Outlet thread: Plastic, brass insert     Port size: 1/4'', 1/2'', 3/4''

Inlet/Outlet thread: Brass insert           Port size: 1/2'', 3/4''

Inlet/Outlet thread: Plastic, brass insert     Port size: 1/2'', 3/4'', 1'', 1 1/2''
