Double Side aluminium/copper/zinc/iron/stainless steel brushing machine
Available with double side and single side two type brushing. Attachment with water rinsing brushing air Blowing and drying system. Ideally suited to Prepare Innovative technologies scrubbing and Cleaning Machine available with top and bottom Brushing the ferrous and non ferrous metal Surface. The metal surface is perfectly cleaned And thus prepared for good subsequent Adhesion of all coating and batter printing Operation.
It specially designed for PCB`s industries, metal label Manufacturer, Ceramics tiles manufacturer and numerous Cleaning operations. Machines are designed to Suit individual customer application and Requirement.

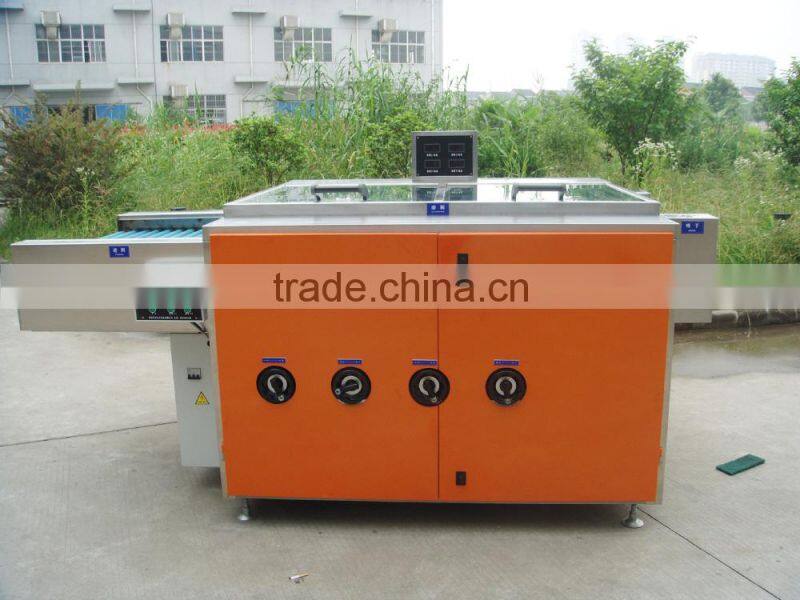

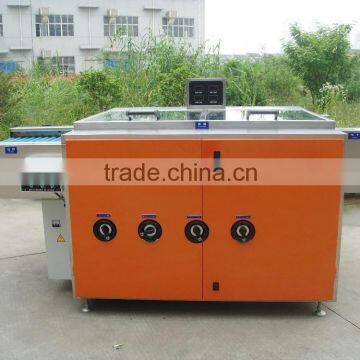

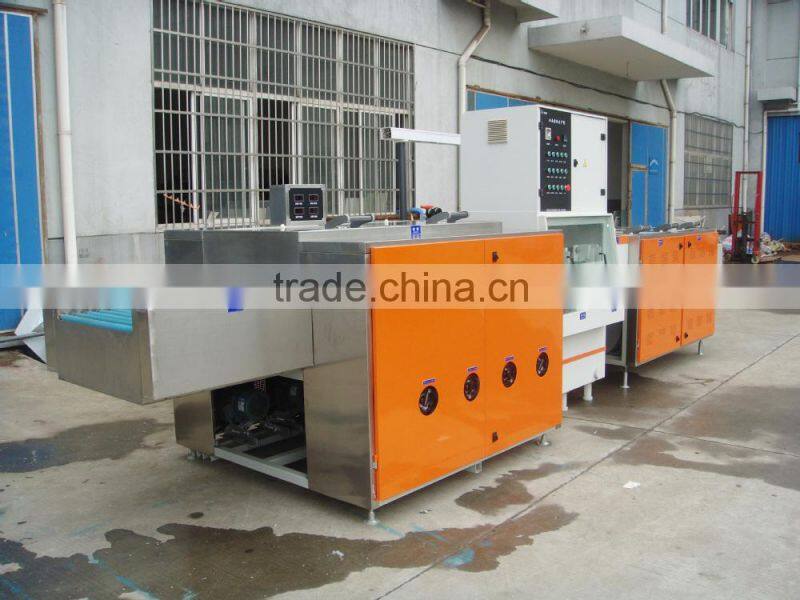

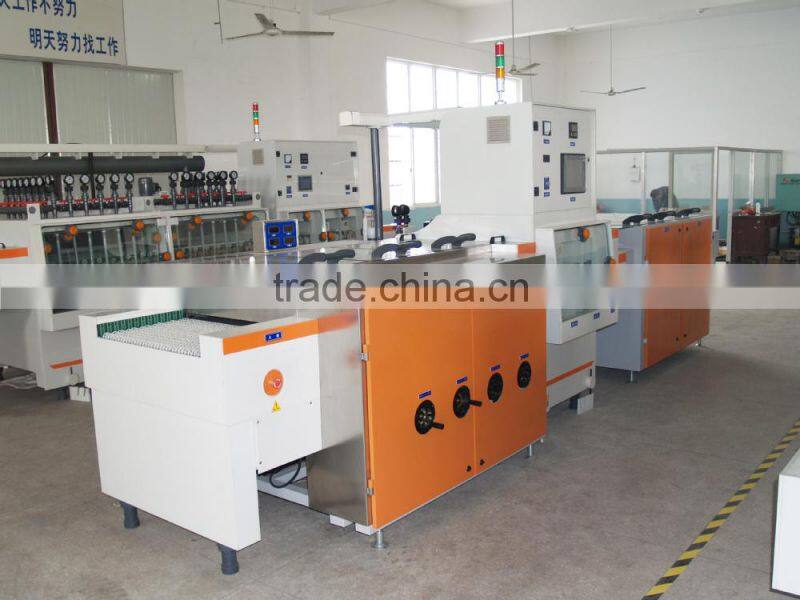

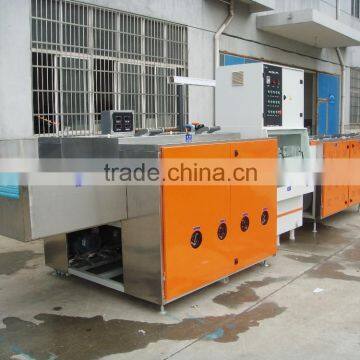

WHOLE VIEW

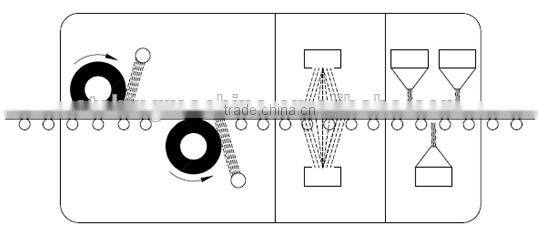

PROCESS FLOW
Loading → Acid washing → Pump washing → Running water washing → Four-rollers brushing with swing → Pump washing → High-pressure washing → Running water washing → Blot up → Cold wind drying → Hot wind drying → Discharge
MAINLY TECHNICAL PARAMETER
| Size of Machine | L7695×W1700×H1980MM | Working Height | 900MM |
| Working width | 700MM | Running Speed | 2M/MIN |
| Power voltage | Three Phrase four Wire | Total power of machine | 25KW |
| Min board allowed | 200 ×200 MM | Max board allowed | 610 ×460MM |
Thickness of outputing board | 0.4-3.2MM | Water comsuming | 8-12L/Min |
INSIDED STRUCTURE

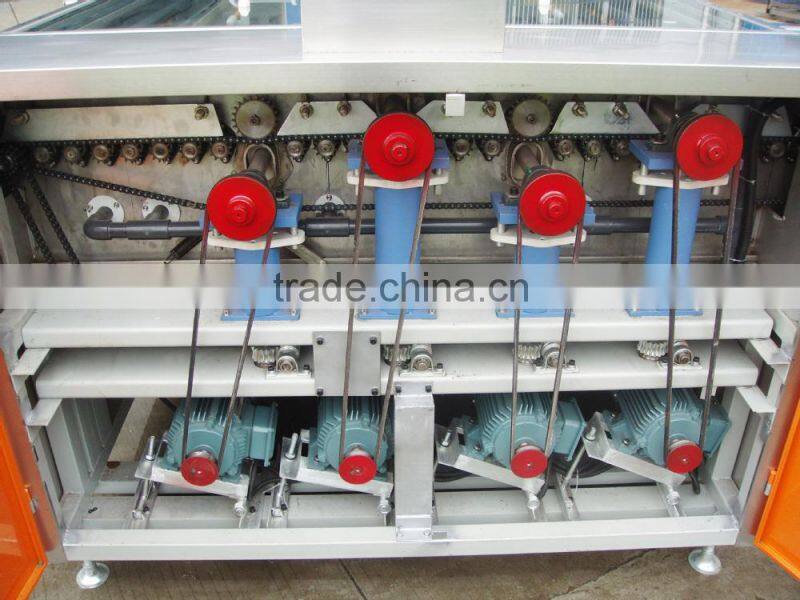

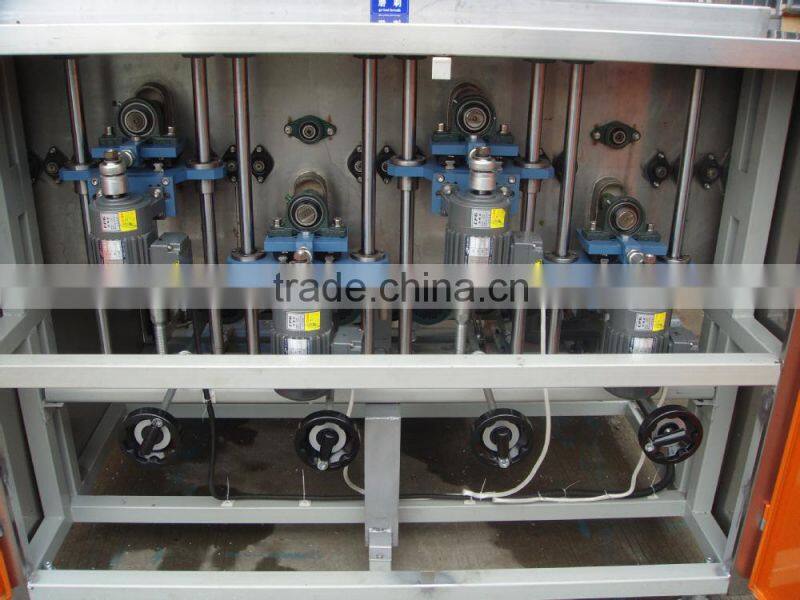

BRUSHING PART

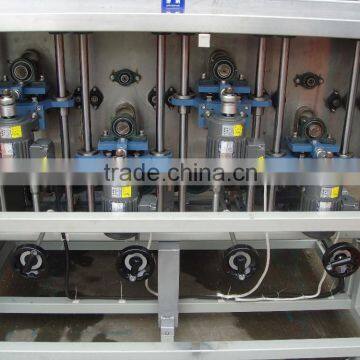

BRUSHING PART INSIDED 1 (without swing)

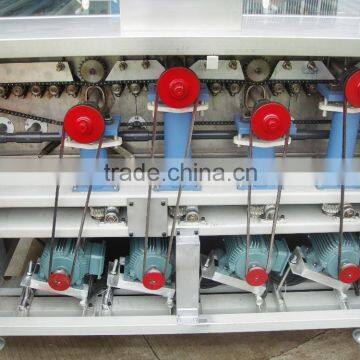

BRUSHING PART INSIDED 2(with swing)
Application
Metal brushing :Copper,Nickle,Zinc ,Aluminum,Iron,Tin,Chrom,Magesium ,Pewter,Brass,Silver,etc.
PCB brushing : Mobile PCB, Computer PCB, Light PCB , Battery PCB,etc.
Quality & Inspection
- Cooperated with good reputation suppliers.
- 100% check spare parts quality which produced from matching suppliers.
- QC checking each step from spare parts to production on the full of line.
Production for a series of etching,cleaning, electroplating equipment. At present,we have cooperated with iphone,asus,HP,HTC,Samsung,LG and other industry brand processing manufactures,and we have achieved good reputation.Warmly welcome friends at home and abroad to visit our company and negotiate business.
