PP Yarn Filter Cartridge,alkaline Water Filter Cartridge for Sediment Filter

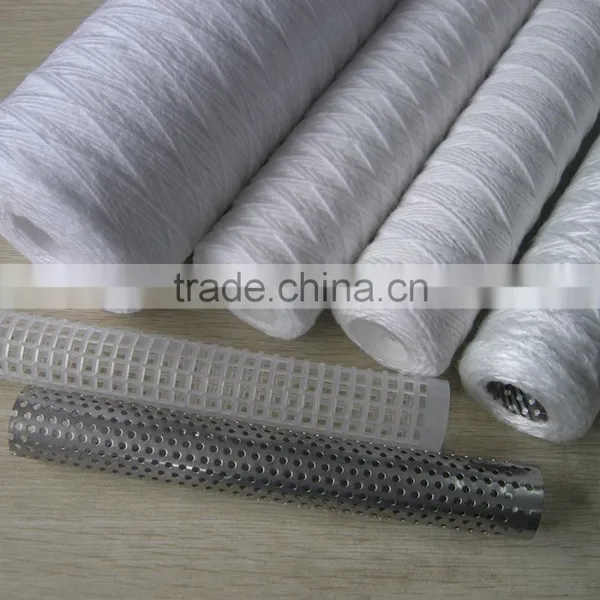

PP Yarn Filter Cartridge,alkaline Water Filter Cartridge for Sediment Filter photo-1
PP Yarn Filter Cartridge,alkaline Water Filter Cartridge for Sediment Filter photo-2
PP Yarn Filter Cartridge,alkaline Water Filter Cartridge for Sediment Filter photo-3
PP Yarn Filter Cartridge,alkaline Water Filter Cartridge for Sediment Filter photo-4
PP Yarn Filter Cartridge,alkaline Water Filter Cartridge for Sediment Filter photo-5
US$ 0.55 - 2 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
Frotec or Huamo
Model Number:
yarn wound filter cartridge
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Shenzhen/Guangdong
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Anhui, China
Brand Name Frotec or Huamo
Model Number yarn wound filter cartridge
Product Description



alkaline water filter cartridge for sediment filter



The filter material: polypropylene (PP fiber), cotton (Cotton), glass fiber (glass fiber)
The center of support material (skeleton): polypropylene (PP), SUS304 stainless steel, SUS316 stainless steel


The function and characteristics:
1, can effectively capture and intercept all kinds of particles in the liquid impurities;
2, with the honeycomb type depth structure, with the large amount of sewage interception, interception effect is good;
3, do not fall off the fiber filter;
4, acid and alkali resistance, suitable for PCB, electroplating, chemical and other production process requirements;
5, have good accuracy control, can be multi model accuracy;
6, low cost! Suitable for a large number of applications, and the replacement is simple, easy to operate.
The product uses: suitable for PCB, electroplating, semiconductor, photoelectric, ultrasonic, chemical,
Filtration of oil, water and other liquids!



Material Of Construction

Filter media

Polypropylene ,cotton,glass fiber



Micron rating

1.0,2.0,3.0,5.0,10 μm



Inner core

Polypropylene ,Stainless steel



Outer cage,End Cap

Polypropylene



O-ring/Gaskets

EPDM,Slicone,Buna,Viton

Cartridge Dimensions

Outer Diameter

62-65mm, 110-115mm



Inner Diameter

28mm



Length(Based on DOE End Cap)

10”,20”,30”,40”

Operating Conditions

Maximum differential pressure

4.5bar at 25℃



Recommended change out

1-1.5bar



Maximum temperature

PP Yarn+PP Core (80)





Cotton Yarn+SS core (180)





Glass fiber+SS core (200)





PP yarn filter cartridge,alkaline water filter cartridge for sediment filter





Packaging & Shipping

 PP yarn filter cartridge,alkaline water filter cartridge for sediment filterPP yarn filter cartridge,alkaline water filter cartridge for sediment filter



FAQ



Q1. Can I have a sample order for filter cartridge?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks after the payment.

Q3. Do you have any MOQ limit for filter cartridge?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for filter cartridge?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on filter cartridge product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
