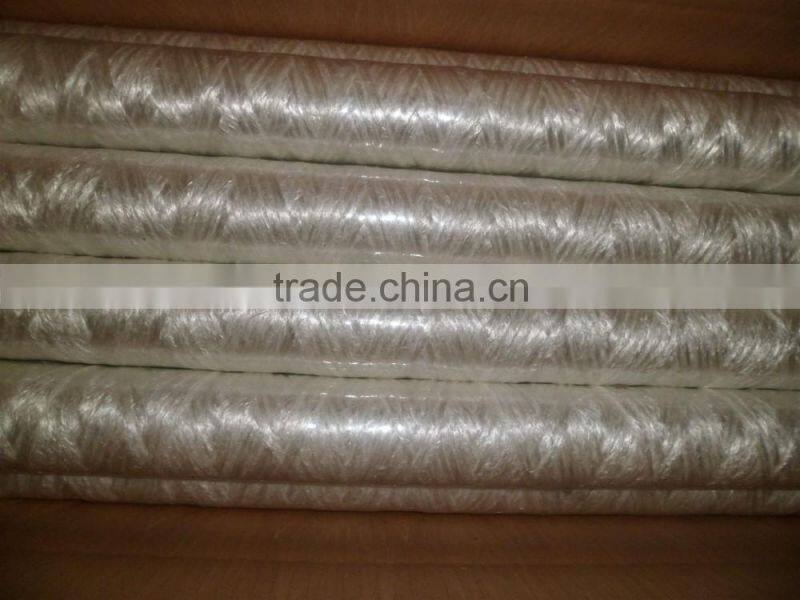

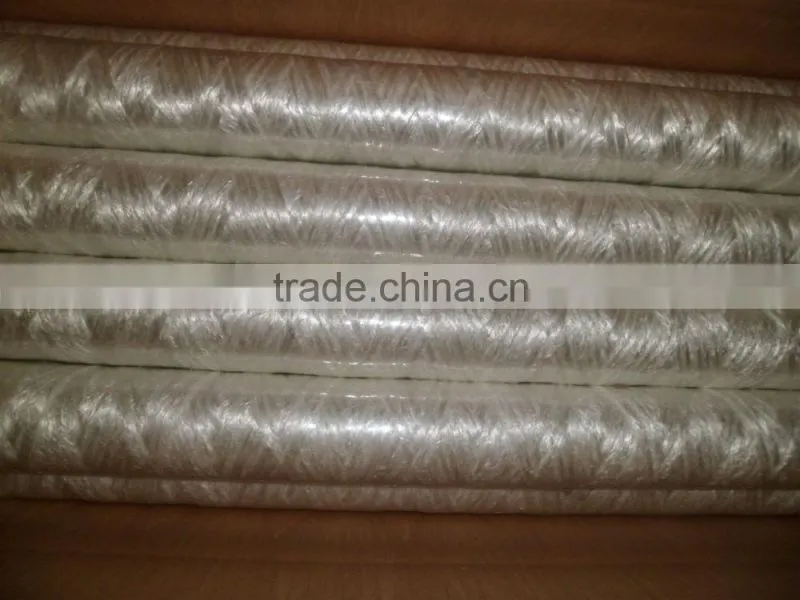

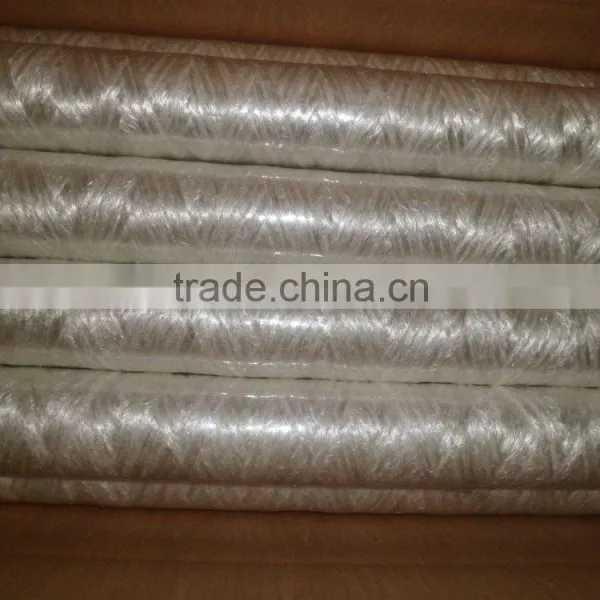

5um fiberglass string wound filter cartridge

5um fiberglass string wound filter cartridge

The filter material: polypropylene (PP fiber), cotton (Cotton), glass fiber (glass fiber)
The center of support material (skeleton): polypropylene (PP), SUS304 stainless steel, SUS316 stainless steel

The main parameters:
1, length: 5 "(125127mm), 10" (250254mm),
20 "(500508mm), 30" (750762mm),
40 "(10001016mm)
2, commonly used outside diameter: 57mm, 60mm, 63.5mm, 65mm, 115mm
3, commonly used inside diameter: 30mm, 28mm
4, 0.5, 1, commonly used precision: 3, 5, 10, 20, 30, 50, 75, 100, 200 m
5, durable pressure: less than 0.5Mpa
6, durable temperature is less than or equal to 80 DEG C: polypropylene filter, filter cotton is not higher than 120 DEG, 250 DEG C glass fiber filter

The function and characteristics:
1, can effectively capture and intercept all kinds of particles in the liquid impurities;
2, with the honeycomb type depth structure, with the large amount of sewage interception, interception effect is good;
3, do not fall off the fiber filter;
4, acid and alkali resistance, suitable for PCB, electroplating, chemical and other production process requirements;
5, have good accuracy control, can be multi model accuracy;
6, low cost! Suitable for a large number of applications, and the replacement is simple, easy to operate.
The product uses: suitable for PCB, electroplating, semiconductor, photoelectric, ultrasonic, chemical,
Filtration of oil, water and other liquids!
