pp Sediment Filter Cartridge With 5 Micron, PP Spun Melt Blown Cartrige Filter,pp Sediment Filters

pp Sediment Filter Cartridge With 5 Micron, PP Spun Melt Blown Cartrige Filter,pp Sediment Filters thumbnail-1
pp Sediment Filter Cartridge With 5 Micron, PP Spun Melt Blown Cartrige Filter,pp Sediment Filters thumbnail-2
pp Sediment Filter Cartridge With 5 Micron, PP Spun Melt Blown Cartrige Filter,pp Sediment Filters thumbnail-3
pp Sediment Filter Cartridge With 5 Micron, PP Spun Melt Blown Cartrige Filter,pp Sediment Filters thumbnail-4
pp Sediment Filter Cartridge With 5 Micron, PP Spun Melt Blown Cartrige Filter,pp Sediment Filters thumbnail-5
pp Sediment Filter Cartridge With 5 Micron, PP Spun Melt Blown Cartrige Filter,pp Sediment Filters thumbnail-6

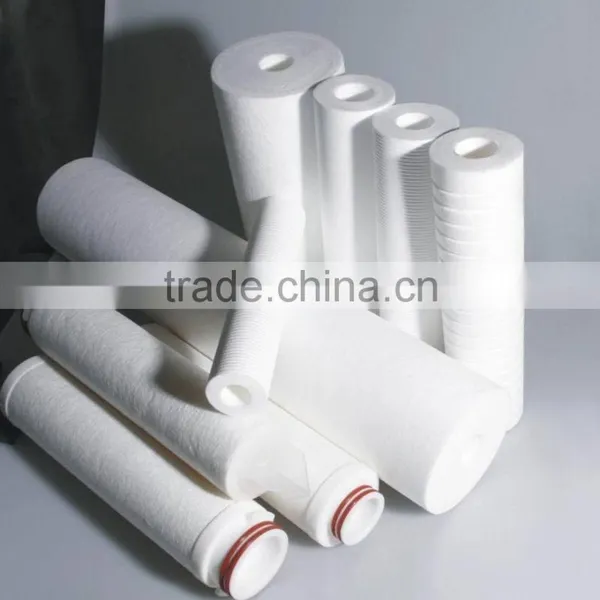

pp Sediment Filter Cartridge With 5 Micron, PP Spun Melt Blown Cartrige Filter,pp Sediment Filters photo-1
pp Sediment Filter Cartridge With 5 Micron, PP Spun Melt Blown Cartrige Filter,pp Sediment Filters photo-2
pp Sediment Filter Cartridge With 5 Micron, PP Spun Melt Blown Cartrige Filter,pp Sediment Filters photo-3
pp Sediment Filter Cartridge With 5 Micron, PP Spun Melt Blown Cartrige Filter,pp Sediment Filters photo-4
pp Sediment Filter Cartridge With 5 Micron, PP Spun Melt Blown Cartrige Filter,pp Sediment Filters photo-5
pp Sediment Filter Cartridge With 5 Micron, PP Spun Melt Blown Cartrige Filter,pp Sediment Filters photo-6
US$ 0.2 - 0.4 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
HUAMO/OEM
Model Number:
pp melt blown filter
Contact Supplier Request Quote Chat Now
Wuhu Huamo Environmental Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Anhui, China
Brand Name HUAMO/OEM
Model Number pp melt blown filter

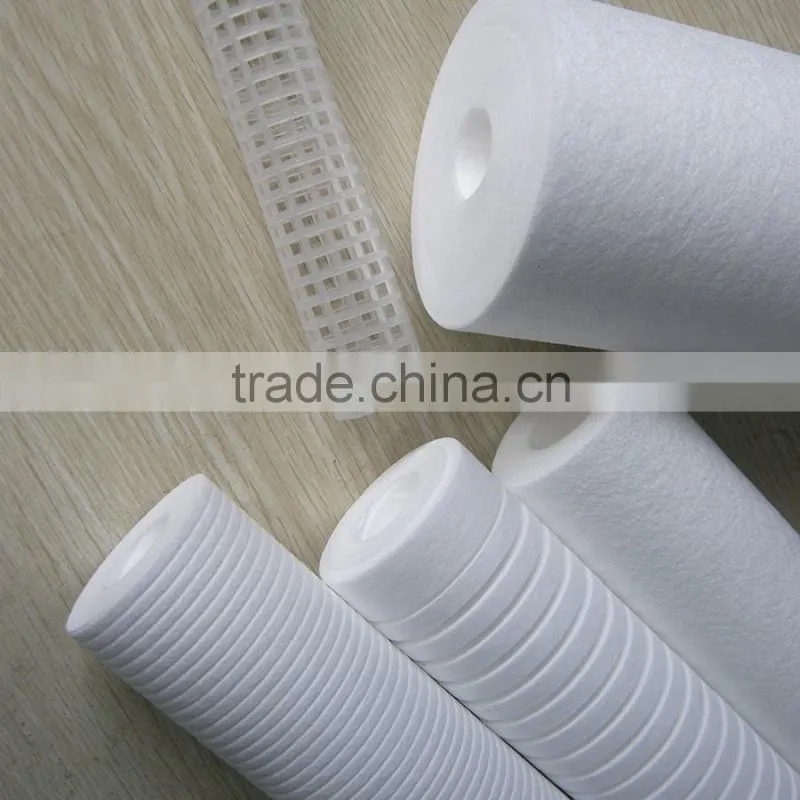

 pp sediment filter cartridge with 5 micron, PP spun melt blown cartrige filter,pp sediment filters



 pp sediment filter cartridge with 5 micron, PP spun melt blown cartrige filter,pp sediment filters

 Features & Benefits

• Surface pore structure spreads water flow to reduce pressure drop
• Continuously gradient pore structure increases the capacity of dust holding, longer service life and high efficiency
• High strength and pressure resistance
• Micro-denier melt blown filtration fiber, high removal ratings
• 100% PP for compatibility with a wide range of process fluids
• Formed by thermal bond without use of any binders and adhesives

Surface pore structure spreads water flow to reduce pressure drop
• Continuously gradient pore structure increases the capacity of dust holding, longer service life and high efficiency
• High strength and pressure resistance
• Micro-denier melt blown filtration fiber, high removal ratings
• 100% PP for compatibility with a wide range of process fluids
• Formed by thermal bond without use of any binders and adhesives





PM-Series cartridge is able to retain contaminants throughout the entire cross section of the filter. The density increases progressively from the exterior surface to the interior and "graded density" allows larger particles to be trapped near the surface while smaller particles penetrate the larger open areas to be trapped nearer the center of the filter in the smaller openings.



Applications

• Drinking water treatment
• Pre-filtration for RO+DI
• Food and beverage
• Plating, Chemicals and Solvents



Specifications

• Material : 100% PP microfiber
• Micron rating: 1, 3, 5, 10, ... 100um
• OD. 62-65mm/110-115mm; ID. 28mm
• Length: 5", 10", 20", 30", 40", 50", 60"

Operating Conditions

• Maximum differential pressure: 4.1bar at 20℃; 2.1bar at 60℃; 1.1bar at 80℃
• Recommended change out: 2.0bar
• Maximum temperature: 80℃



Ordering Guide



Model PM Media Type Support Core Dimension Micron Rating End Adaptor Seal Length Inch

PM-1
Standard

PM-2
Thin Groove

PM-3
Broad Groove

PM-4
Cavity Surface

P-High
Performance

A-Absolute
Rate

P-pp

N-none

S-ID28mm
OD62-65mm

B-ID28mm
OD110-115mm

L-ID96/114mm
OD150mm

01:1μm

03:3μm

05:5μm

10:10μm

......

......

Code 0-DOE w/o adaptor

Code 7 - 226/Fin

Code 8 - 222/Fin

Code 3 - 222/Flat closed

Code S - Spring Cap

E-EPDM

N-Buna

S-Silicone

V-Viton

5:5"

10:10"

20:20"

30:30"

40:40"

50:50"

60:60"



Application:



pp sediment filter cartridge with 5 micron, PP spun melt blown cartrige filter,pp sediment filters

Drinking water treatment
Electronic
 Industrial water treatment
 Plating
Chemicals,solvents

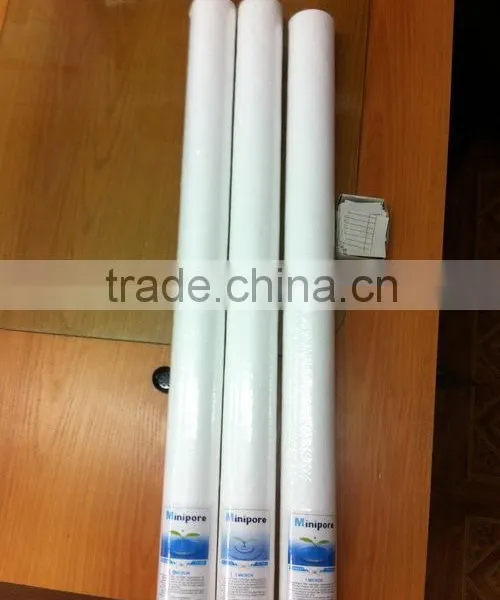

Packing and shiping:



pp sediment filter cartridge with 5 micron, PP spun melt blown cartrige filter,pp sediment filters





Certificate:



pp sediment filter cartridge with 5 micron, PP spun melt blown cartrige filter,pp sediment filters

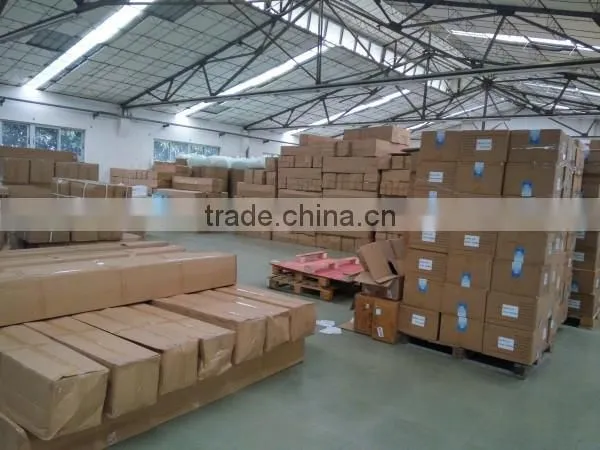

warehouse:



pp sediment filter cartridge with 5 micron, PP spun melt blown cartrige filter,pp sediment filters



Trade show & Fair:



pp sediment filter cartridge with 5 micron, PP spun melt blown cartrige filter,pp sediment filters

•
