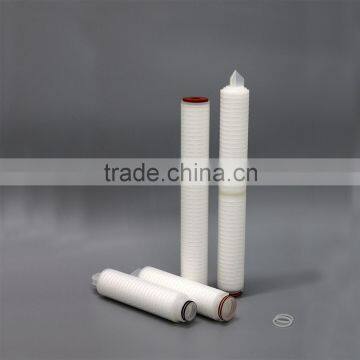

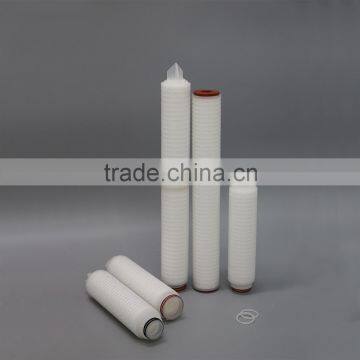

pp Membrane Pleated Filter Cartridge for Water Treatment

Name: pp Membrane Pleated Filter Cartridge for Water Treatment
Brand: Minipore
SKU: 133051689
Availability: InStock

US$ 2 - 4 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

Minipore

Model Number:

cartridge water filters industrial

Wuhu Huamo Environmental Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Shenzhen/Guangdong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name Minipore

Model Number cartridge water filters industrial

Product Description

Material Of Construction	Filter media	Polypropylene
	Support Layers	Polypropylene
	Micron rating	0.1,0.2,0.45,0.65,1.0,2.0,3.0,5.0,10,30,50,70,100 μm
	Inner core	Polypropylene
	Outer cage,End Cap	Polypropylene
	Seal Method	Thermal Bonded,No Adhesives
	O-ring/Gaskets	EPDM,Slicone,Buna,Viton
Cartridge Dimensions	Outer Diameter	69mm(2.75”)
	Inner Diameter	28mm(1.10”)
	Length(Based on DOE End Cap)	10”-254mm,20”-508mm,30”-762mm,40”-1016mm
	Filtration Area(m2)	0.65m2 per 10”
Operating Conditions	Normal Operating Temperature	Up to 65℃ (140℉)
	Max.Operating Temperature	90℃ (194℉) at P≤1.0 bar (14.5psi)
	Forward Flow Direction	4.2 bar (60 psi) at 25℃ (77℉)
	Reverse Flow Direction	2.1 bar (30psi) at 25℃ (77℉).
	PH Value Compatibility	1-14
	Sterilization Temperature Time	Steam Sterilization for 30 minutes at 121±2 ℃, 100 cycles, Autoclave 30minutes (optional)
Cartridge Safety	Endotoxin	<0.25 EU/ml
	Extractables	0.03g /
