UF90,160,200,250, All Size of Hollow Fiber UF Membrane /ultrafitration Membrane for UF System/plant/equipment/machine

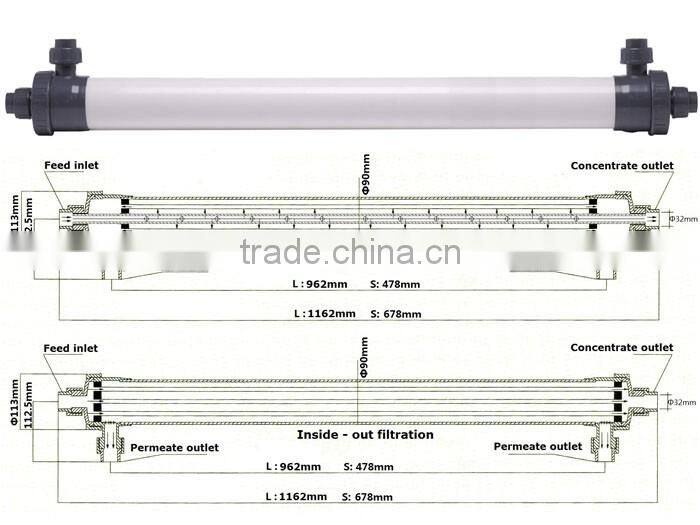

Model No.

HM90PAN

HM90PS

HM90PP

HM90PVDF

Size

L Φ90X1162mm   S Φ90X678mm

L Φ90X1162mm   S Φ90X678mm

L Φ90X1162mm   S Φ90X678mm

L Φ90X1162mm   S Φ90X678mm

Hollow fiber material

PAN

PS

PP

PVDF

Hollow fiber ID/OD

1.0mm / 1.6mm

1.0mm / 1.6mm

0.4mm / 0.5mm

0.7mm / 1.3mm

MWCO (Daltons)

50k~100k

10k~100k

50k~100k

100k~200k

Membrane area

L-4.5m2  S-2.3m2

L-4.5m2  S-2.3m2

L-8.9m2  S-4.4m2

L-7.0m2  S-3.4m2

Filtration method

Inside-out

Outside-in

Initial flux L/H, 0.1mpa, 25 ℃             pure water as feed

>900 (L)     >420 (S)

>900 (L)    >420 (S)

>1100 (L)    >530 (S)

>1000 (L)    >480 (S)

Designed water flux

40-120L/m2/h

40-80L/m2/h

End seal material

Epoxy resins

Housing material

UPVC

Connection/Pipe

Union connection / PVC Pipe OD. 32mm

Max. Feed pressure

0.3mpa

0.3mpa

0.3mpa

0.25mpa

Max. trans-membrane pressure

0.2mpa

0.2mpa

0.2mpa

0.15mpa

Normal trans-membrane pressure

0.02-0.15mpa

0.02-0.15mpa

0.02-0.15mpa

0.01-0.1mpa

Feed turbidity

<50ntu

Permeate turbidity

<0.1ntu

Max. working temperature

5-45℃

PH range

3-9

2-12

1-14

2-13

Microorganism, pathogen

99.99% Removal

Model No.

HM160PAN

HM160PS

HM160PP

HM160PVDF

Size

Φ160X1352mm

Φ160X1352mm

Φ160X1352mm

Φ160X1352mm

Hollow fiber material

PAN

PS

PP

PVDF

Hollow fiber ID/OD

1.0mm / 1.6mm

1.0mm / 1.6mm

0.4mm / 0.5mm

0.7mm / 1.3mm

MWCO (Daltons)

50k~100k

10k~100k

50k~100k

100k~200k

Membrane area

15m2

15m2

29m2

23m2

Filtration method

Inside-out

Outside-in

Initial flux L/H, 0.1mpa, 25 ℃             pure water as feed

>4500

>4500

>5000

>4900

Designed water flux

40-120L/m2/h

40-80L/m2/h

End seal material

Epoxy resins

Housing material

UPVC

Connection/Pipe

Union connection / PVC Pipe OD. 40mm

Max. Feed pressure

0.3mpa

0.3mpa

0.3mpa

0.25mpa

Max. trans-membrane pressure

0.2mpa

0.2mpa

0.2mpa

0.15mpa

Normal trans-membrane pressure

0.02-0.15mpa

0.02-0.15mpa

0.02-0.15mpa

0.01-0.1mpa

Feed turbidity

<50ntu

Permeate turbidity

<0.1ntu

Max. working temperature

5-45℃

PH range

3-9

2-12

1-14

2-13

Microorganism, pathogen

99.99% Removal

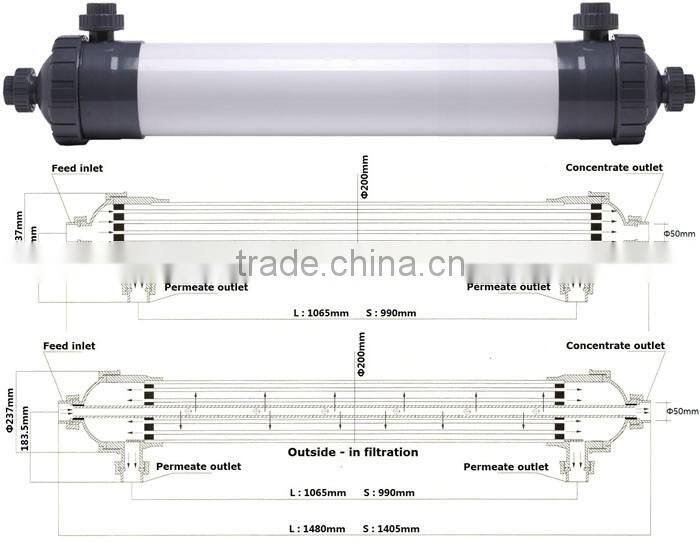

Model No.

HM200PAN

HM200PS

HM200PP

HM200PVDF

Size

L Φ200X1480mm   S Φ200X1405mm

L Φ200X1480mm   S Φ200X1405mm

L Φ200X1480mm   S Φ200X1405mm

L Φ200X1480mm   S Φ200X1405mm

Hollow fiber material

PAN

PS

PP

PVDF

Hollow fiber ID/OD

1.0mm / 1.6mm

1.0mm / 1.6mm

0.4mm / 0.5mm

0.7mm / 1.3mm

MWCO (Daltons)

50k~100k

10k~100k

50k~100k

100k~200k

Membrane area

L-27m2  S-25m2

L-27m2  S-25m2

L-48m2  S-44m2

L-40m2  S-37m2

Filtration method

Inside-out

Outside-in

Initial flux L/H, 0.1mpa, 25 ℃             pure water as feed

>6500 (L)     >6000 (S)

>6500 (L)     >6000 (S)

>7100 (L)    >6600 (S)

>7000 (L)    >6500 (S)

Designed water flux

40-120L/m2/h

40-80L/m2/h

End seal material

Epoxy resins

Housing material

UPVC

Connection/Pipe

Union connection / PVC Pipe OD. 50mm

Max. Feed pressure

0.3mpa

0.3mpa

0.3mpa

0.25mpa

Max. trans-membrane pressure

0.2mpa

0.2mpa

0.2mpa

0.15mpa

Normal trans-membrane pressure

0.02-0.15mpa

0.02-0.15mpa

0.02-0.15mpa

0.01-0.1mpa

Feed turbidity

<50ntu

Permeate turbidity

<0.1ntu

Max. working temperature

5-45℃

PH range

3-9

2-12

1-14

2-13

Microorganism, pathogen

99.99% Removal

Model No.

HM200-1PAN

HM200-1PS

HM200-1PP

HM200-1PVDF

Size

L Φ200X1710mm   S Φ200X1450mm

L Φ200X1710mm   S Φ200X1450mm

L Φ200X1710mm   S Φ200X1450mm

L Φ200X1710mm    S Φ200X1450mm

Hollow fiber material

PAN

PS

PP

PVDF

Hollow fiber ID/OD

1.0mm / 1.6mm

1.0mm / 1.6mm

0.4mm / 0.5mm

0.7mm / 1.3mm

MWCO (Daltons)

50k~100k

10k~100k

50k~100k

100k~200k

Membrane area

L-34m2  S-27m2

L-34m2  S-27m2

L-56m2  S-48m2

L-47m2  S-40m2

Filtration method

Inside-out

Outside-in

Initial flux L/H, 0.1mpa, 25 ℃              pure water as feed

>9000 (L)     >6500 (S)

>9000 (L)     >6500 (S)

>9800 (L)    >7100 (S)

>9600 (L)    >7000 (S)

Designed water flux

40-120L/m2/h

40-80L/m2/h

End seal material

 Epoxy resins

Housing material

UPVC

Connection/Pipe

Coupling connection DN50 / PVC Pipe ID. 50mm

Max. Feed pressure

0.3mpa

0.3mpa

0.3mpa

0.25mpa

Max. trans-membrane pressure

0.2mpa

0.2mpa

0.2mpa

0.15mpa

Normal trans-membrane pressure

0.02-0.15mpa

0.02-0.15mpa

0.02-0.15mpa

0.01-0.1mpa

Feed turbidity

<50ntu

Permeate turbidity

<0.1ntu

Max. working temperature

5-45℃

PH range

3-9

2-12

1-14

2-13

Microorganism, pathogen

99.99% Removal

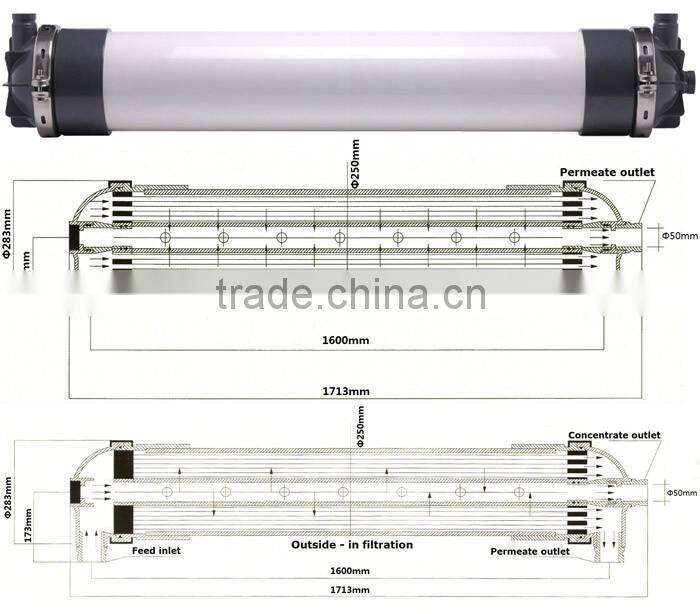

Model No.

HM250PAN

HM250PS

HM250PP

HM250PVDF

Size

Φ250X1713mm

Φ250X1713mm

Φ250X1713mm

Φ250X1713mm

Hollow fiber material

PAN

PS

PP

PVDF

Hollow fiber ID/OD

1.0mm / 1.6mm

1.0mm / 1.6mm

0.4mm / 0.5mm

0.7mm / 1.3mm

MWCO (Daltons)

50k~100k

10k~100k

50k~100k

100k~200k

Membrane area

48m2

48m2

90m2

76m2

Filtration method

Inside-out

Outside-in

Initial flux L/H, 0.1mpa, 25 ℃            pure water as feed

>11000

>11000

>15300

>15000

Designed water flux

40-120L/m2/h

40-80L/m2/h

End seal material

Epoxy resins

Housing material

UPVC

Connection/Pipe

Coupling connection DN50 / PVC Pipe ID. 50mm

Max. Feed pressure

0.3mpa

0.3mpa

0.3mpa

0.25mpa

Max. trans-membrane pressure

0.2mpa

0.2mpa

0.2mpa

0.15mpa

Normal trans-membrane pressure

0.02-0.15mpa

0.02-0.15mpa

0.02-0.15mpa

0.01-0.1mpa

Feed turbidity

<50ntu

Permeate turbidity

<0.1ntu

Max. working temperature

5-45℃

PH range

3-9

2-12

1-14

2-13

Microorganism, pathogen

99.99% Removal
