Large-scale High Flowment Water Filter Cartridge for Water Purifier

Large-scale High Flowment Water Filter Cartridge for Water Purifier photo-1
Large-scale High Flowment Water Filter Cartridge for Water Purifier photo-2

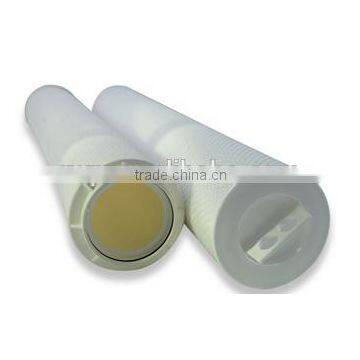

Large-scale High Flowment Water Filter Cartridge for Water Purifier photo-3
US$ 7 - 15 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
OEM
Model Number:
YNM-3000
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Anhui, China
Brand Name OEM
Model Number YNM-3000

large-scale high flowment water filter cartridge for water purifier



-- Prefiltration of RO,Pretreatment of sea water desalination

-- Condensate water filtration,hot water recovery in power generation
-- API, solvents,and water filtration in BioPharm market
-- The filtration of bottled water, high Fructose,edible oil,soft drinks,and milk
-- Paints and coatings,Petrochemical,Refineries
-- Microelectronics,film,fiber and resin





FEATURE:





-- Gradient pore structure



-- Up to 110M3/H flow rate per filter cartridge for water filtration.



-- Maximum 50% reduction of filter system



-- 20 inch /528mm,40 inch/1022mm and 60 inch/1538mm lengths are available



-- All contaminants can be removed within the cartridge because of the flow direction.





SPECIFICATIONS:





Outside Diameter:6 inch(152mm)
Length:  20 inch(528mm),40 inch(1022mm),60 inch(1538mm)

Filter media:

Pleated glass fiber
Pleated depth Polypropylene (PP)
PP Melt blown

Support/Drainage:Polypropylene (PP)
End caps : Glass fiber reinforced Polypropylene
Seal Material :EPDM, NBR
Removal Rating: µm , 4.5 µm , 6 µm , 10 µm ,20 µm ,40 µm ,70 µm,100µm
Maximum Operating Temperature:

Pleated glass fiber:121°C

Pleated PP: 82°C

Melt Blown PP: 65°C

Maximum Differential Pressure:

Pleated glass fiber:3.4 Bar at 121°C

Pleated PP: 3.4Bar at 82°C

Melt Blown:1.03Bar at 65°C

Recommended Change out Differential Pressure:2.4Bar at 20°C
Suggested maximum Flow of water:

20 inch length:660LPM

40 inch length:1,300LPM

60 inch length:1,900LPM
