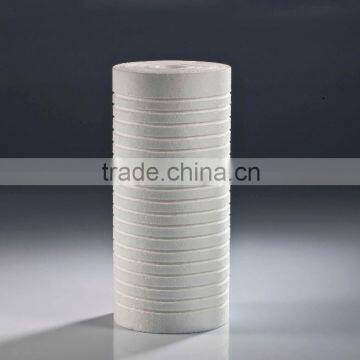

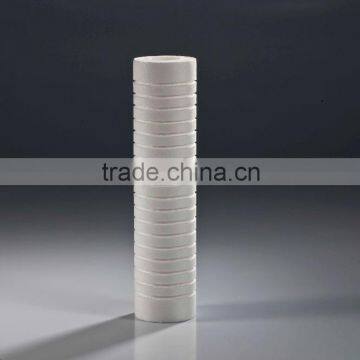

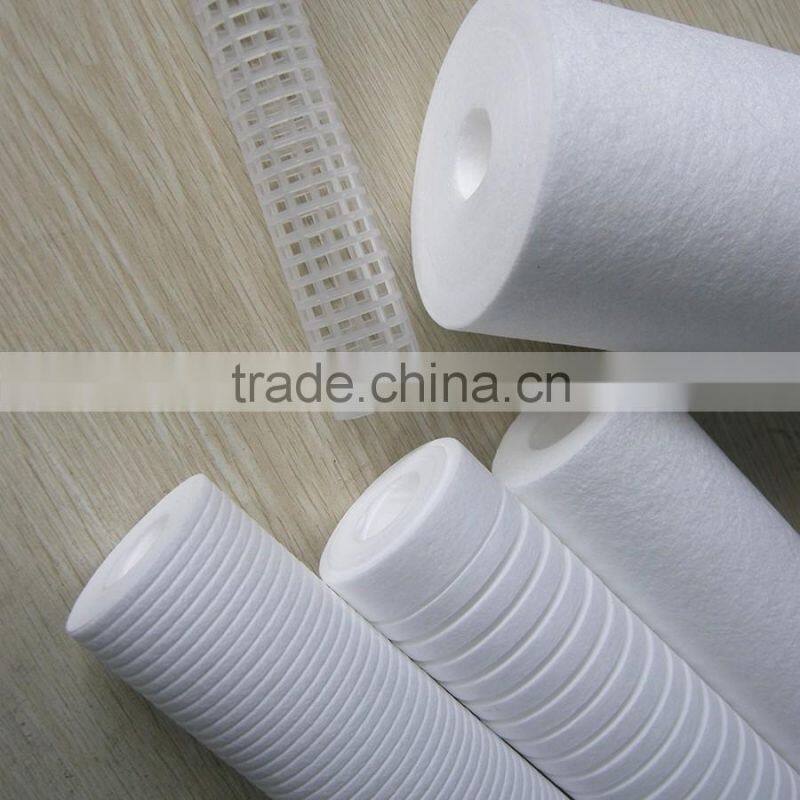

10"PP Melt Blown water filter Cartridge, big groove-CPPX spun sediment cartridge filter
- Shanghai/Shenzhen/Guangdong
- T/T
You May Like
-
water filter cartridge,filter cartridge,high flow cartridge filters
-
High quality Ultra Highflow Large Filter Cartridge for Oil field petroleum industrial
-
Great price high flow pleated/oil filter cartridge for circulated water treatment
-
1 micron 30"/40" high flow pleated filter cartridge for circulated water treatment
-
UHFP-A Ultra High Flow Filter Cartridge/UHFP-B ultra high flow filter cartridge
-
ultra high flow bag filter cartridge for #1 bag filter prefiltration of RO
Product Details
| Place of Origin | Anhui, China | Brand Name | Huamo/OEM | |
| Model Number | pp melt blown |
Product Description

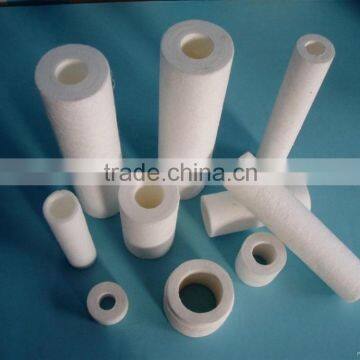

Polypropylene Melt Blown Cartridge
• Continuous bonding of fibers throughout the filter matrix ensures non-fiber releasing construction
• All polypropylene construction
• Graded density construction provides built-in pre-filtration and longer life
Applications
• R.O. Pre-filtration
• Electronic industry
• Chemicals and Solvents
• Plating Solutions
Specification
Material of Construction
• Filter Media: 100% Melt Blown Polypropylene
• Core: Polypropylene or not
• Seal Options:Silicone,EDPM,Buna,Viton,
• Micron Rating: 1µm, 3µm, 5µm, ..75µm
Dimensions
• Outside diameter: 2.5”,4.5"
• Inside diameter:28mm or 30mm
• Length: 5", 10", 20", 30", 40",50",60"
Recommended Operating Conditions
Maximum differential pressure
3.45 bard (50 psid) @ 20 C (68 F)
1.72 bard (25 psid) @ 60 C (140 F)
Flow Rate
18.6lpm per 10’’length
Ordering
Model PPF | Support Core | Dimension | Micron Rating | End Cap Configuration | Seal | Length Inch |
PPF-A Standard PPF-B Thin groove PPF-C Broad groove | P- PP N- None | A- ID28mm OD2.5’’ B-ID28mm OD4.5’’ C- ID30mm OD2.5’’ D-customize | 1μm 3μm 5μm ........ ........ 75μm | Code0-DOE( no end caps) Code 3 -SOE flat closed end/ 222 Orings Code 6-SOE flat closed end/226 Orings Code 7 -SOE fin/ 222 orings Code 8-SOE fin /226 orings
| E-EPDM N-Buna S-Silicone V-Viton
| 5: 12.7 93/4:24.8 9 7/8:25.1’ 10: 25.4 20: 50.8 30: 76.2 40: 101.6 50’’127 60:152.4 |
