Realan LR1010-180W 19VDC Mini Itx Power
- shekou
- T/T Money Gram Credit Card
You May Like
Product Details
| Products Status | Stock | Application | Desktop | |
| Rating Power | 150W - 250W | Interface Type | 24Pin | |
| Brand Name | Realan | Model Number | LR1010-180W 19VDC | |
| Place of Origin | Guangdong, China |
Product Description

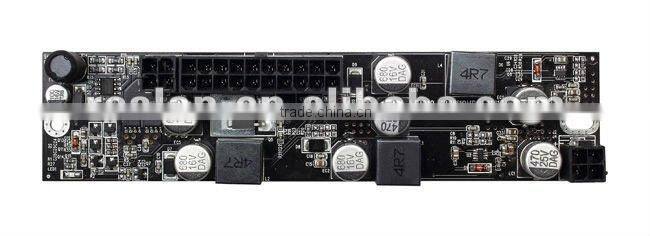

Realan Mini ITX Power LR1010-180W 19VDC
INPUT REQUIRED:
INPUT VOLTAGE RANGE:17VDC—24VDC
INCOMING CURRENT RANGE:12.0A Max @19VDC
INPUT SURGING CURRENT:12.0Vmax@19VDC
WORK EFFICIENCY:≥85%
OUTPUT REQUIRED:
FIVE GROUPS OF POWER OUTPUT(Vin=19VDC)
Item | Output voltage | Output current(A) | |||||
min(V) | avg(V) | max(V) | ripplewave(mV) | Sb current | avg | peak | |
+3.30V | +3.14 | +3.30 | +3.47 | 50 | 0 | 8.0 | 10.0 |
+5.00VSB | +4.75 | +5.00 | +5.25 | 50 | 0.1 | 1.6 | 2.0 |
+5.00V | +4.75 | +5.00 | +5.25 | 50 | 0 | 6.0 | 8.0 |
+12.00V | +11.20 | 12.00 | +12.8 | 120 | 0 | 6.0 | 7.5 |
-12.00V | +10.80 | -12.00 | -13.20 | 120 | 0 | 0.1 | 0.15 |
OCP: output shut down when output current reaches the peak point.
Short-circuit protection:output shut down when short-circuit.

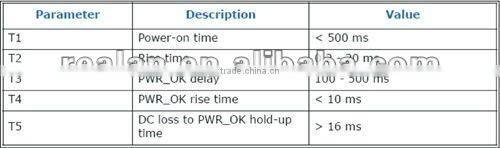

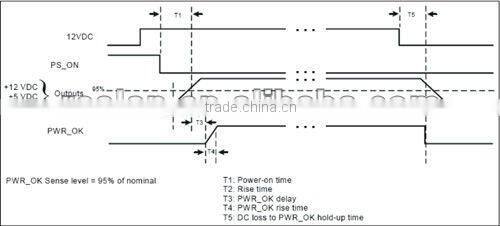

PSU timing sequence:
Environment description:
Working temperature/humidity 15°C to 35°C / 45%-75%
Reposition temperature//humidity -40°C to +70°C/ 10%-90%
Atmospheric pressure 86Kpa—106Kp
Other parameters:

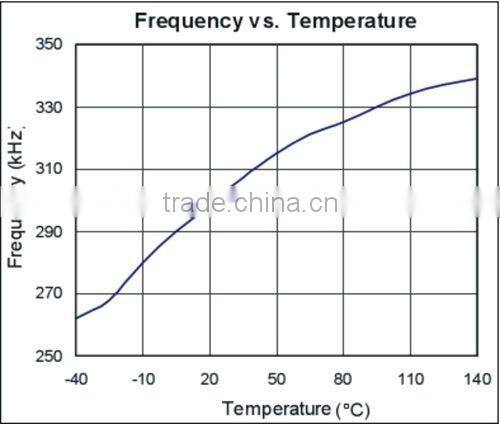

Working frequency:Icbuilt-in oscillator(250-350)kHz@Vcc=12V

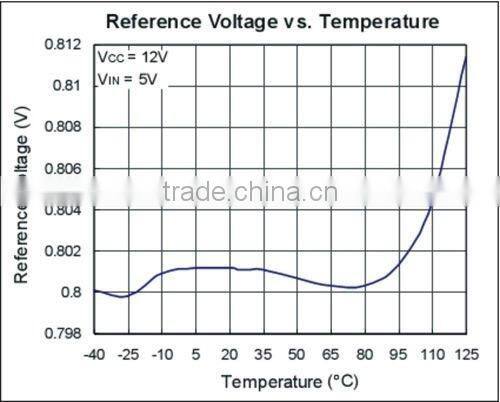

Feedback reference voltage:0.8V±2%@12VDC
Design drawing:

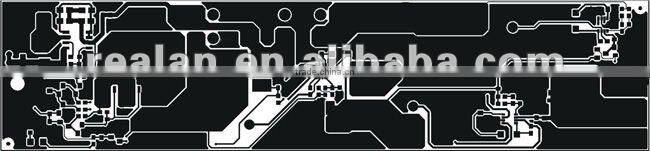

TOP

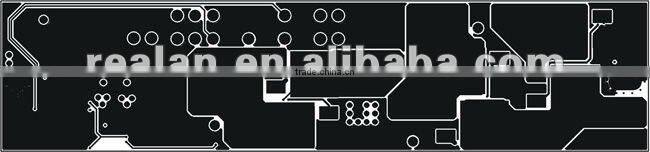

BOTTOM

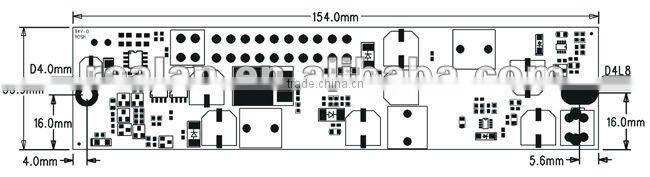

PRODUCT OUTLINE DRAWING
