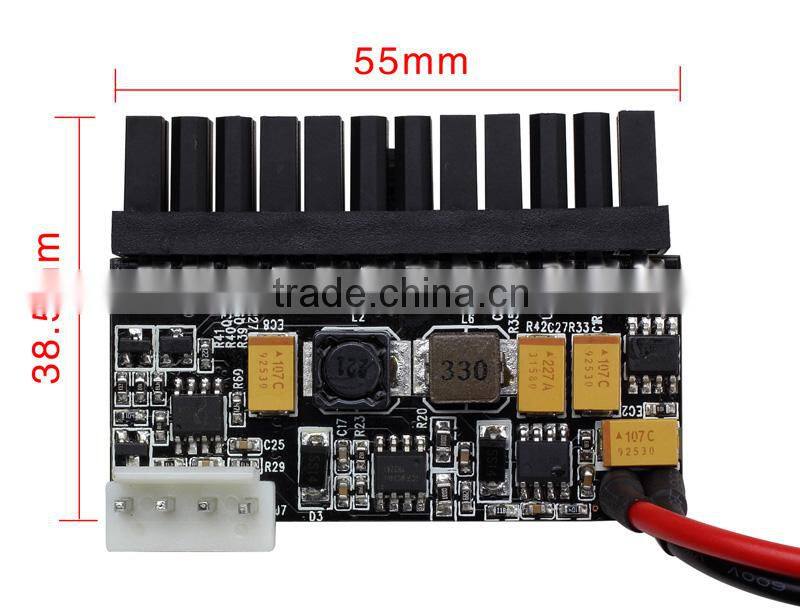

Realan LR1108-150W12VDC DC-DC Board Power Supply

FOB Price

US$ 12 - 15 / Piece

1 Piece(Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	e-mini
Model Number	LR1108-150W12VDC	Output Voltage	+3.3V, +5VSB, +5V, +12V, -12V
Output Power	150W, 150W	Output Current	6A, 2A, 6A, 8A, 0.15A

Product Description

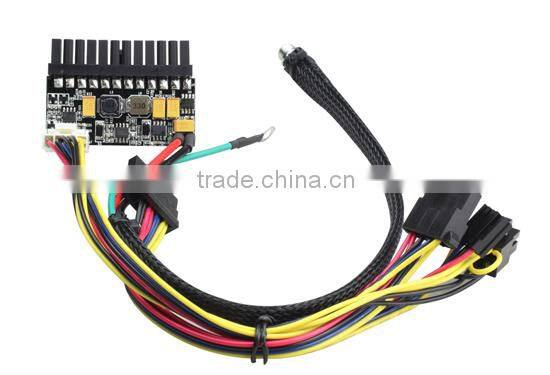

Realan LR1108-150W12VDC DC-DC Board Power Supply

Competitive Advantages:

1. Professional Mini ITX Case Manufacturer

2. OEM/ODM Services

Quick Look Specification: (For more details, please see below)

Item	Output voltage				Output current(A)
Item	min(V)	avg(V)	max(V)	ripple wave(mV)	Sb current	avg	peak
+3.30V	+3.14	+3.30	+3.47	50	0	5.0	6.0
+5.00VSB	+4.75	+5.00	+5.25	50	0.1	1.6	2.0
+5.00V	+4.75	+5.00	+5.25	50	0	5.0	6.0
+12.00V	+11.40	12.00	+12.6	120	0	6.0	8.0
-12.00V	-11.40	-12.00	-12.6	120	0	0.1	0.15

Why Realan:
We are a very professional manufacturer for mini computer cases and power supplies, with the rich experience for over 10 years of developing and producing pc cases. Determination achieves quality, Realan is always keeping the production philosophy that doing by heart, win to win, providing the higher products value cooperation. And our products have been exported to East Asia, Southeast Asia, Middle East, North America, South America, Europe, Africa, Australia and other countries.
Please don't hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.

Detailed Specification:

INPUT REQUIRED:

INPUT VOLTAGE RANGE: 11.4VDC—12.6VDC

INCOMING CURRENT RANGE: 12.0A Max 11.2VDC

INPUT SURGING CURRENT: 15.0Vmax 12VDC

WORK EFFICIENCY: ≥85%

OUTPUTREQUIRED: FIVE GROUPS OF POWER OUTPUT TESTING EMPHASIS

Item	Output voltage				Output current (A)
Item	min(V)	avg(V)	max(V)	ripplewave(mV)	Sb current	avg	peak
+3.30V	+3.14	+3.30	+3.47	50	0	5.0	6.0
+5.00VSB	+4.75	+5.00	+5.25	50	1.0	1.6	2.0
+5.00V	+4.75	+5.00	+5.25	50	0	5.0	6.0
+12.00V	+11.40	12.00	+12.6	120	0	6.0	8.0
-12.00V	-11.40	-12.00	-12.6	120	0	0.1	0.15

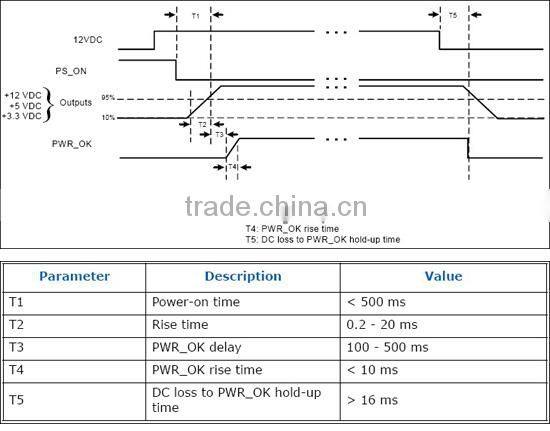

PSU timing sequence:

Environment description:

Working temperature/humidity 15 degree to 35 degree / 45%-75%

Reposition temperature//humidity -40 degree to +70 degree/ 10%-90%

Atmospheric pressure 86Kpa—106Kpa

Other parameters:

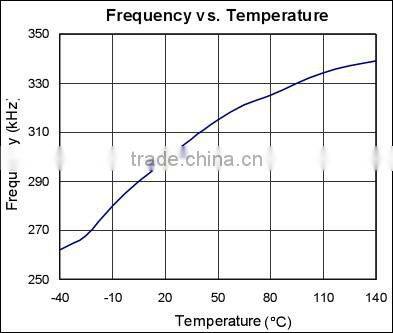

Working frequency:Icbuilt-in oscillator (250-350) kHz Vcc=12V

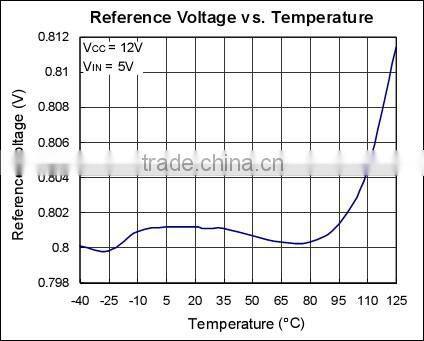

Feedback reference voltage: 0.8V±2% 12VDC
