Realan LR-E450Q newest mini itx case mini computer

FOB Price

Negotiable / Piece

50 Pieces(Min. Order)

Port Shekou Yantian
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Screen Size	Other, No Monitor
Processor Manufacture	Intel	Processor Type	Other, AMD-T56N
Processor Main Frequency	1.65G	Operating System	Other, XP, WIN7,WIN8
Place of Origin	Guangdong, China	Brand Name	e.mini
Model Number	LR-E450Q	Color	Black

Product Description

Specifications

2013 newest mini itx HTPC
1.super slim, easy to carry
2.low price, fashional design

Realan Mini PC LR-E450Q

Detailed Specification:

Case Model:	E-Q3H
Material:	Aluminum (Thickness 3.5mm)
CPU:	AMD-T56N processor(1.65G, 1066MHz external frequency, 1M second level cache, 13W consumption);

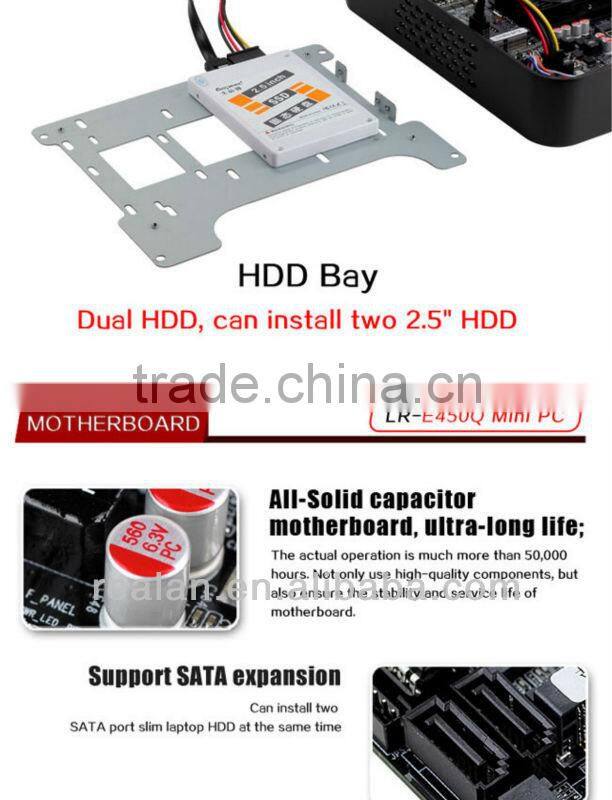

HDD:	Support 2*2.5"HDD and a Mini SSD (optional)
Display Card:	AMD HD6320
WIFI:	Optional (2*wifi holes)
Power Supply:	LR120500 12V5A
Dimension:	20044225
Application:	Home theatre, office work, games...
Color:	Black

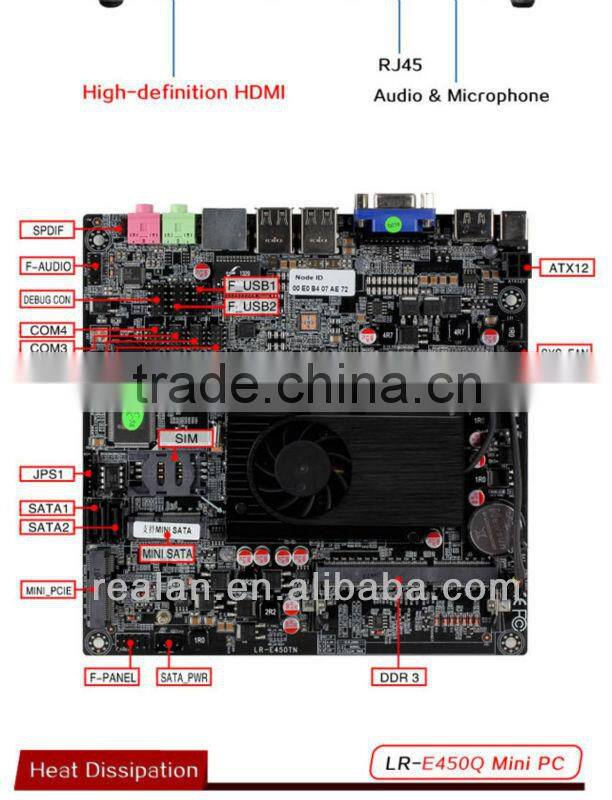

Motherboard Specification
Model	• LR-E450TN	Graphic Display	• AMD HD6320
CPU	• AMD-T56N processor(1.65G, 1066MHzexternal frequency, 1M second level cache, 13W consumption)	Expansion Slot	• 1*SIM
CPU		MINI_PCIE	• 2
Chipset	• I/O chipset A55E	Serial ATA	• 2*SATA
Memory	• 1*SO-DIMM DDR3 1333MHz	LAN	• 1* Realtek 8111E,10/100/1000M ethernet controller
Memory	• Support 8GB memory	Sound Chip	• ALC662 2/4/5.1channel output

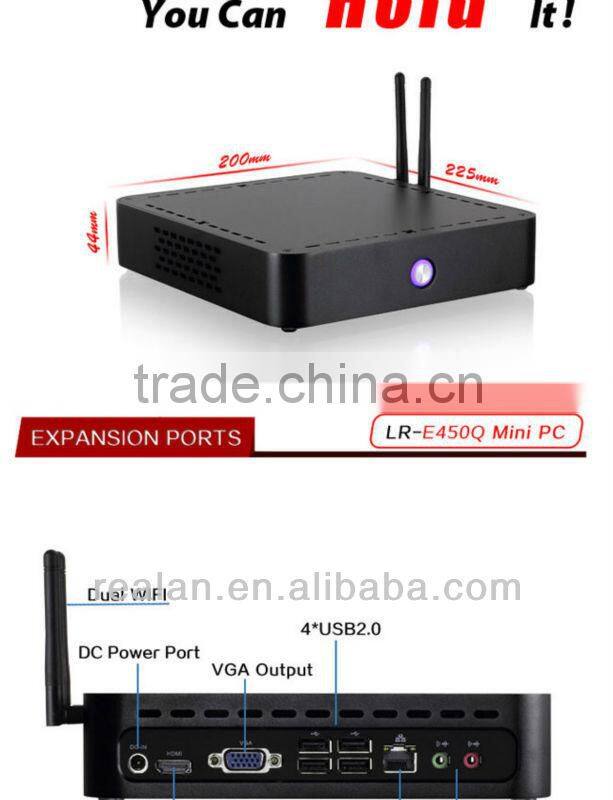

Front I/O Interface	• 2 sets of USB pin, for 4USB2.0; • 2 fan connectors, for CPU fan and system fan; • 1 Audio pin; • 4COM pin; • 1 12PIN VGA; • 1 * 7PIN PS2; • 1LVDS pin (optional); • 1HDMI pin (optional)	Rear I/O Interface	• 4* USB2.0 • 1* VGA • 1* 12V DC input • 1* HDMI • 1* LAN • 1* audio


		System Monitoring and Management	• Wake On LAN • System power management • Thermal & voltage management • Fan speed monitoring


BIOS	• 4/8Mbit flash memory	Working Environment Humidity	0% ~ 95% (relative humidity, non-condensing)
BIOS	• 4/8Mbit flash memory	Type	• MINI-ITX (4*PCB) • 170mm x 170mm x 20mm
O/S	Windows XP, Windows 2000,Linux, Win CE, Windows 7, Windows 8	Type	• MINI-ITX (4*PCB) • 170mm x 170mm x 20mm
Operating Temperature	0°C ~ 50°C	Special Performance	without

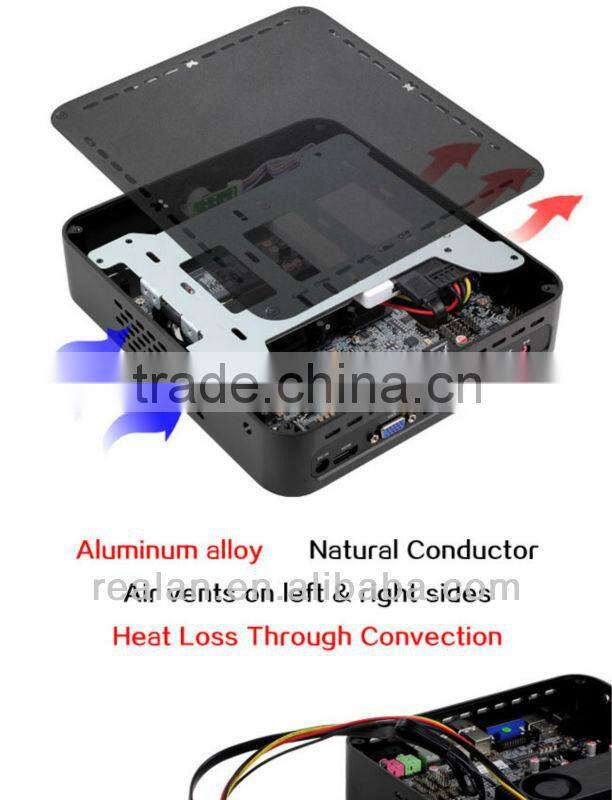

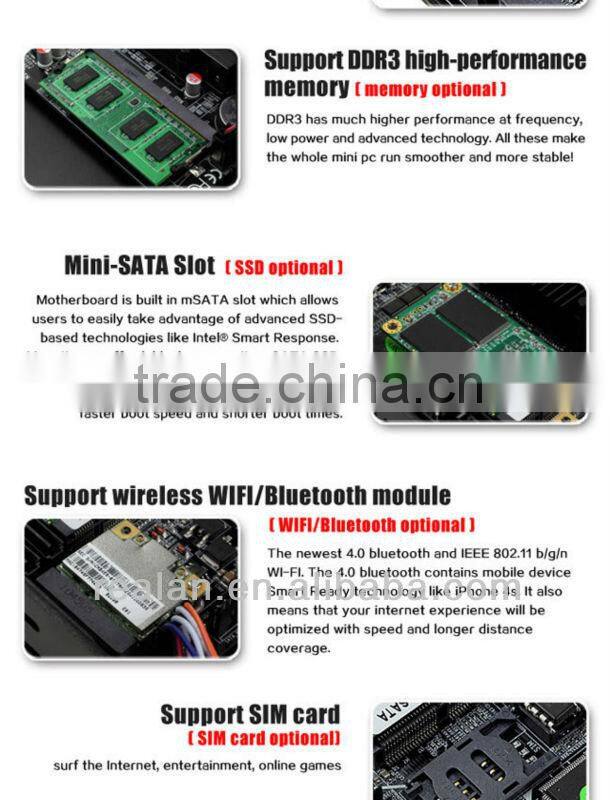

Picutures Showing:

Why Realan:

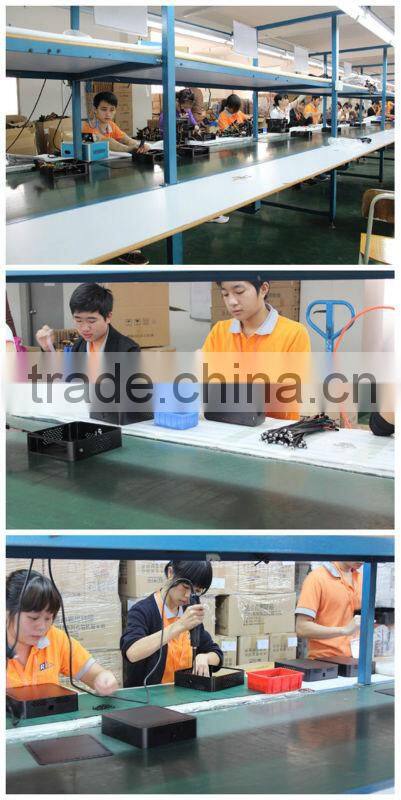

We are a very professional manufacturer for mini computer cases and power supplies, with the rich experience for over 10 years of developing and producing pc cases. Determination achieves quality, Realan is always keeping the production philosophy that doing by heart, win to win, providing the higher products value cooperation. And our products have been exported to East Asia, Southeast Asia, Middle East, North America, South America, Europe, Africa, Australia and other countries.

Please don't hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.

Products Lines:

Contact Us

Shenzhen Realan Computer Products Co., Ltd.: Contact nameEllie Hou
Chat Now; Phone86-755-26996161-823; Address4-5th floor, Bldg. 53, Block B of Tong Long industrial zone, Taoyuan Sub-district,Nanshan District,Shenzhen 518055,China, Shenzhen, Guangdong
