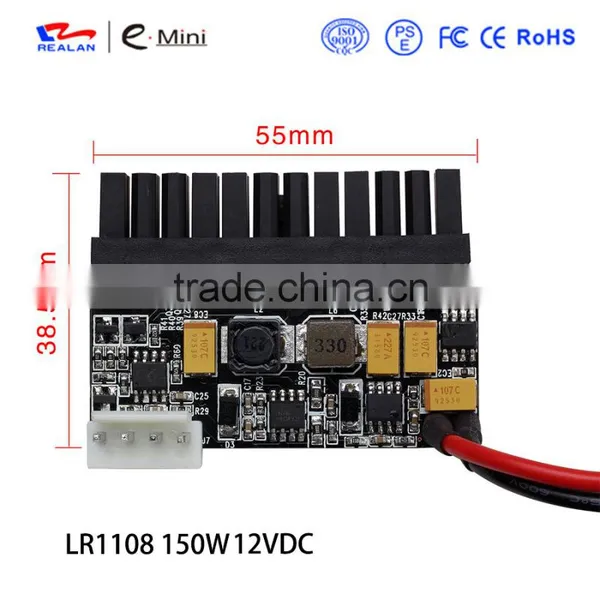

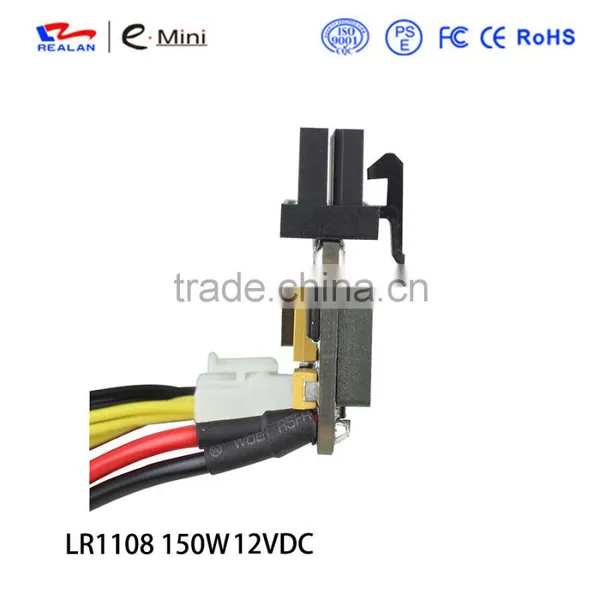

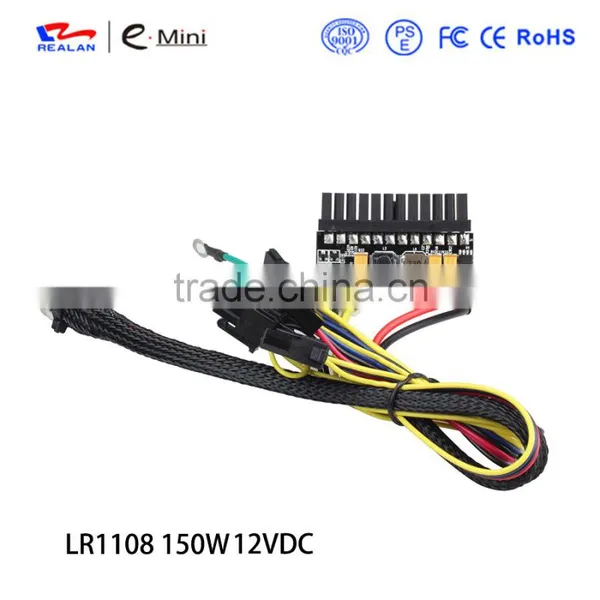

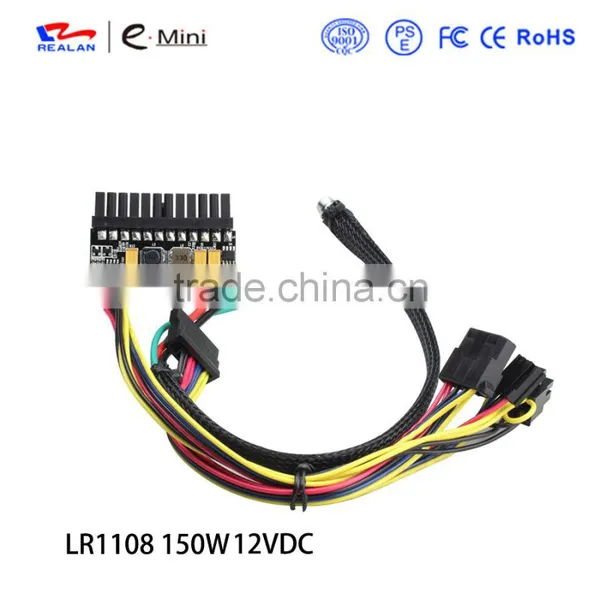

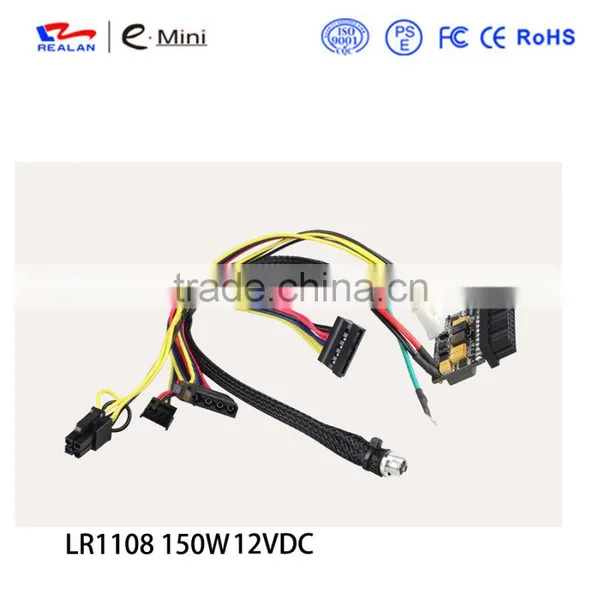

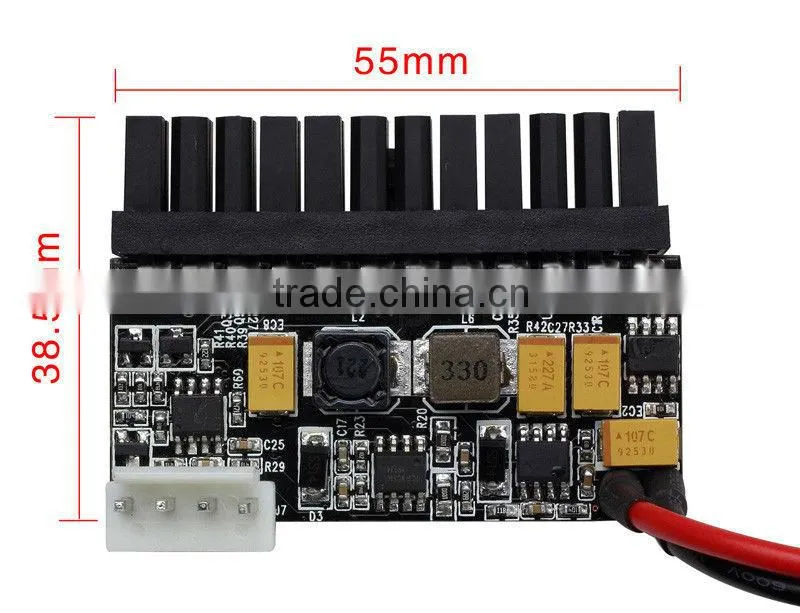

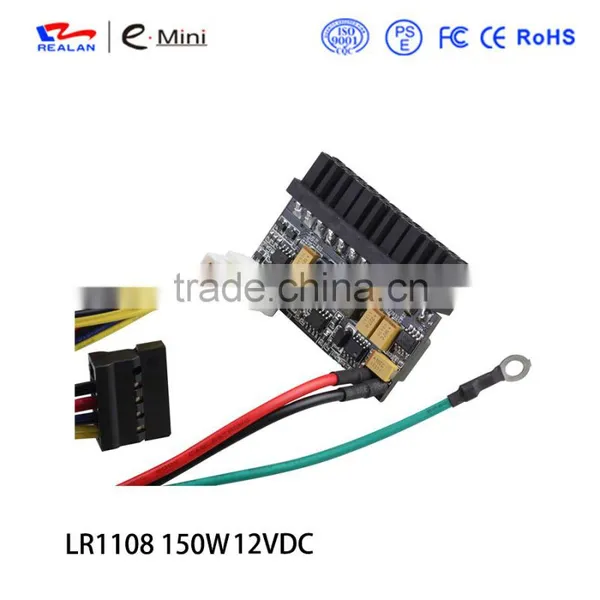

LR1108 150W Mini Plug Type/DC-DC Power
US$ 12 - 15
/ Piece
100 Pieces(Min. Order)
- shenzhen
- T/T D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Realan | |
| Model Number | LR1108 150W Mini Plug Type |
Product Description
Realan LR1108 150W Mini Plug Type
INPUT REQUIRED:
INPUT VOLTAGE RANGE:11.4VDC—12.6VDC
INCOMING CURRENT RANGE:12.0A Max @11.2VDC
INPUT SURGING CURRENT:12.0Vmax@12VDC
WORK EFFICIENCY:≥85%
OUTPUT REQUIRED:
FIVE GROUPS OF POWER OUTPUT
Item | Output voltage | Output current(A) | |||||
min(V) | avg(V) | max(V) | ripplewave(mV) | Sb current | avg | peak | |
+3.30V | +3.14 | +3.30 | +3.47 | 50 | 0 | 6.0 | 6.0 |
+5.00VSB | +4.75 | +5.00 | +5.25 | 50 | 1.0 | 1.6 | 2.0 |
+5.00V | +4.75 | +5.00 | +5.25 | 50 | 0 | 5.0 | 6.0 |
+12.00V | +11.40 | 12.00 | +12.6 | 120 | 0 | 4.0 | 8.0 |
-12.00V | -11.40 | -12.00 | -12.6 | 120 | 0 | 0.1 | 0.15 |

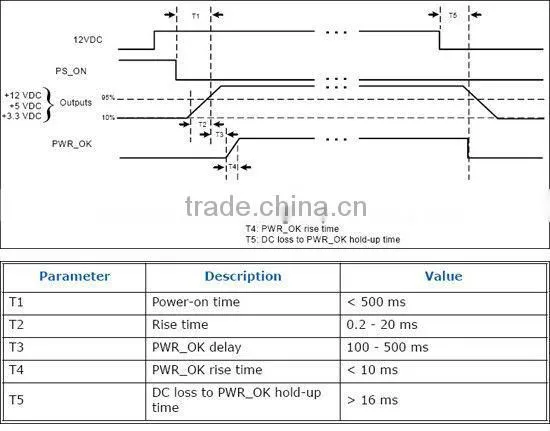

PSU timing sequence:
Environment description:
Working temperature/humidity 15°C to 35°C / 45%-75%
Reposition temperature//humidity -40°C to +70°C/ 10%-90%
Atmospheric pressure 86Kpa—106Kpa
Other parameters:
Working frequency:Icbuilt-in oscillator(250-350)kHz@Vcc=12V

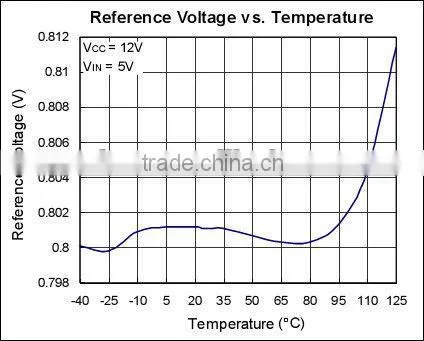

Feedback reference voltage:0.8V±2%@12VDC
