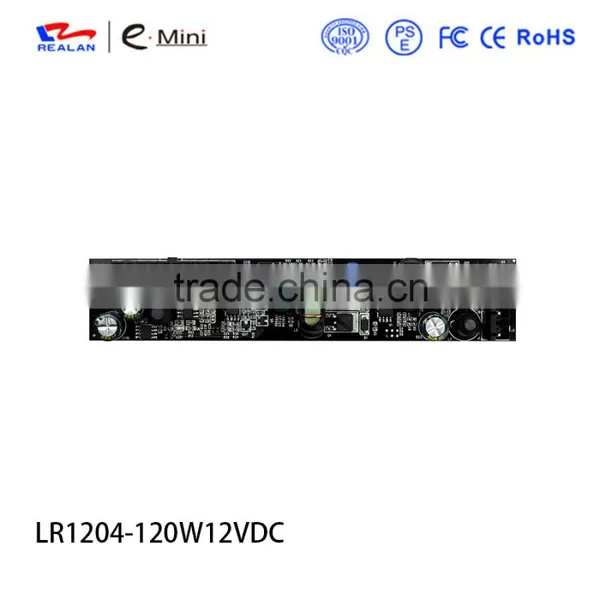

Help CenterRealan LR1204-120W12VDC Mini Itx Power Supply
Related Products
-
Realan LR1106-250W12VDCX2 Computer SuppliesUS$ 12 - 15MOQ: 1 Piece -
Realan LR1204-120W12VDC Mini Interruptible Power SupplyUS$ 8 - 15MOQ: 100 Pieces
-
Realan LR1204-120W12VDC-Q Mini Itx PowerUS$ 12 - 15MOQ: 1 Piece
-
Realan LR1010-180W 19VDC Mini Itx PowerUS$ 10 - 15MOQ: 100 Pieces
-
Realan DC-DC Board Power Supply LR1007-120W12VDC-Q Mini PC Desktop Power SupplyUS$ 12 - 15MOQ: 50 Pieces

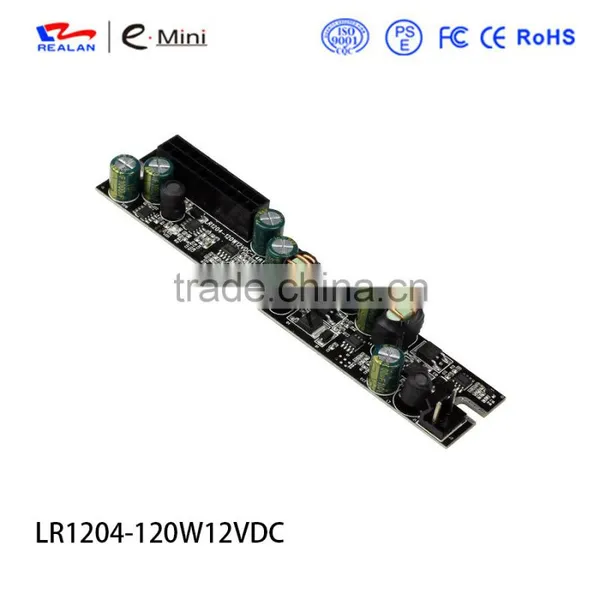

Realan Mini ITX Power LR1204-120W12VDC
INPUT REQUIRED:
INPUT VOLTAGE RANGE:11.4VDC—12.6VDC
INCOMING CURRENT RANGE:12.0A Max @11.2VDC
INPUT SURGING CURRENT:12.0Vmax@12VDC
WORK EFFICIENCY:≥85%
OUTPUT REQUIRED:
FIVE GROUPS OF POWER OUTPUT
Item |
Output voltage |
Output current(A) |
|||||
min(V) |
avg(V) |
max(V) |
ripplewave(mV) |
Sb current |
avg |
peak |
|
+3.30V |
+3.14 |
+3.30 |
+3.47 |
50 |
0 |
6.0 |
8.0 |
+5.00VSB |
+4.75 |
+5.00 |
+5.25 |
50 |
1.0 |
1.6 |
2.0 |
+5.00V |
+4.75 |
+5.00 |
+5.25 |
50 |
0 |
6.0 |
8.0 |
+12.00V |
+11.20 |
12.00 |
+12.8 |
120 |
0 |
4.0 |
4.5 |
-12.00V |
+10.80 |
-12.00 |
-13.20 |
120 |
0 |
0.1 |
0.15 |
OCP: output shut down when output current reaches the peak point.
Short-circuit protection:output shut down when short-circuit.
PSU timing sequence:
Environment description:
Working temperature/humidity 15°C to 35°C / 45%-75%
Reposition temperature//humidity -40°C to +70°C/ 10%-90%
Atmospheric pressure 86Kpa—106Kp
Other parameters:
Working frequency:Icbuilt-in oscillator(250-350)kHz@Vcc=12V

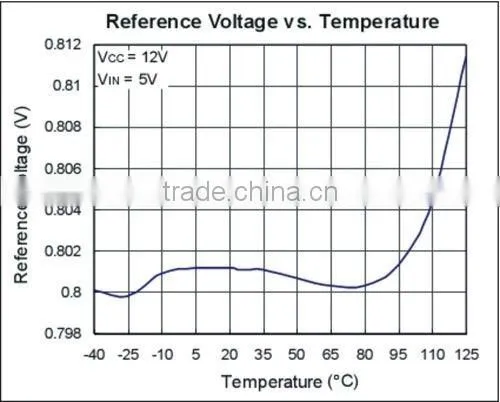

Feedback reference voltage:0.8V±2%@12VDC
Design drawing:

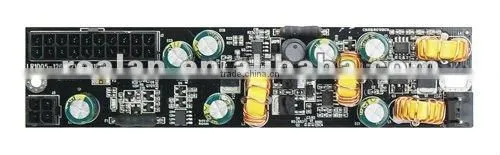

TOP

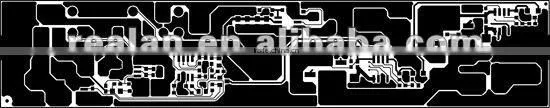

BOTTOM

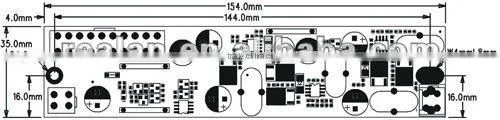

PRODUCT OUTLINE DRAWING

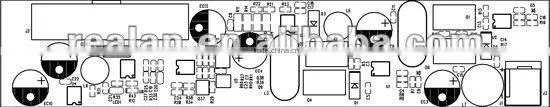

SILKSCREEN TOP

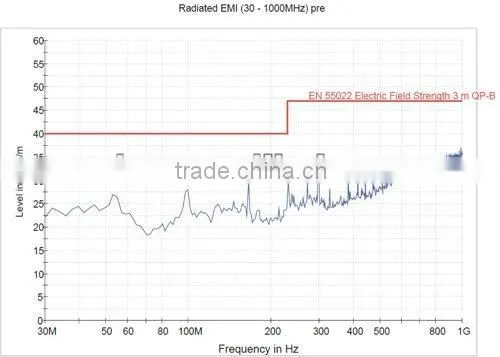

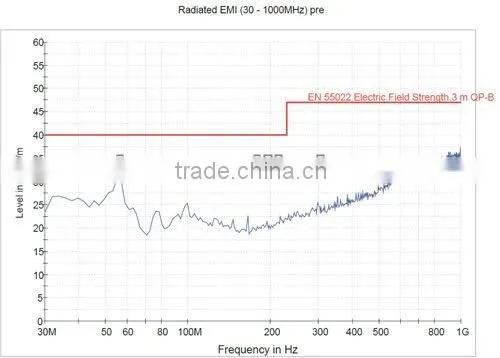

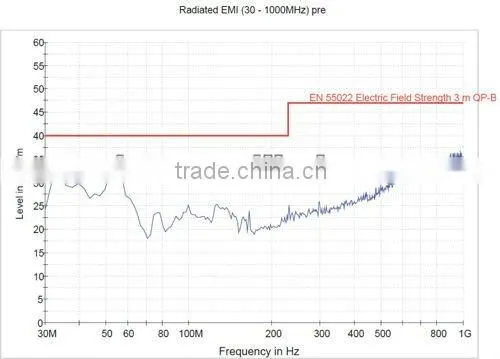

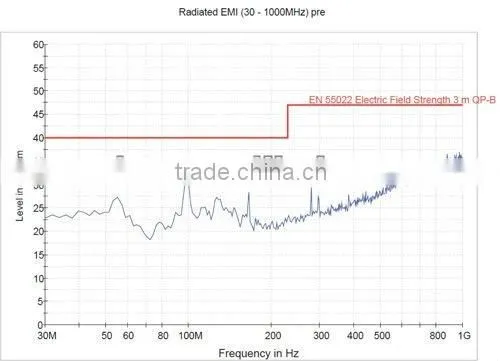

EMI test data:
